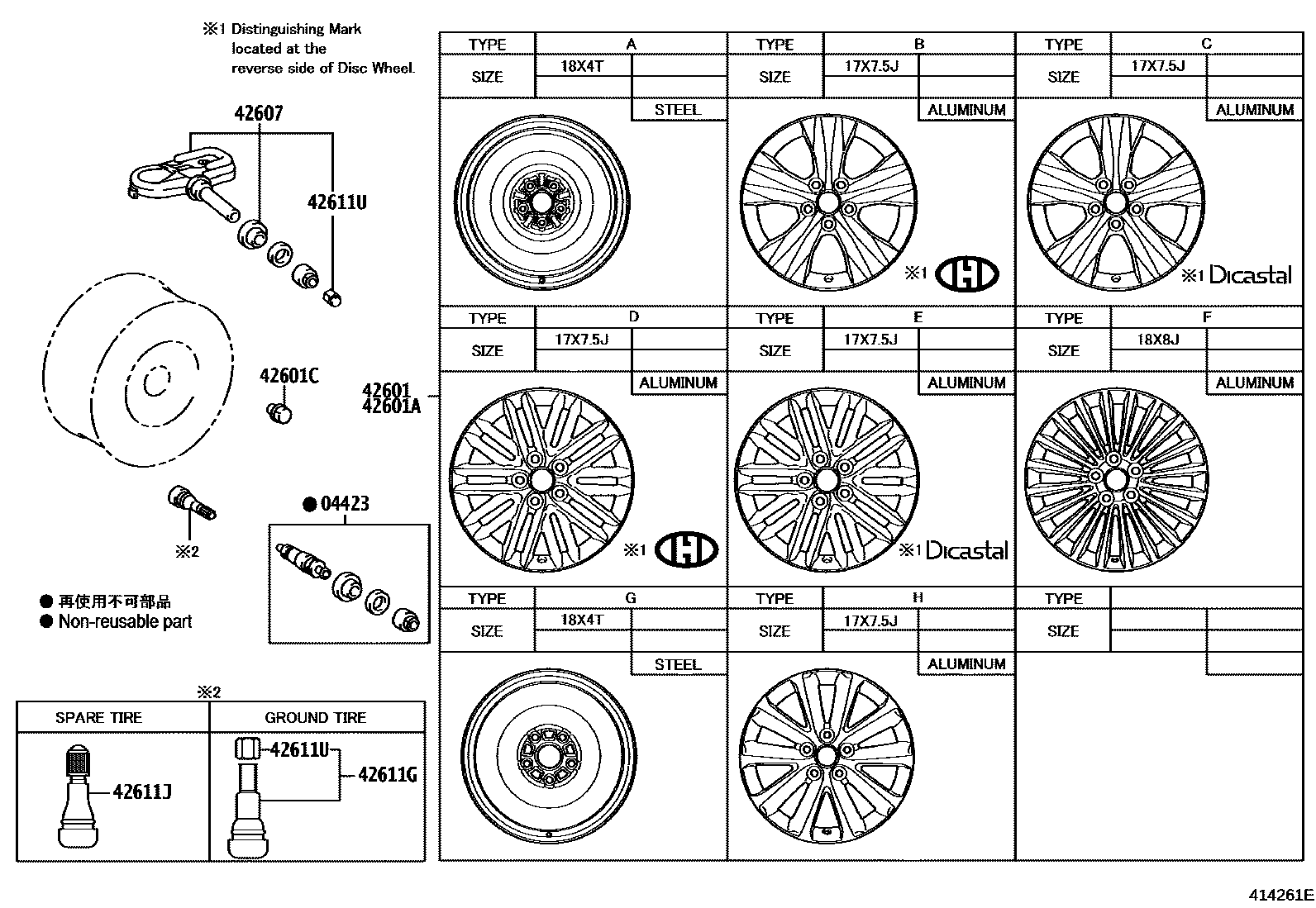

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1WHEEL HUB ORNAMENT 0003 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010×4iARS212,GRS218..Q,S,U201603-201712

main04423-33060×4iARS212,GRS218..Q,S,U201501-201603

42601WHEEL, DISC

main42611-0N080×4iARS212..P,Q,U201712

18X8J, #,TYPE F:REFER ILLUST.

main42611-0N130×4iARS212..S201712

17X7.5J, #,TYPE H:REFER ILLUST.

main4261A-0N010×4iARS212,GRS218..B,S201501-201712

17X7.5J, #,TYPE B:REFER ILLUST.

main4261A-0N020×4iARS212..B201712-201910

17X7.5J, #,TYPE C:REFER ILLUST.

main4261A-0N030×4iARS212,GRS218..Q201501-201712

17X7.5J, #,TYPE D:REFER ILLUST.

main4261A-0N040×4iARS212,GRS218..Q201501-201712

17X7.5J, #,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0N110iARS212201712-201909

18X4T,TYPE G:REFER ILLUST.

main42611-0N111iARS212..B201909-201910

18X4T,TYPE G:REFER ILLUST.

main42611-30F30iARS212,GRS218201501-201612

18X4T,TYPE A:REFER ILLUST.

main42611-30F31iARS212,GRS218201701-201712

18X4T,TYPE A:REFER ILLUST.

main42611-30F32iARS212..B201909-201910

18X4T,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001×20iARS212..B201712-201910

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-0R020×4iARS212,GRS218..Q,S,U201510-201712

main42607-0R021×4iARS212..P,Q,S,U201904

main42607-33040×4iARS212,GRS218..Q,S,U201501-201509

sub42607-52020

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4iARS212..B201712-201910

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iARS212,GRS218201501-201712

42611UCAP, TIRE VALVE

main90942-05029×4iARS212,GRS218..B201501-201712

WITHOUT(TIRE PRESSURE MONITORING SYSTEM)

main90942-05039×4iARS212,GRS218..Q,S,U201501-201509

main90942-C5001×4iARS212,GRS218..Q,S,U201510-201712

8 parts on this diagram · 3 diagrams in section
