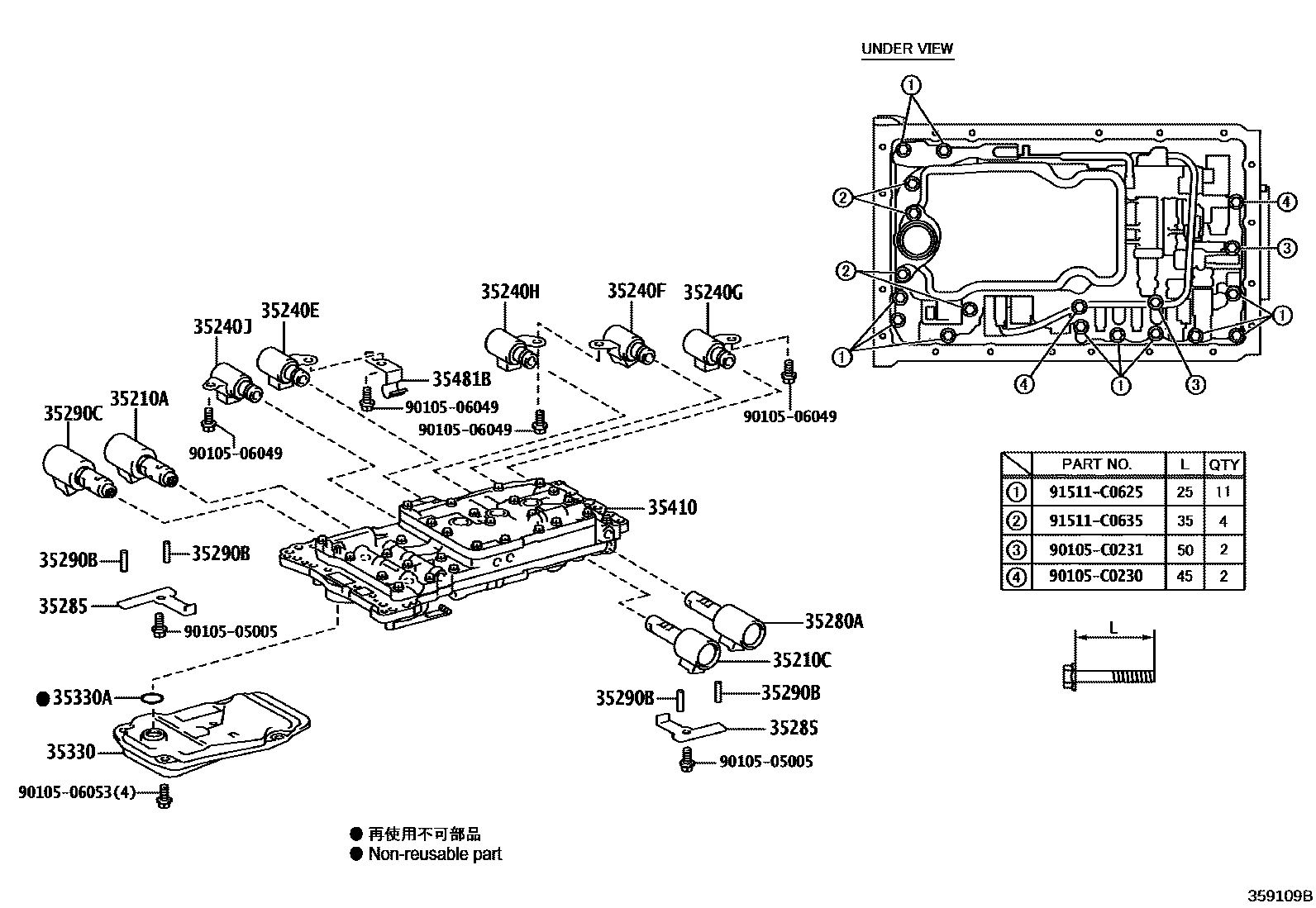

VALVE BODY & OIL STRAINER (ATM)

0001 1A960E 0002 1A960E 0003 1A960E 0004 1AA81E 0005 1AA81E

35210AVALVE, SOLENOID(SL1)

main35210-50010iGRS218201501-201712

main35210-71010iARS212201508-201910

35210CVALVE, SOLENOID(SL2)

main35210-50010iGRS218201501-201712

main35210-71010iARS212201508-201910

35240EVALVE, SOLENOID(S1)

main35240-50030iGRS218201501-201712

35240FVALVE, SOLENOID(S2)

main35240-50040iGRS218201501-201712

35240GVALVE, SOLENOID(S3)

main35240-50030iGRS218201501-201712

35240HVALVE, SOLENOID(S4)

main35240-50050iGRS218201501-201712

35240JVALVE, SOLENOID(SR)

main35240-50060iGRS218201501-201712

35280AVALVE, SOLENOID(SLU)

main35280-30050iGRS218201501-201712

main35280-71010iARS212201508-201910

sub35280-71020

35285PLATE, SOLENOID LOCK

main35285-50020iGRS218201501-201712

main35285-53010iARS212..B201508-201910

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045iGRS218201501-201712

35290CVALVE, SOLENOID(SLT)

main35290-34010iGRS218201501-201712

main35290-71020iARS212..P,Q,S,U201508-201910

35330STRAINER ASSY, VALVE BODY OIL

main35330-0N010iGRS218201501-201609

sub35330-30090

main35330-30090iGRS218201609-201712

main35330-53020iARS212..B201508-201910

35330ARING, O (FOR OIL STRAINER)

main90301-31014iARS212201508-201910

main90301-C0021iGRS218201501-201609

sub90301-31014

35410BODY ASSY, TRANSMISSION VALVE

main35410-0P011iGRS218201501-201609

sub35410-22781

main35410-22781iGRS218201609-201712

main35410-53071iARS212..B201508-201910

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50040iGRS218201501-201712

main35481-50050iARS212201508-201902

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

90105C0230

main90105-C0230

90105C0231

main90105-C0231

91511C0625

main91511-C0625

91511C0635

main91511-C0635

22 parts on this diagram · 5 diagrams in section
