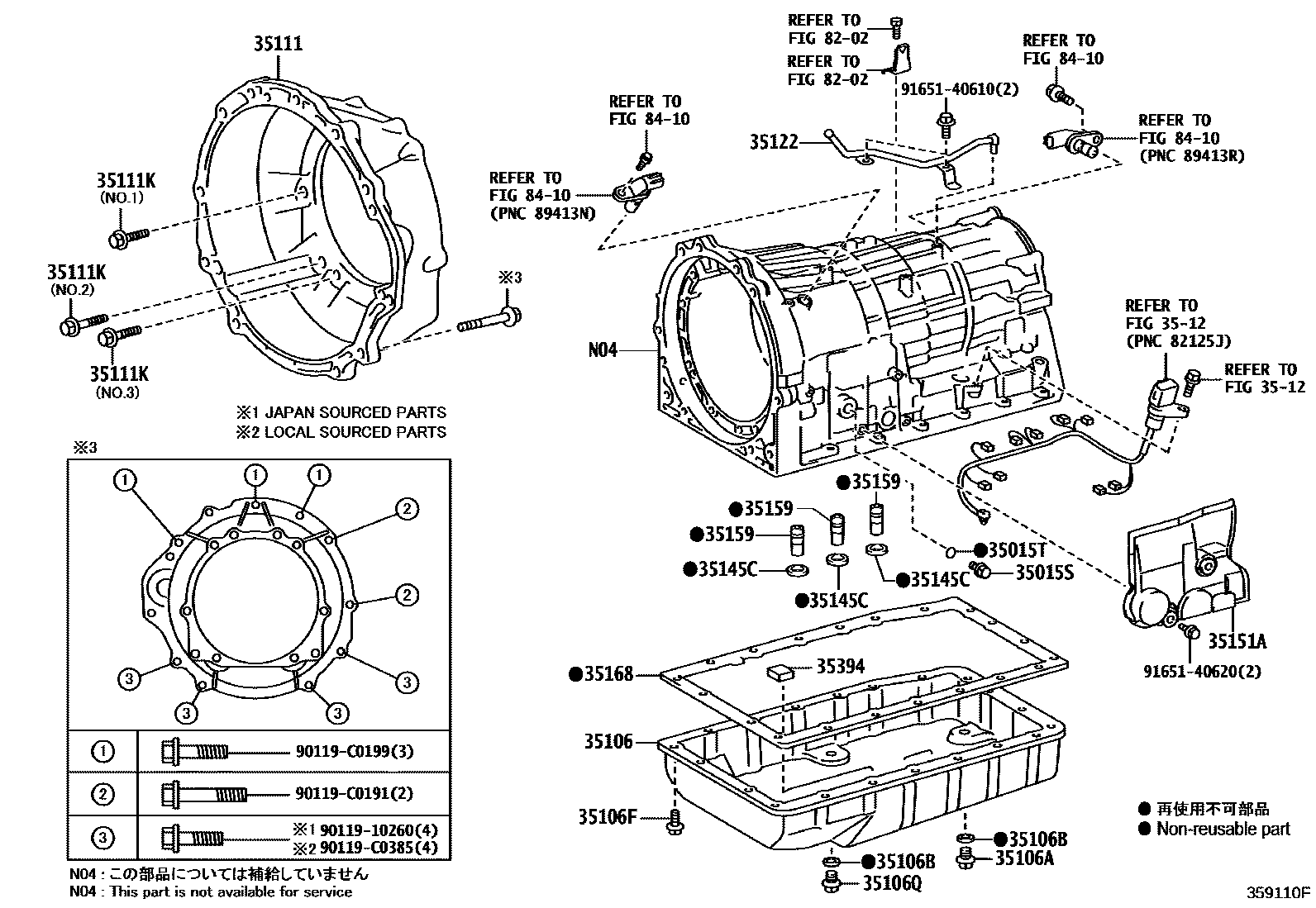

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A960E 0002 1A960E 0003 1AA81E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iARS212..P,Q,S,U201712

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iARS212..B201712-201910

main90301-C0010iGRS218201501-201609

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0P010iGRS218201501-201609

sub35106-22120

main35106-30270iGRS218201609-201712

main35106-30310iARS212..B201712-201910

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRS218201501-201712

main90341-10021iARS212..B201712-201910

NO.2:REFER ILLUST.

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iARS212..P,Q,S,U201712

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRS218201501-201712

main90119-06982×9iARS212201508-201712

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRS218201501-201712

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0P010iGRS218201501-201609

main35111-22110iGRS218201609-201712

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRS218201501-201712

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-10947×2iGRS218201501-201712

*10-1.50PX35-29.3,NO.3:REFER ILLUST.

main90119-12378×2iGRS218201501-201712

*12-1.75PX38-30,NO.2:REFER ILLUST.

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03181iGRS218201501-201712

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRS218201501-201609

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRS218201501-201712

35159GASKET, BRAKE DRUM

main35159-60010×3iGRS218201501-201609

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRS218201501-201712

main35168-50010iARS212..P,Q,S,U201712

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-0P010×3iGRS218201501-201609

main35394-30011×3iGRS218201609-201712

main35394-48010×6iARS212..B201712-201910

8202

8410

9011910260

main90119-10260

90119C0191

main90119-C0191

90119C0199

main90119-C0199

90119C0385

main90119-C0385

9165140610

main91651-40610

9165140620

main91651-40620

24 parts on this diagram · 3 diagrams in section
