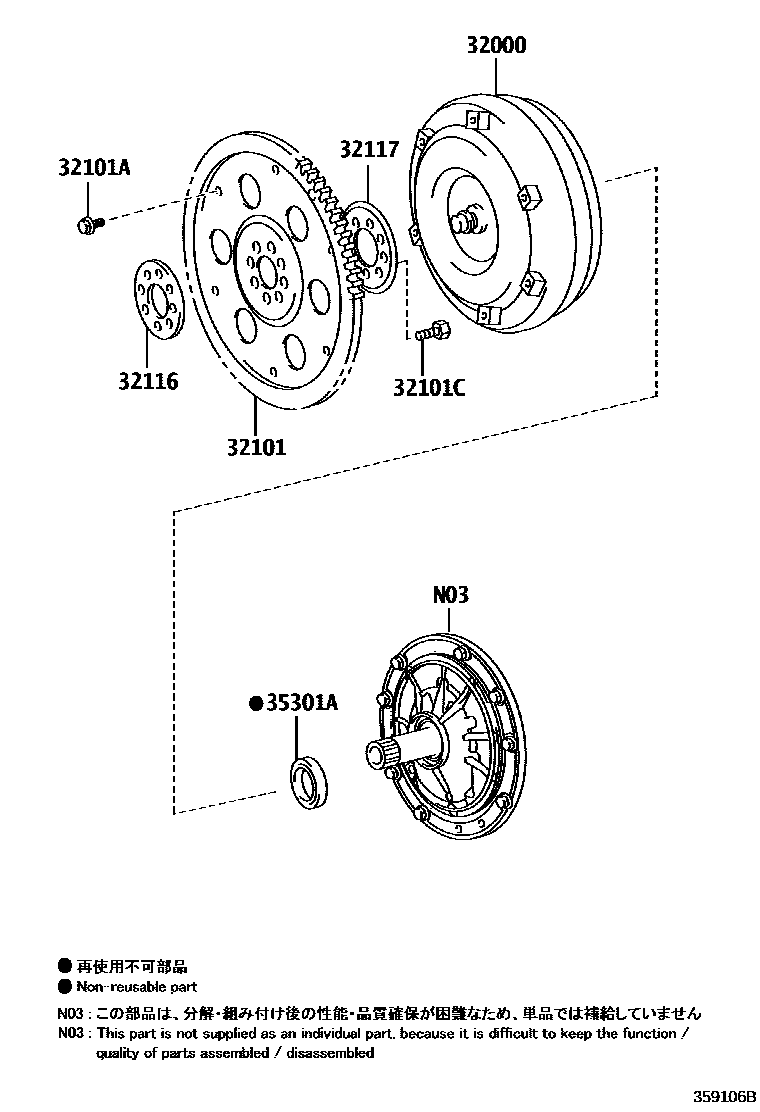

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A960E 0002 1AA81E

32000CONVERTER ASSY, TORQUE

main32000-0P010iGRS218201501-201609

sub32000-30400

main32000-30400iGRS218201609-201712

main32000-30470iARS212..B201802-201910

sub32000-30480

main32000-53020iARS212201508-201802

sub32000-30470

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0P010iGRS218201501-201712

main32101-30100iARS212201508-201910

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iARS212,GRS218201501-201910

*9-1.25PX11-8,BLACK

main90105-09006iARS212..B201501-201910

*9-1.25PX11-8.5,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGRS218201501-201712

*10-1.25PX18-13

main90105-12384iARS212201508-201910

*12-1.25PX21-15

32116SPACER, DRIVE PLATE, FRONT

main32116-0P010iGRS218201501-201712

main32116-20050iARS212..B201508-201910

32117SPACER, DRIVE PLATE, REAR

main32117-0P010iGRS218201501-201712

main32117-20060iARS212201508-201910

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-53010iARS212..P,Q,S,U201508-201910

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iGRS218201501-201609

(J)

main90311-38083iARS212201508-201910

main90311-C0018iGRS218201501-201609

(L)

sub90311-38083

8 parts on this diagram · 2 diagrams in section
