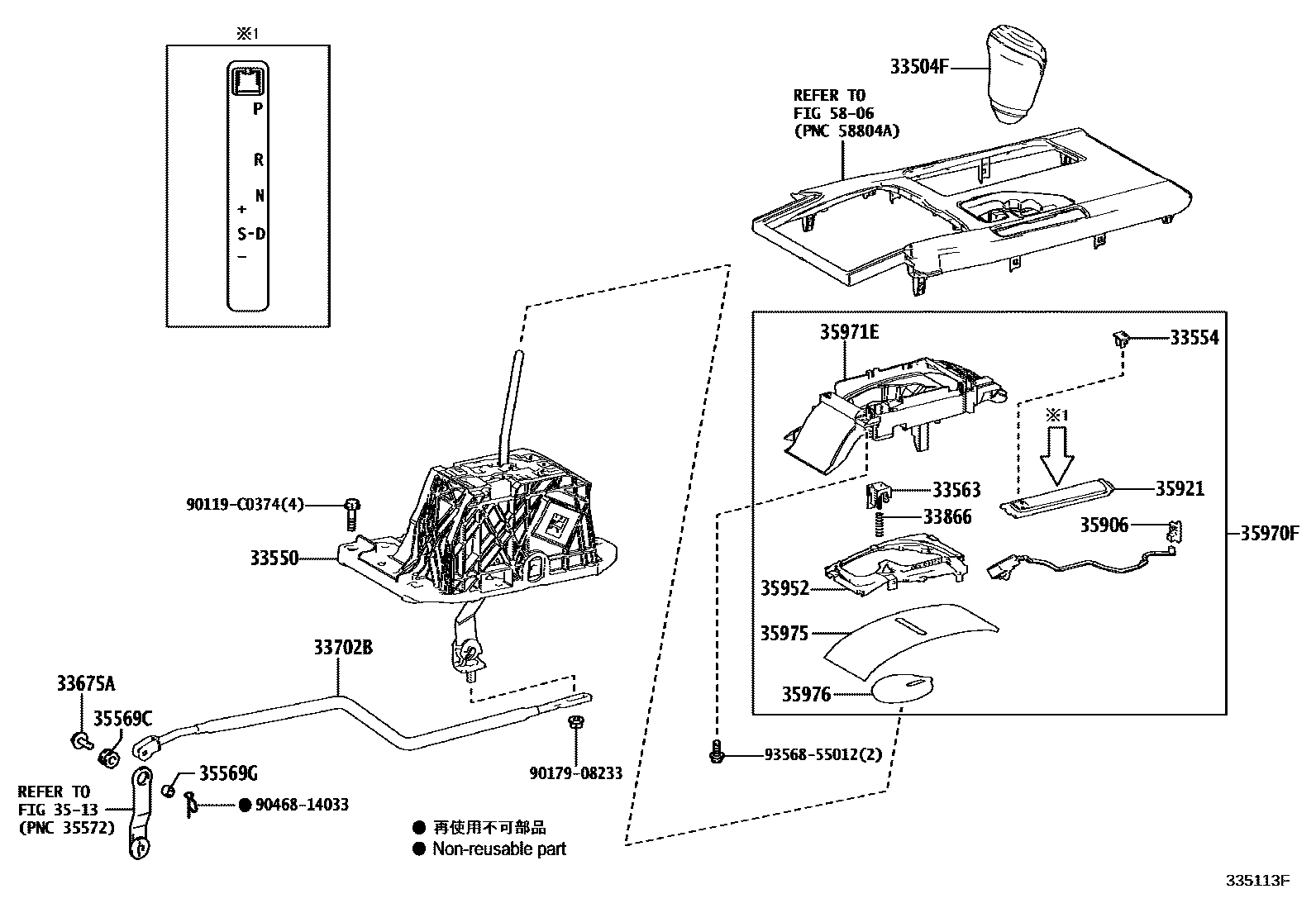

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK BIRDSEYE,TRIM2#
BLACK BIRDSEYE,TRIM2#,3#
BROWN&BLACK,TRIM0#
BROWN BIRDSEYE,TRIM0#
33550FLOOR SHIFT ASSY, TRANSMISSION
33554CAP, SHIFT LEVER
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33866SPRING, SHIFT LOCK RELEASE
3513
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35952LENS, POSITION INDICATOR
35970FHOUSING ASSY, POSITION INDICATOR
35971EHOUSING, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
5806
90119C0374
main90119-C0374
9017908233
main90179-08233
9046814033
main90468-14033
9356855012
main93568-55012
22 parts on this diagram · 2 diagrams in section
