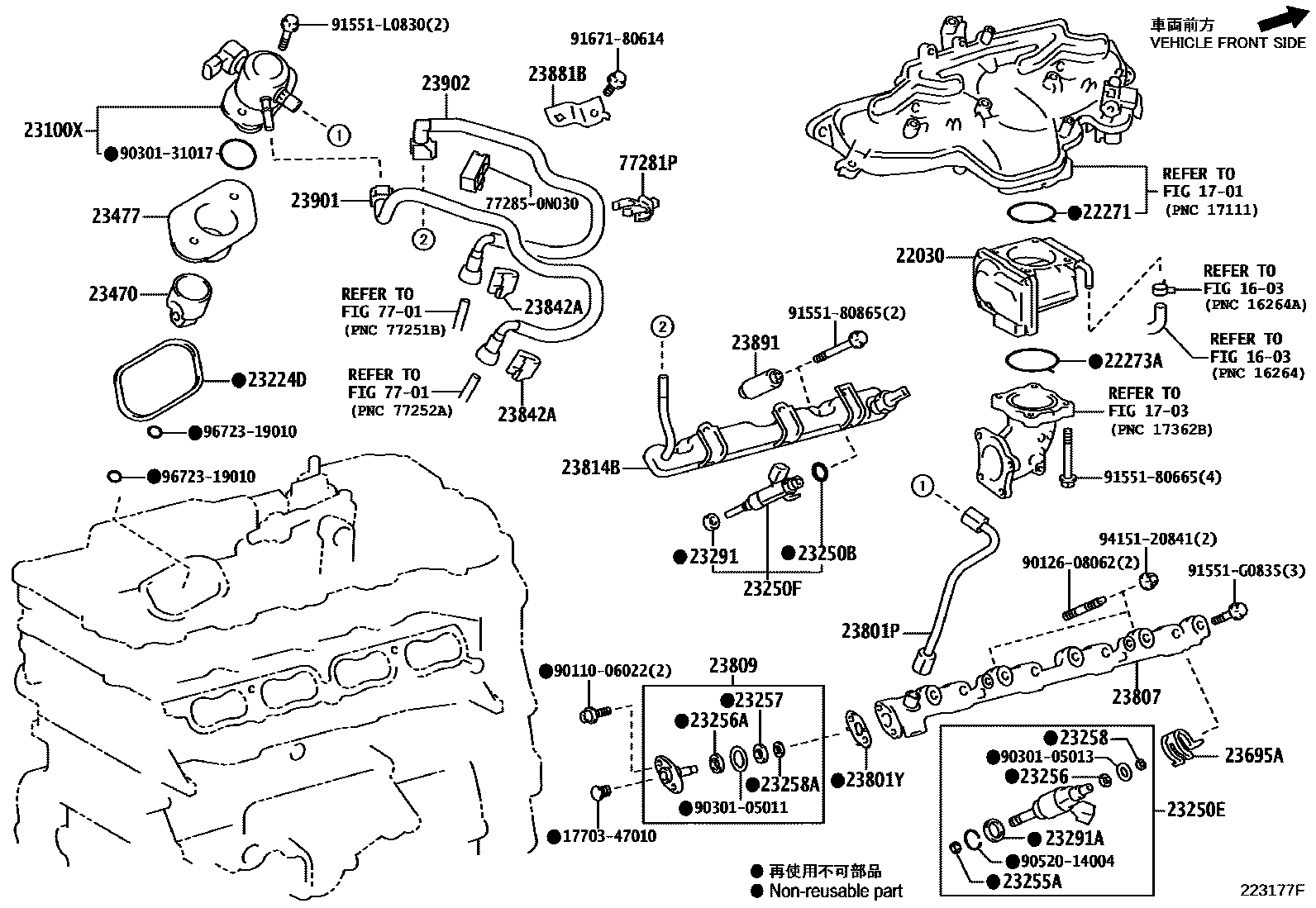

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1701

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P040i5GRFE..GRS218201501

main22030-36050i8ARFTS..ARS212201508-201910

22271GASKET, THROTTLE BODY

main22271-31030i5GRFE..GRS218201501

main22271-36040i8ARFTS..ARS212201508-201910

22273AGASKET, THROTTLE BODY, NO.2

main22271-36040i8ARFTS..ARS212201508-201910

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-36080i8ARFTS..ARS212..P,Q,S,U201508-201910

sub23101-36090

23224DGASKET, FUEL PUMP SPACER

main23224-36020i8ARFTS..ARS212..P,Q,S,U201508-201910

23250INJECTOR ASSY, FUEL

main23209-0P060i5GRFE..GRS218201501

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i5GRFE..GRS218201501

main90301-07037i8ARFTS..ARS212..B201908-201910

(J)

main90301-07037i8ARFTS..ARS212201508-201908

main90301-C0072i8ARFTS..ARS212..P,Q,S,U201908-201910

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-36030-01i8ARFTS..ARS212..P,Q,S,U201508-201910

MARK 1,REFER REPAIR MANUAL

main23209-36030-02i8ARFTS..ARS212..P,Q,S,U201508-201910

MARK 2,REFER REPAIR MANUAL

main23209-36030-03i8ARFTS..ARS212201508-201910

MARK 3,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-39275i8ARFTS..ARS212201508-201910

23255ASEAL, FUEL INJECTOR

main23255-31020i8ARFTS..ARS212201508-201901

main23255-31030i8ARFTS..ARS212..B201902-201910

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010i8ARFTS..ARS212..B201902-201910

main23256-31010i8ARFTS..ARS212201508-201901

23256ARING, FUEL PIPE, NO.1

main23256-31010i8ARFTS..ARS212201508-201910

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-47010i8ARFTS..ARS212201508-201910

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-36010i8ARFTS..ARS212201508-201910

23258ARING, FUEL PIPE, NO.3

main23258-31010i8ARFTS..ARS212..B201508-201910

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020i5GRFE..GRS218201501

main23291-28020i8ARFTS..ARS212..P,Q,S,U201508-201910

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020i8ARFTS..ARS212201508-201910

23470LIFTER ASSY, FUEL PUMP

main23470-36020i8ARFTS..ARS212201508-201910

23477GUIDE, FUEL PUMP LIFTER

main23477-36020i8ARFTS..ARS212201508-201910

23695ACLAMP, NOZZLE HOLDER

main23695-31020i8ARFTS..ARS212201508-201910

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-36031i8ARFTS..ARS212201508-201712

23801YGASKET

main23893-47010i8ARFTS..ARS212201508-201712

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-36050i8ARFTS..ARS212201508-201712

sub23800-36020

sub23801-36110

main23807-31030i5GRFE..GRS218201501

23809SUPPORT SUB-ASSY, FUEL PIPE

main23809-36010i8ARFTS..ARS212201508-201712

23814BPIPE, FUEL DELIVERY

main23800-36030i8ARFTS..ARS212201508-201910

sub23800-36040

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0H030i8ARFTS..ARS212201508-201910

main23842-31020i5GRFE..GRS218201501

23881BBRACKET, FUEL HOSE

main23881-36090i8ARFTS..ARS212..P,Q,S,U201508-201910

23891SPACER, FUEL DELIVERY

main23891-36030i8ARFTS..ARS212201508-201910

23901TUBE SUB-ASSY, FUEL

main23901-0V170i8ARFTS..ARS212201508-201910

main23901-31170i5GRFE..GRS218201501

23902TUBE SUB-ASSY, FUEL

main23902-0V020i8ARFTS..ARS212201508-201910

7701

77281PCLAMP, FUEL HOSE

main77281-0N020iARS212201508-201910

1770347010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-47010

772850N030BRACKET, FUEL TUBE

main77285-0N030

9011006022

main90110-06022

9012608062

main90126-08062

9030105011

main90301-05011

9030105013

main90301-05013

9030131017

main90301-31017

9052014004

main90520-14004

9155180665

main91551-80665

9155180865

main91551-80865

91551G0835

main91551-G0835

91551L0830

main91551-L0830

9167180614

main91671-80614

9415120841

main94151-20841

9672319010

main96723-19010

50 parts on this diagram · 2 diagrams in section
