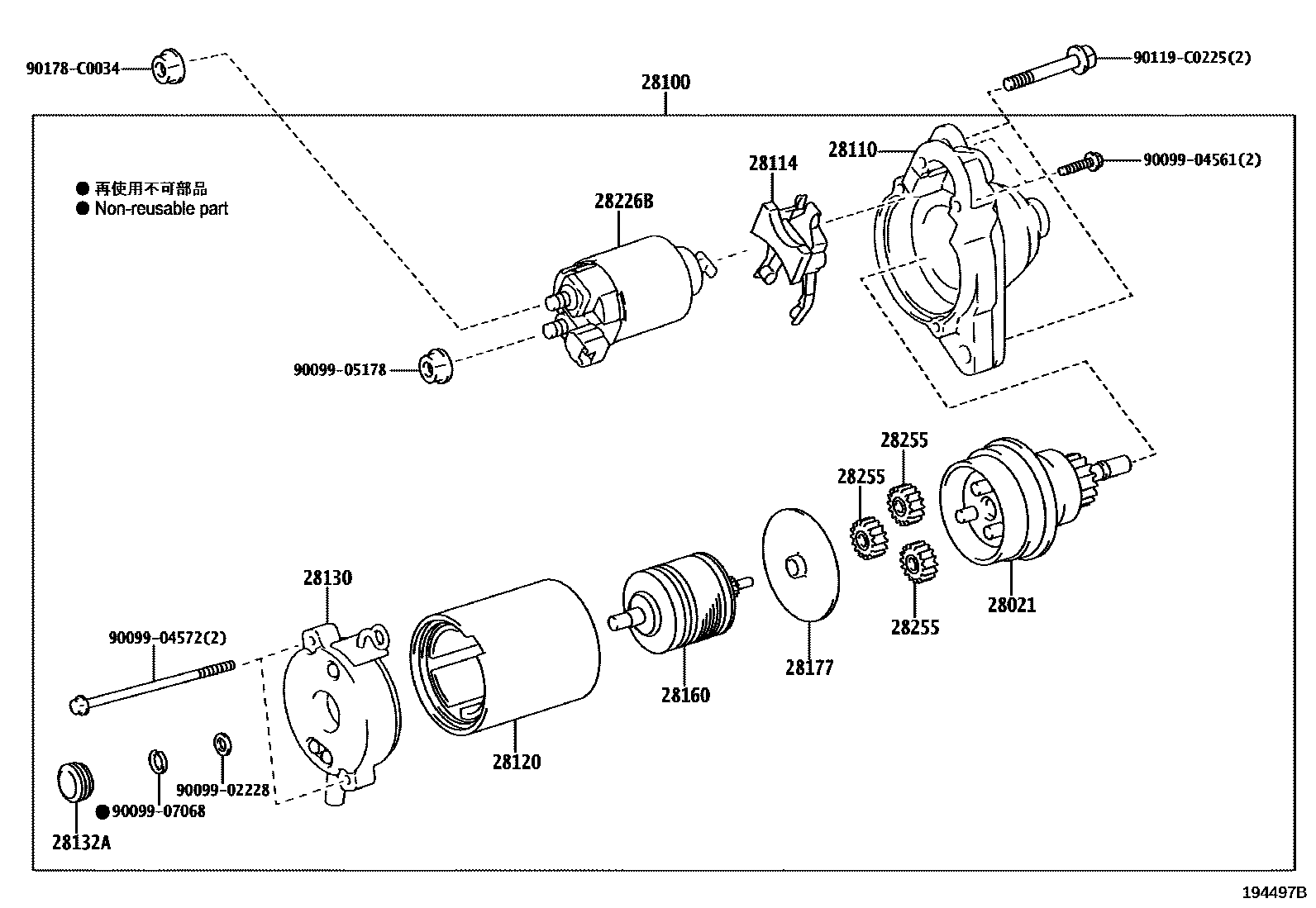

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0P010i5GRFE..GRS218201501-201712

main28021-0V040i8ARFTS..ARS212201508-201910

28100STARTER ASSY

main28100-0P011i5GRFE..GRS218201501-201712

12V 1.7KW

sub28100-31071

main28100-0V040i8ARFTS..ARS212201508-201903

12V 1.7KW

main28100-0V041i8ARFTS..ARS212..B201903-201910

12V 1.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i5GRFE..GRS218201501-201712

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i5GRFE..GRS218201501-201712

28120YOKE ASSY, STARTER

main28120-0H120i5GRFE..GRS218201501-201712

main28120-0V040i8ARFTS..ARS212201508-201910

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0P010i5GRFE..GRS218201501-201712

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i5GRFE..GRS218201501-201712

28160ARMATURE ASSY, STARTER

main28160-0S050i8ARFTS..ARS212201508-201910

main28160-21060i5GRFE..GRS218201501-201712

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i5GRFE..GRS218201501-201712

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i5GRFE..GRS218201501-201712

main28226-37100i8ARFTS..ARS212201508-201910

28255GEAR, PLANET

main28255-20020i5GRFE..GRS218201501-201712

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

90119C0225

main90119-C0225

90178C0034

main90178-C0034

18 parts on this diagram · 2 diagrams in section
