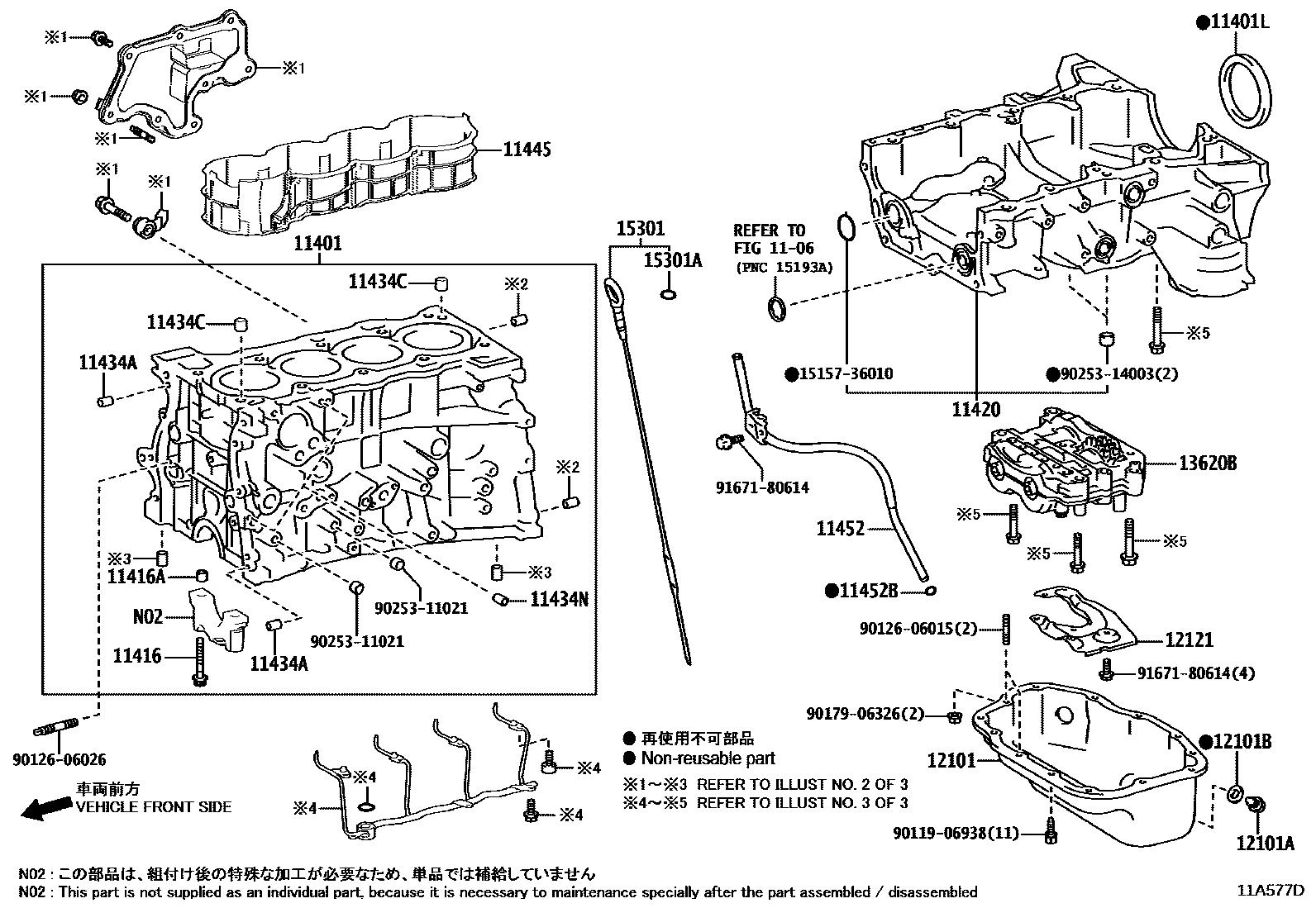

CYLINDER BLOCK

0001 1CYLINDER BLOCK 0002 1FITTING PARTS 1/2 0003 1FITTING PARTS 2/2 0004 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-09570i5GRFE..GRS218201501

sub11401-09571

main11410-39205i8ARFTS..ARS212201508-201910

sub11410-39215

11401LSEAL, ENGINE REAR OIL

main90311-89014i8ARFTS..ARS212201508-201910

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i8ARFTS..ARS212201501-201712

main90910-02197i8ARFTS..ARS212201709-201910

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-14003i8ARFTS..ARS212201508-201910

11420CRANKCASE ASSY, STIFFENING

main11420-36070i8ARFTS..ARS212201508-201910

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i8ARFTS..ARS212..B201508-201910

L=14,OD=6

main90250-C0009i5GRFE..GRS218201501

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i5GRFE..GRS218201501

L=18,OD=8

main90253-15001i8ARFTS..ARS212201508-201910

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i8ARFTS..ARS212..P,Q,S,U201508-201910

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36040i8ARFTS..ARS212201508-201910

11452GUIDE, OIL LEVEL GAGE

main11452-0P020i5GRFE..GRS218201501

main11452-36070i8ARFTS..ARS212201508-201910

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i5GRFE..GRS218201501

main96723-19010i8ARFTS..ARS212..P,Q,S,U201508-201910

12101PAN SUB-ASSY, OIL

main12101-0P010i5GRFE..GRS218201501

main12101-36100i8ARFTS..ARS212..P,Q,S,U201508-201910

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i8ARFTS..ARS212..P,Q,S,U201501-201910

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i8ARFTS..ARS212201508-201910

main90430-C0005i5GRFE..GRS218201501

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0P020i5GRFE..GRS218201501

main12121-36040i8ARFTS..ARS212201508-201910

13620BBALANCER ASSY, ENGINE

main13620-36030i8ARFTS..ARS212..B201508-201910

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31080i5GRFE..GRS218201501

main15301-36041i8ARFTS..ARS212201508-201910

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i8ARFTS..ARS212201501-201910

1515736010COVER, OIL STRAINER

main15157-36010

9011906938

main90119-06938

9012606015

main90126-06015

9012606026

main90126-06026

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9167180614

main91671-80614

27 parts on this diagram · 4 diagrams in section
