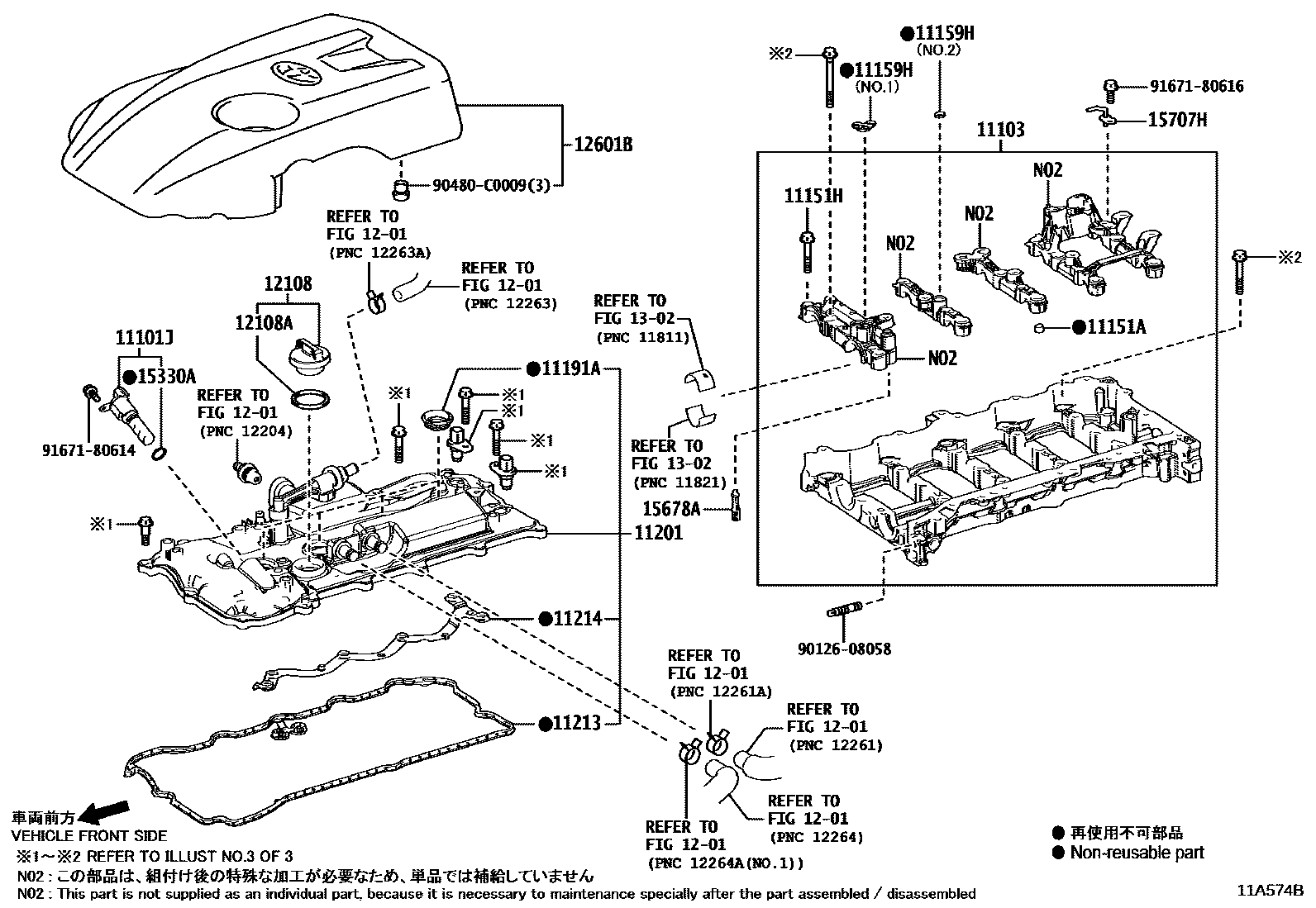

CYLINDER HEAD
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11103HOUSING SUB-ASSY, CAMSHAFT
sub11103-36050
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12601BCOVER SUB-ASSY, ENGINE, NO.1
1302
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(L)
(J)
15678AFILTER, OIL CONTROL VALVE
15707HPIPE SUB-ASSY, OIL
9012608058
main90126-08058
90480C0009
main90480-C0009
9167180614
main91671-80614
9167180616
main91671-80616
22 parts on this diagram · 5 diagrams in section
