HEATING & AIR CONDITIONING - COOLER UNIT

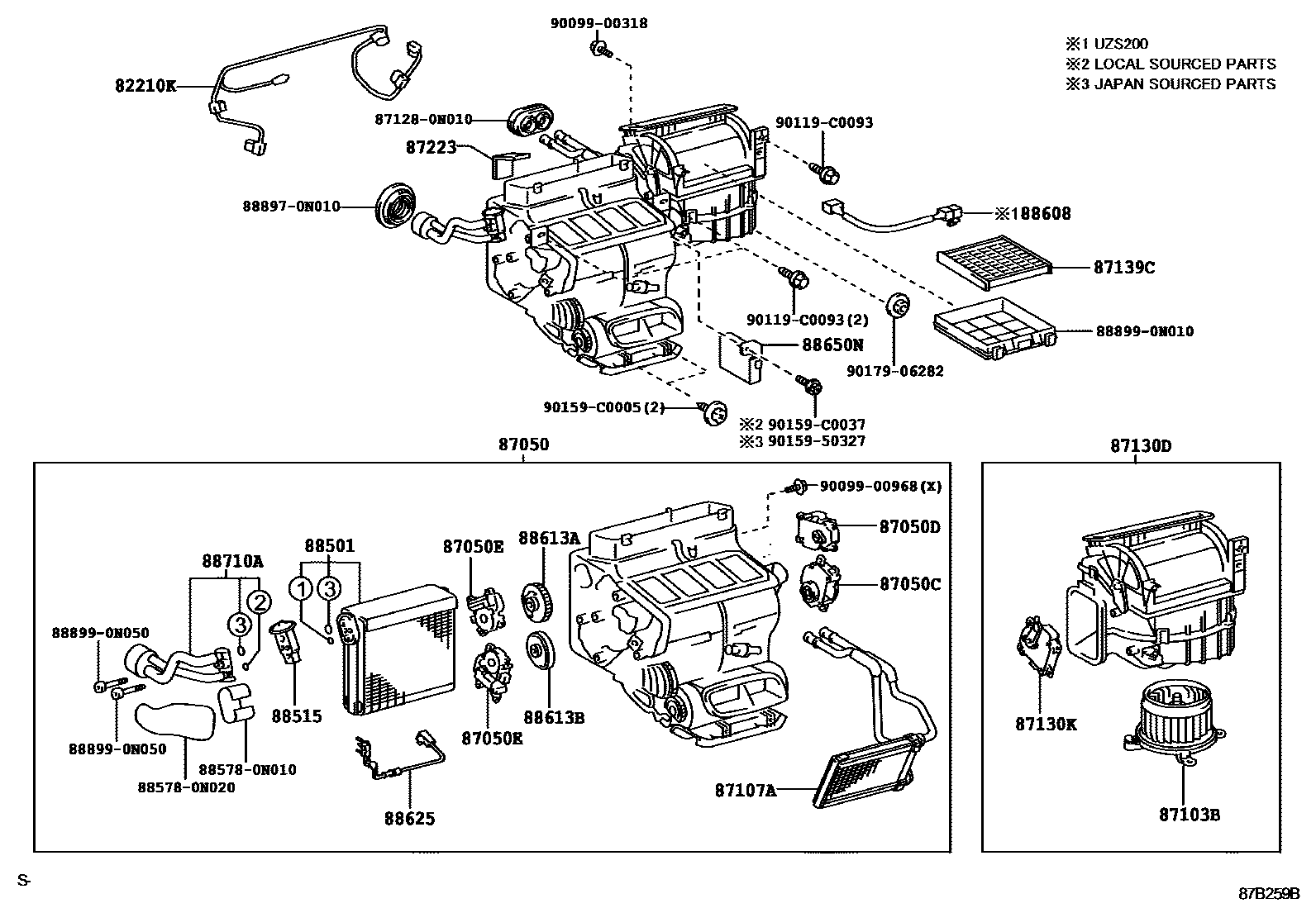

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0N030iGRS20#200912-201501

sub82212-0N031

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0N020iGRS20#,UZS200200912-201104

sub87050-0N021

main87050-0N021iGRS20#,UZS200201105-201207

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-0N010iGRS20#,UZS200200912-201105

sub87106-0N060

main87106-0N060iGRS20#,UZS200201105-201207

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-0N020iGRS20#,UZS200200912-201105

sub87106-0N070

main87106-0N070iGRS20#,UZS200201105-201207

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-0N050iGRS20#,UZS200200912-201105

sub87106-0N100

main87106-0N100iGRS20#,UZS200201105-201207

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0N010iGRS20#200912-201010

sub87103-0N011

main87103-0N011iGRS20#201011-201207

main87103-0N020iUZS200200912-201010

sub87103-0N021

main87103-0N021iUZS200201011-201207

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0N010iGRS20#,UZS200200912-201501

87130DBLOWER ASSY

main87130-0N010iGRS20#200912-201207

main87130-0N020iUZS200200912-201207

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0N030iGRS20#,UZS200200912-201104

sub87106-0N080

main87106-0N080iGRS20#201105-201207

87139CFILTER, CLEAN AIR

main87139-0N010iGRS20#201207-201308

MICRO DUST FILTER

sub87139-0N030

main87139-0N010iGRS20#,UZS200200912-201207

sub87139-0N030

main87139-0N030iGRS20#201309

MICRO DUST FILTER

main87139-50100iGRS20#¥4,000201207

*DPF

87223PAD, AIR DUCT

main87223-0N010iGRS20#,UZS200200912-201207

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0N030iGRS20#,UZS200200912-201204

sub88501-0N031

main88501-0N031iGRS20#,UZS200201205-201207

88515VALVE, COOLER EXPANSION

main88515-0N010iGRS20#,UZS200200912-201105

sub88515-0N030

main88515-0N030iGRS20#,UZS200201105-201207

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-0N040iUZS200200912-201207

88613ALEVER, COOLER CONTROL, NO.1

main88613-0N010iGRS20#,UZS200200912-201207

88613BLEVER, COOLER CONTROL, NO.2

main88613-0N020iGRS20#200912-201207

88625THERMISTOR, COOLER, NO.1

main88620-0N030iGRS20#,UZS200200912-201207

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0N090iUZS200;GRS202..ROYVP200912-201001

sub88650-0N091

main88650-0N091iUZS200;GRS202..ROYVP201001-201207

main88650-0N091iGRS202201207

HIGH CLASS PACKAGE

main88650-0N110iGRS20#..ROY,ROYAL,ROYEX200912-201001

sub88650-0N111

main88650-0N111iGRS208201001-201207

88710ATUBE ASSY, AIR CONDITIONER

main88710-0N040iGRS20#,UZS200200912-201105

main88710-0N060iGRS20#201105-201501

871280N010GROMMET, HEATER

main87128-0N010

885780N010PAKING, COOLER AIR DUCT

main88578-0N010

885780N020PAKING, COOLER AIR DUCT

main88578-0N020

888970N010VALVE, COOLER MAGNET

main88897-0N010

888990N010COVER, EVAPORATOR

main88899-0N010

888990N050COVER, EVAPORATOR

main88899-0N050

9009900318

main90099-00318

9009900968

main90099-00968

90119C0093

main90119-C0093

9015950327

main90159-50327¥70

90159C0005

main90159-C0005

90159C0037

main90159-C0037

9017906282

main90179-06282¥90

32 parts on this diagram · 4 diagrams in section
