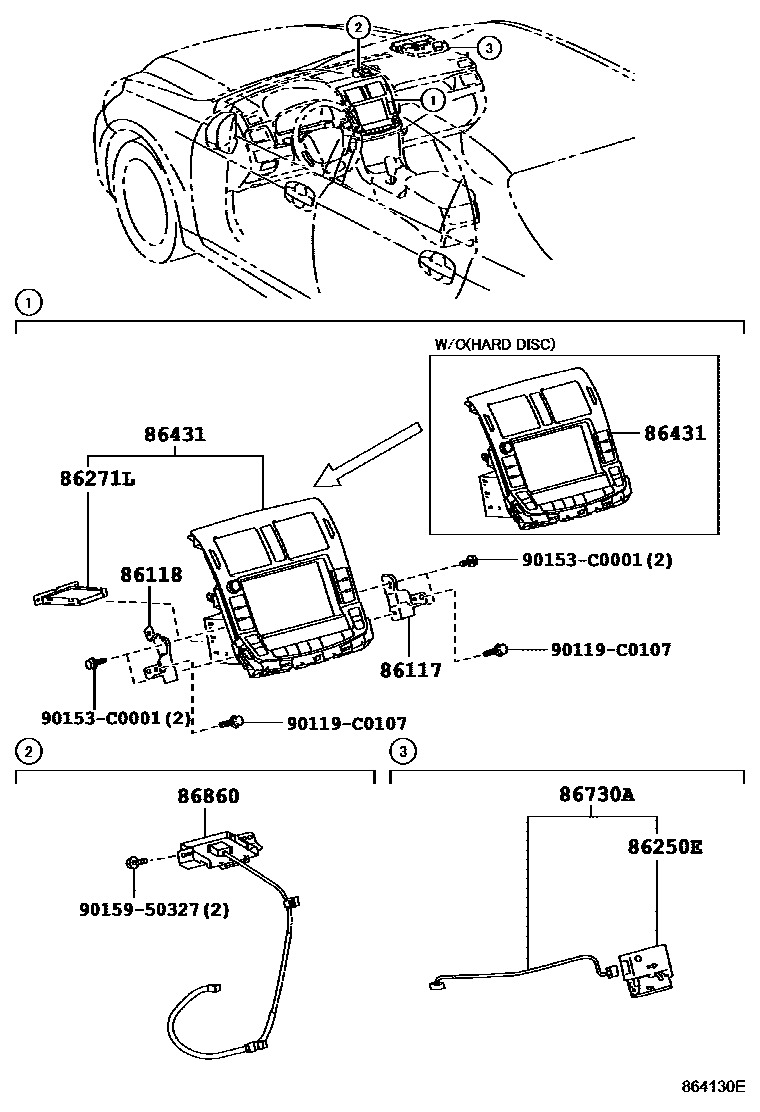

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-30070iGRS20#,UZS200200912-201207

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-30030iGRS20#,UZS200200912-201207

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iGRS202..ROYEX200912-201107

LEATHER PACKAGE

86271LHARD DISC

main86271-0N040iGRS208200912-201003

NAVIGATION PACKAGE

main86271-0N041iGRS208201004-201009

NAVIGATION PACKAGE

main86271-0N042iGRS208201010-201104

NAVIGATION PACKAGE

main86271-0N043iGRS208201105-201109

NAVIGATION PACKAGE

main86271-0N044iGRS208201110-201204

NAVIGATION PACKAGE

main86271-0N045iGRS208201205-201207

NAVIGATION PACKAGE

main86271-0N060iGRS20#..ROY,ROYVP201207-201209

main86271-0N061iGRS20#..ROY,ROYVP201210-201304

main86271-0N062iGRS20#..ROY,ROYVP201305-201309

main86271-0N063iGRS20#..ROY,ROYVP201310-201404

main86271-0N064iGRS20#..ROY,ROYVP201405-201409

main86271-0N065iGRS20#..ROY,ROYVP201410-201501

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-0N010iGRS208200912-201003

DENSO

main86431-0N011iGRS208201004-201009

DENSO

main86431-0N012iGRS208201010-201104

DENSO

main86431-0N013iGRS208201105-201109

DENSO

main86431-0N014iGRS208201110-201204

DENSO

main86431-0N015iGRS208201205-201207

DENSO

main86431-0N020iGRS208200912-201207

W/O(HARD DISC)

86730AMICROPHONE ASSY, TELEPHONE

main86730-30180iGRS20#..ROY,ROYEX,ROYVP201207-201501

NAVIGATION PACKAGE

86860ANTENNA ASSY, NAVIGATION

main86860-0N010iGRS20#..ROY,ROYEX,ROYVP201207

NAVIGATION PACKAGE

main86860-30240iGRS208200912-201207

NAVIGATION PACKAGE

90119C0107

main90119-C0107

90153C0001

main90153-C0001

9015950327

main90159-50327

10 parts on this diagram · 2 diagrams in section
