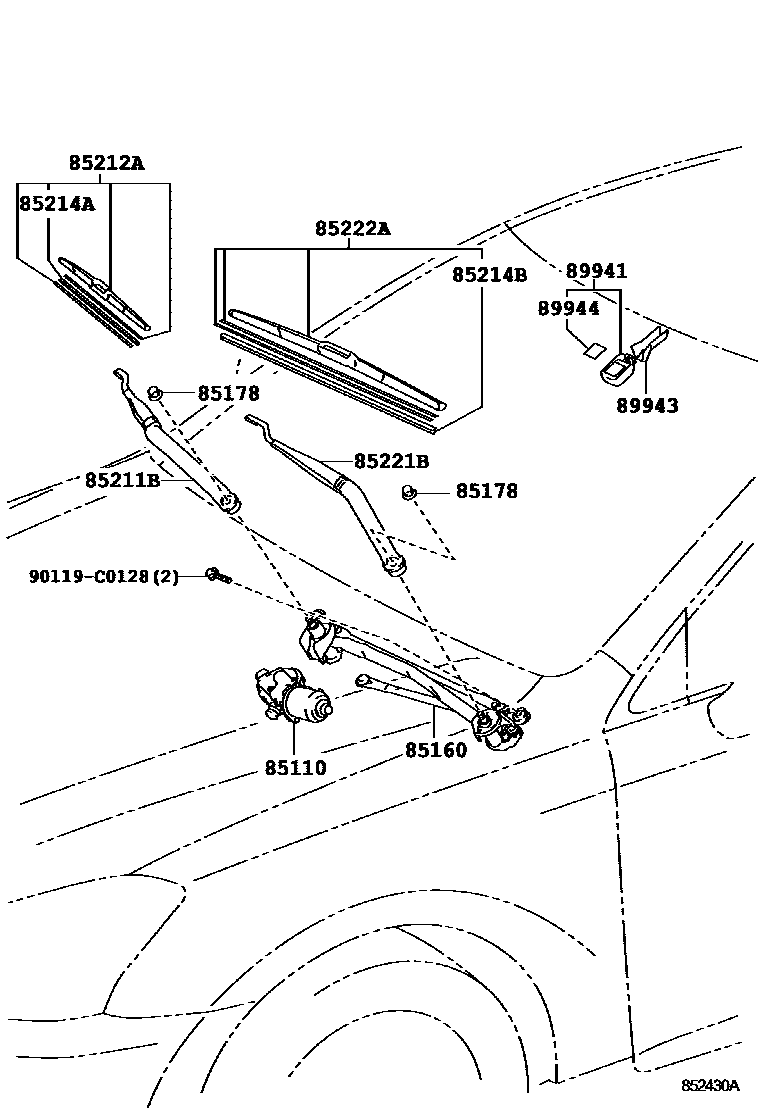

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0N020iGRS20#,UZS200200912-201207

85160LINK ASSY, WINDSHIELD WIPER

main85150-0N020iGRS20#,UZS200200912-201207

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGRS20#,UZS200200912-201207

85211BARM, FRONT WIPER, RH

main85211-0N010iGRS20#,UZS200200912-201207

85212ABLADE, FR WIPER, RH

main85212-0N010iGRS20#,UZS200201005-201207

main85212-74010iGRS20#,UZS200200912-201005

85214ARUBBER, WIPER, RH

main85214-30400iGRS20#,UZS200200912-201207

sub85214-33180

85214BRUBBER, WIPER, LH

main85214-30380iGRS20#,UZS200200912-201207

85221BARM, FRONT WIPER, LH

main85221-0N010iGRS20#,UZS200200912-201207

85222ABLADE, FR WIPER, LH

main85222-0N010iGRS20#,UZS200201005-201207

main85222-33241iGRS20#,UZS200200912-201005

89941SENSOR, RAIN

main89941-30020iGRS202,UZS200200912-201207

89943COVER, RAIN SENSOR

main89943-22030iGRS202,UZS200200912-201207

89944TAPE, RAIN SENSOR

main89944-42010iGRS202,UZS200200912-201207

90119C0128

main90119-C0128

13 parts on this diagram · 1 diagram in section
