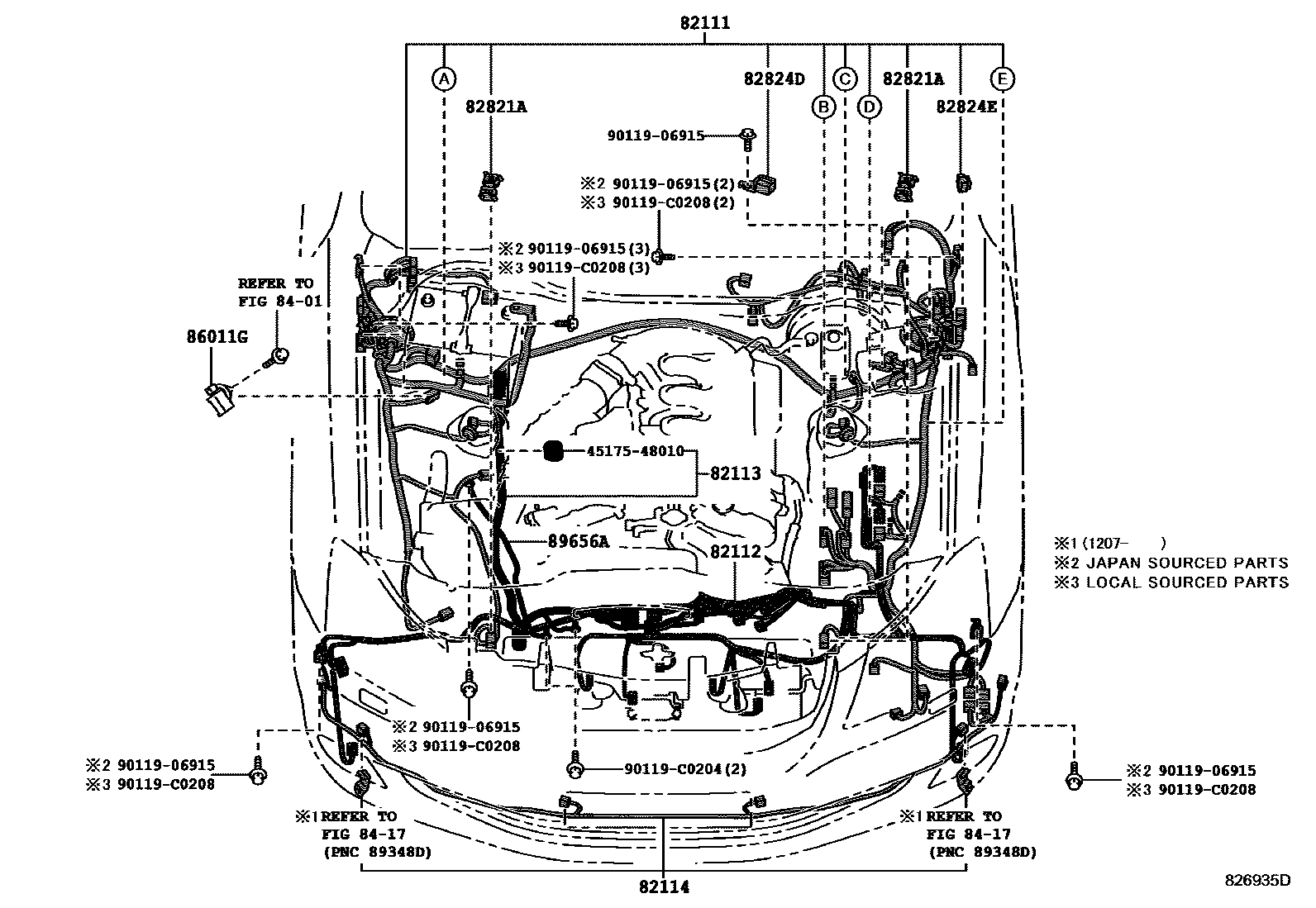

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR & SCUFF PLATE 0007 1FLOOR & ROOF 0008 1FRONT SEAT 0009 1REAR SEAT 0010 1CLAMP & BRACKET 0011 1CABLE BOND 0012 1CONNECTOR 1/2 0013 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-0N080iGRS208200912-201009

main82111-0N081iGRS208201009-201207

main82111-0N090iGRS202..ROY,ROYEX200912-201009

main82111-0N091iGRS202..ROY,ROYEX201009-201207

main82111-0N092iGRS202..ROY201207

main82111-0N100iGRS202..ROY200912-201009

PRE-COLLISION PACKAGE

main82111-0N101iGRS202..ROYVP201009-201207

PRE-COLLISION PACKAGE

main82111-0N102iGRS202..ROYVP201207

main82111-0N110iUZS200200912-201009

main82111-0N111iUZS200201009-201207

main82111-0N130iGRS208..ROYAL201207

NAVIGATION PACKAGE

main82111-0N130iGRS208..ROY,ROYEX201207

LEATHER PACKAGE

82112WIRE, ENGINE ROOM, NO.2

main82112-0N040iGRS20#..ROY,ROYAL,ROYEX200912-201207

main82112-0N050iGRS202..ROY200912-201207

PRE-COLLISION PACKAGE

main82112-0N050iGRS202..ROYVP201207

main82112-0N060iUZS200200912-201207

82113WIRE, ENGINE ROOM, NO.3

main82113-0N010iGRS20#¥10,100200912-201207

main82113-0N020iUZS200200912-201207

82114WIRE, ENGINE ROOM, NO.4

main82114-0N020iUZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE

main82114-0N021iGRS20#..ROY,ROYEX201207-201501

NAVIGATION PACKAGE

main82114-0N021iGRS20#..ROY,ROYEX201207-201501

LEATHER PACKAGE

main82114-0N031iGRS202..ROYVP201207-201501

82821ACOVER, CONNECTOR

main82821-30650iGRS20#,UZS200¥60200912-201207

82824CONNECTOR, WIRING HARNESS

main82824-30180iGRS20#¥560200912-201207

82824DCONNECTOR, WIRING HARNESS

main82824-48020iGRS20#,UZS200¥1,990200912-201207

82824ECONNECTOR, WIRING HARNESS

main82824-50340iGRS20#,UZS200¥1,250200912-201207

8401

8417

86011GCONDENSER

main86516-30460iGRS20#,UZS200200912-201207

89656AWIRE, POWER STEERING EARTH

main89656-30010iGRS20#,UZS200¥1,420200912-201207

4517548010RING, CONTACT, NO.2

main45175-48010

9011906915

main90119-06915¥60

90119C0204

main90119-C0204

90119C0208

main90119-C0208

16 parts on this diagram · 13 diagrams in section
