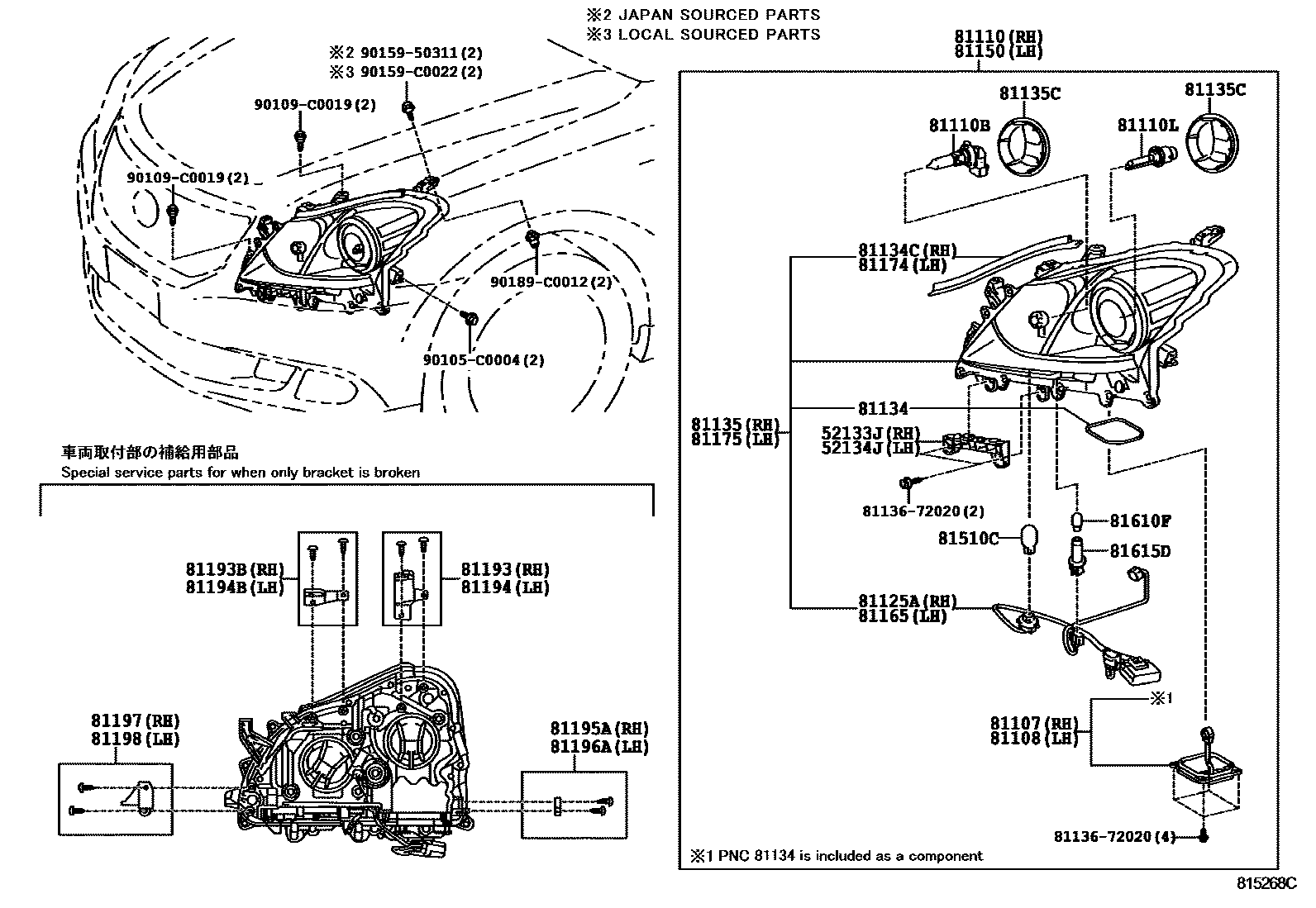

HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
45V 35W
81125ACORD, HEADLAMP, RH
81134GASKET, HEADLAMP
81134CGASKET, HEADLAMP BODY, RH
81135CCOVER, HEADLAMP BACK, NO.1
81174GASKET, HEADLAMP BODY, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
8113672020PROTECTOR, HEADLAMP, NO.1 RH
main81136-72020
90105C0004
main90105-C0004
90109C0019
main90109-C0019
9015950311
main90159-50311
90159C0022
main90159-C0022
90189C0012
main90189-C0012
33 parts on this diagram · 1 diagram in section
