SIDE MOULDING

57497ASHIELD, REAR FLOOR HOUSING

main57497-0N030iGRS20#201207

57498ASHIELD, REAR FLOOR HOUSING, NO.2

main57498-0N030iGRS20#201207

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-0N010iGRS20#,UZS200200912-201207

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-0N010iGRS20#201207

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0N030-A0iGRS20#,UZS200200912-201207

WHITE PEARL CS.,062

main75551-0N030-B0iGRS20#,UZS200200912-201207

SILVER ME.,1G7

main75551-0N030-B1iGRS20#201107-201207

ICE TITANIUM M.M.,1H4

main75551-0N030-C0iGRS20#201207-201501

BLACK,202

main75551-0N030-D0iGRS20#,UZS200200912-201207

BLACKISH RED MC.,3R0

main75551-0N030-J0iGRS20#,UZS200200912-201207

DK.BLUE MC.,8S6

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0N030-A0iGRS20#,UZS200200912-201207

WHITE PEARL CS.,062

main75552-0N030-B0iGRS20#,UZS200200912-201207

SILVER ME.,1G7

main75552-0N030-B1iGRS20#201207-201501

ICE TITANIUM M.M.,1H4

main75552-0N030-C0iGRS20#,UZS200200912-201207

BLACK,202

main75552-0N030-D0iGRS20#,UZS200200912-201207

BLACKISH RED MC.,3R0

main75552-0N030-J0iGRS20#201207-201303

DK.BLUE MC.,8S6

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-0N020×10iGRS20#,UZS200200912-201207

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-0N040×2iGRS20#,UZS200200912-201207

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-0N030iGRS20#,UZS200200912-201207

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-0N030iGRS20#,UZS200200912-201207

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0N020iGRS20#,UZS200200912-201207

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0N020iGRS20#,UZS200200912-201207

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0N020iGRS20#,UZS200200912-201207

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0N020iGRS20#,UZS200200912-201207

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75071-0N010iGRS20#,UZS200200912-201207

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75072-0N010iGRS20#,UZS200200912-201207

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-0N030iGRS20#,UZS200200912-201207

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-0N030iGRS20#201207-201501

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-0N030iGRS20#,UZS200200912-201207

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-0N030iGRS20#,UZS200200912-201207

NO PAINT REQ.

75851MOULDING, ROCKER PANEL, RH

main75851-0N906iGRS20#,UZS200200912-201207

main75851-0N907iGRS20#201212

75852MOULDING, ROCKER PANEL, LH

main75852-0N906iGRS20#,UZS200200912-201207

main75852-0N907iGRS20#201212

75857ACOVER, ROCKER PANEL MOULDING, RH

main75857-0N010iGRS20#,UZS200200912-201207

75858ACOVER, ROCKER PANEL MOULDING, LH

main75858-0N010iGRS20#,UZS200200912-201207

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75861-0N020×4iGRS20#,UZS200200912-201207

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-0N030×2iGRS20#,UZS200200912-201207

75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-0N040×2iGRS20#,UZS200200912-201207

75863ACOVER, ROCKER PANEL MOULDING END, REAR RH

main75863-0N030×2iGRS20#,UZS200200912-201207

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main75866-0N020×2iGRS20#201207

75864ACOVER, ROCKER PANEL MOULDING END, REAR LH

main75863-0N030×2iGRS20#,UZS200200912-201207

75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4

main75866-0N030iGRS20#,UZS200200912-201207

75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75866-0N040iGRS20#,UZS200200912-201207

75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-0N010×4iGRS20#,UZS200200912-201207

75867ACLIP, ROCKER PANEL MOULDING

main75867-02020×20iGRS20#,UZS200201110-201207

main75867-30130×20iGRS20#,UZS200200912-201008

main75867-33030×20iGRS20#,UZS200201009-201109

75867CCLIP, ROCKER PANEL MOULDING

main75867-30120×16iGRS20#,UZS200200912-201207

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75867-30140×4iGRS20#,UZS200200912-201207

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-0N030iGRS20#,UZS200200912-201207

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-0N030iGRS20#,UZS200200912-201207

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-0N030iGRS20#,UZS200200912-201207

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-0N030iGRS20#,UZS200200912-201207

9015960364

main90159-60364

9016240035

main90162-40035

90162C0002

main90162-C0002

9016440096

main90164-40096

90164C0012

main90164-C0012

9018904059

main90189-04059

9018904207

main90189-04207

9018904231

main90189-04231

9018906006

main90189-06006

9018906066

main90189-06066

90189C0013

main90189-C0013

90189C0019

main90189-C0019

9026904051

main90269-04051

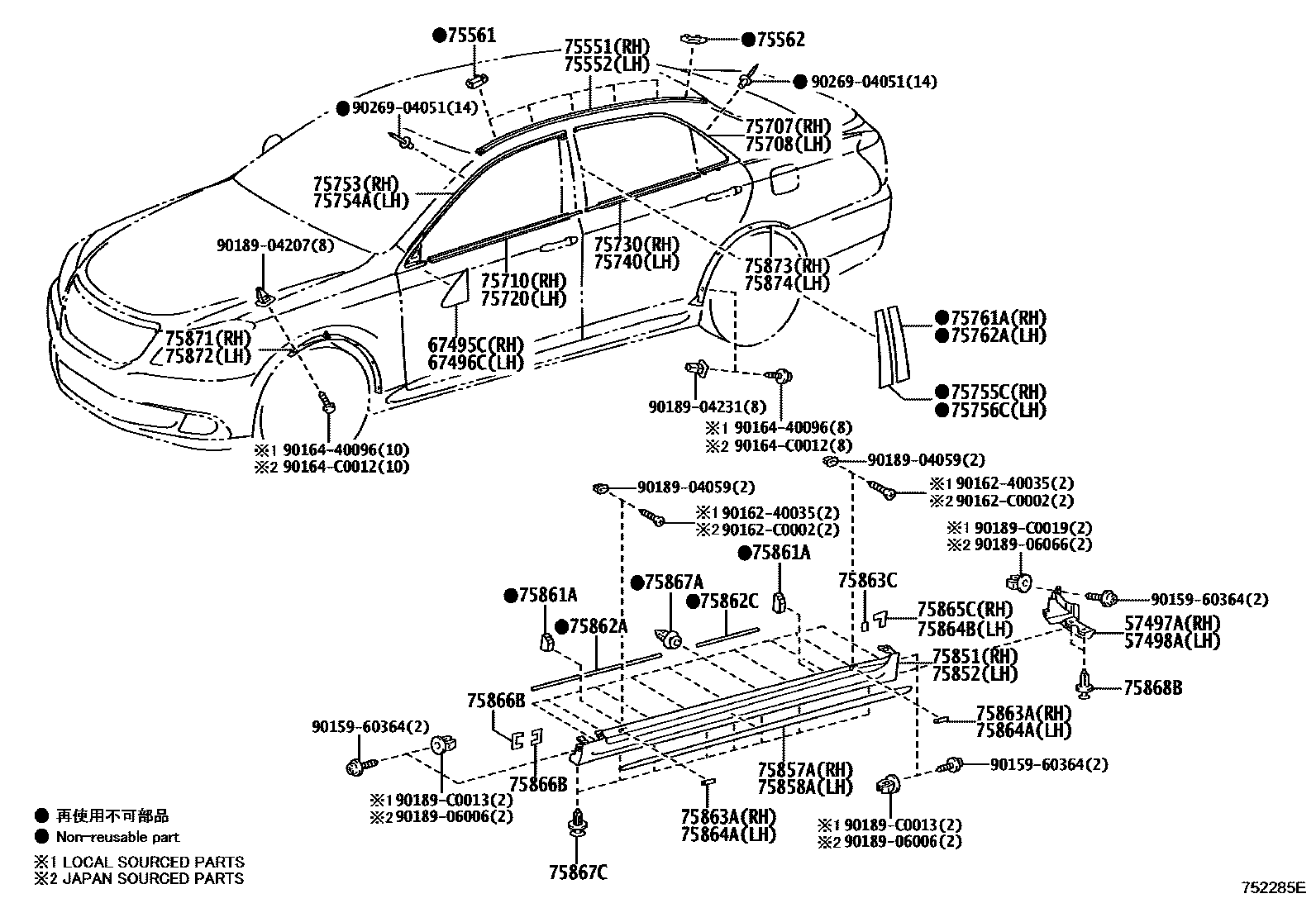

53 parts on this diagram · 1 diagram in section
