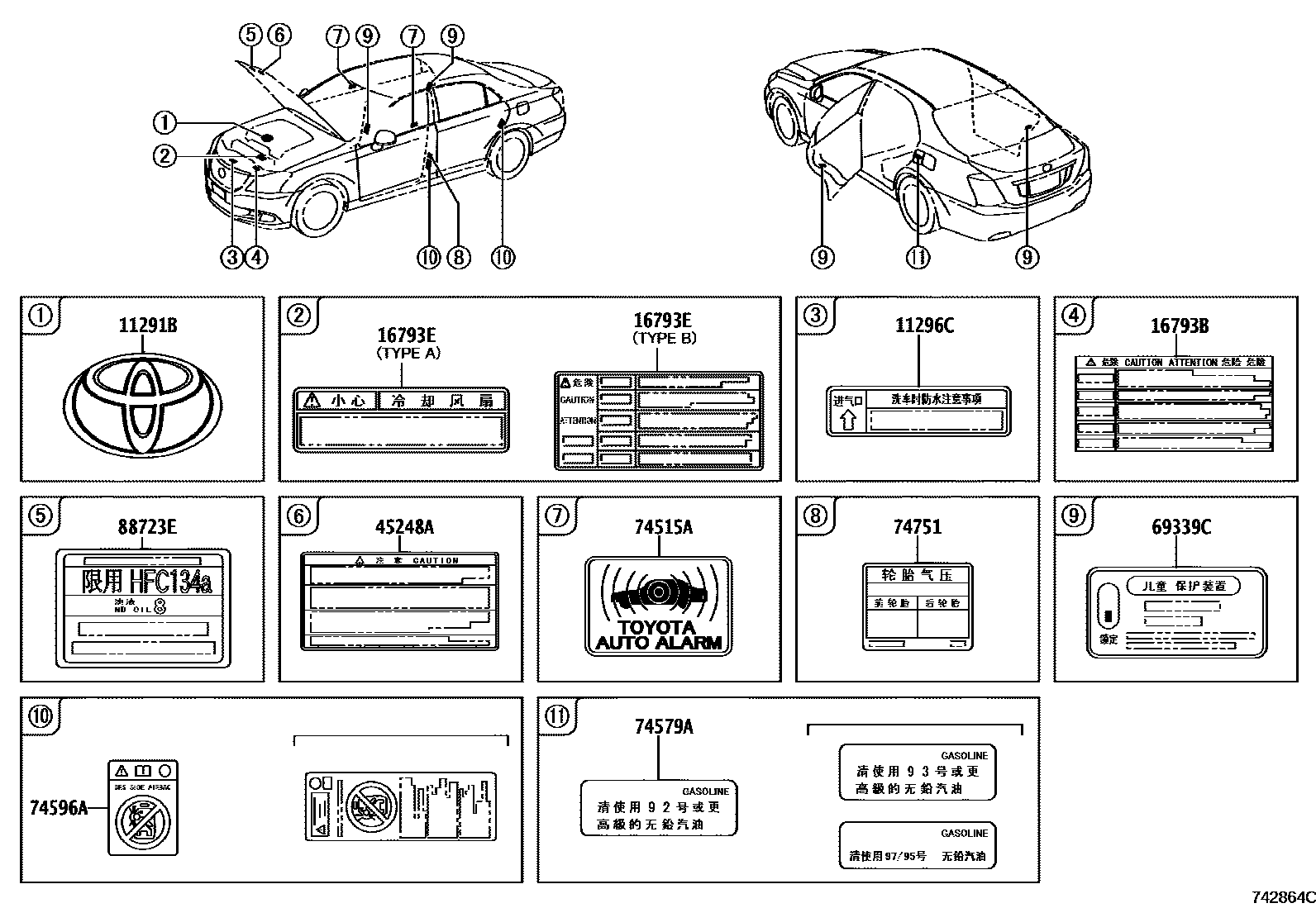

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11291BPLATE, ENGINE NAME

main11291-31050i3GRFE,5GRFE..GRS20#200912-201501

11296CLABEL, ENGINE SERVICE INFORMATION

main11295-0P010i3GRFE,5GRFE,3UZFE..GRS20#,UZS200200912-201501

16793BLABEL, COOLING FAN INFORMATION

main16793-0P010i3GRFE,5GRFE,3UZFE..GRS20#,UZS200200912-201501

16793ELABEL, COOLING FAN CAUTION

main16793-15020i3GRFE,5GRFE..GRS20#200912-201207

TYPE A:REFER ILLUST.

main16793-15020i3GRFE,5GRFE..GRS20#201207-201501

main16793-28020i3UZFE..UZS200200912-201207

TYPE B:REFER ILLUST.

sub16793-36040

45248ALABEL, STEERING ACTUATOR CAUTION

main45248-30010iUZS200200912-201204

sub45248-30020

main45248-30020iUZS200201205-201207

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-06030iGRS20#,UZS200200912-201207

sub69339-06080

main69339-06080iGRS20#201207

74515APLATE, THEFT WARNING

main74515-06020iGRS20#,UZS200200912-201207

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-0D010iGRS20#201306

(L)

main74579-26010iGRS20#200912-201208

sub74579-33010

main74579-26011iGRS20#201208-201306

main74579-26011iGRS20#201306

(J)

main74579-30030iUZS200200912-201207

74596ALABEL, SIDE AIRBAG CAUTION

main74596-0G010iGRS20#201405

main74596-53020iGRS20#,UZS200200912-201405

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0N020iGRS20#,UZS200200912-201207

88723ELABEL, COOLER SERVICE CAUTION

main88723-0D020iGRS20#,UZS200200912-201207

11 parts on this diagram · 2 diagrams in section
