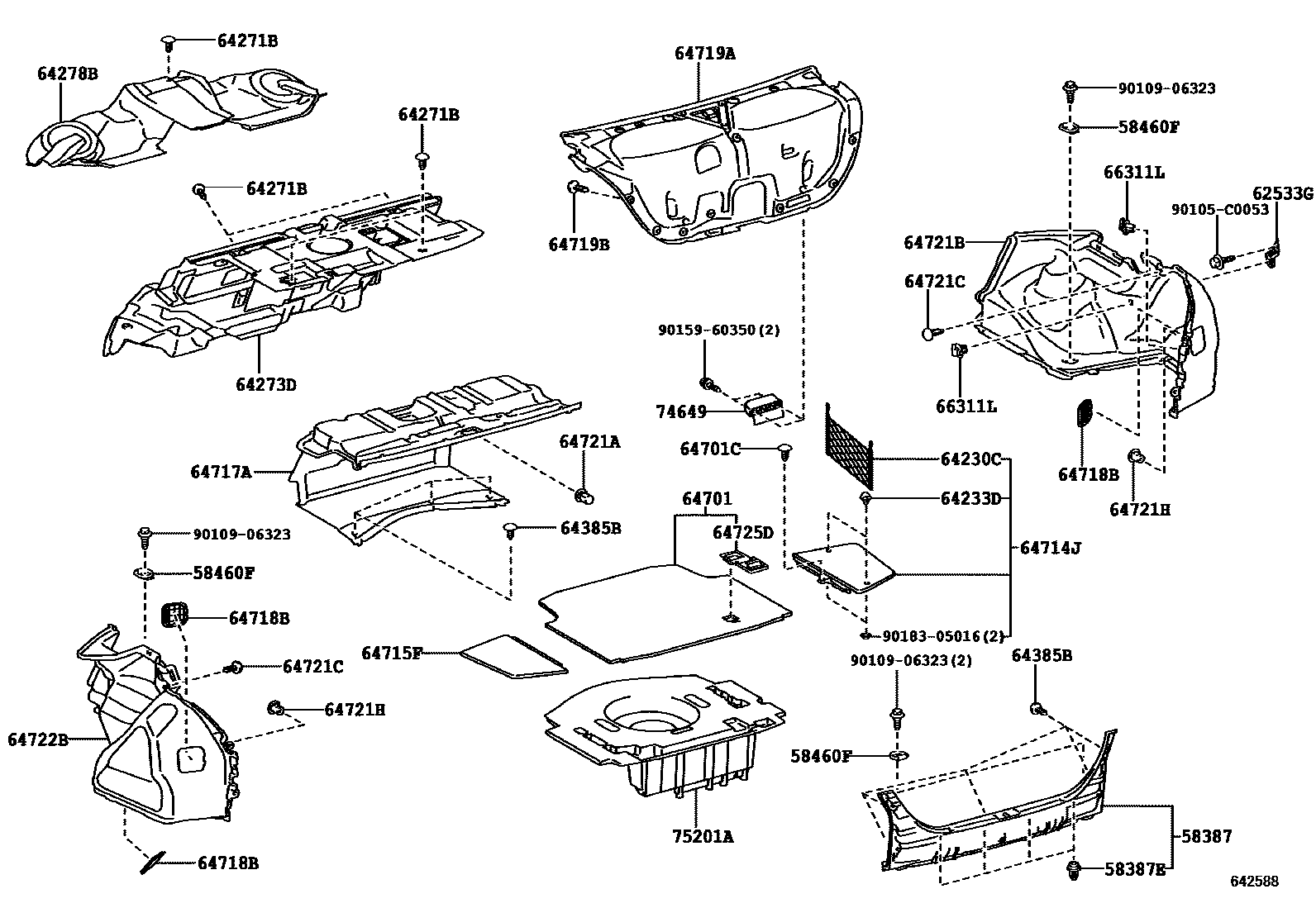

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
62533GBRACKET, QUARTER TRIM, RH
64230CNET ASSY, ROOM PARTITION
64233DHOOK, ROOM PARTITION NET, REAR RH
BLACK,TRIM0#,4#
64271BCLIP(FOR ROOM PARTITION BOARD)
64273DPAD, ROOM PARTITION, NO.1
64278BPAD, ROOM PARTITION, NO.3
64385BCLIP
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)
64714JCOVER, DECK SIDE TRIM, RH
64715FCOVER, DECK SIDE TRIM, LH
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
66311LHOOK,ROPE
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
90105C0053
main90105-C0053
9010906323
main90109-06323
9015960350
main90159-60350
9018305016
main90183-05016
31 parts on this diagram · 3 diagrams in section
