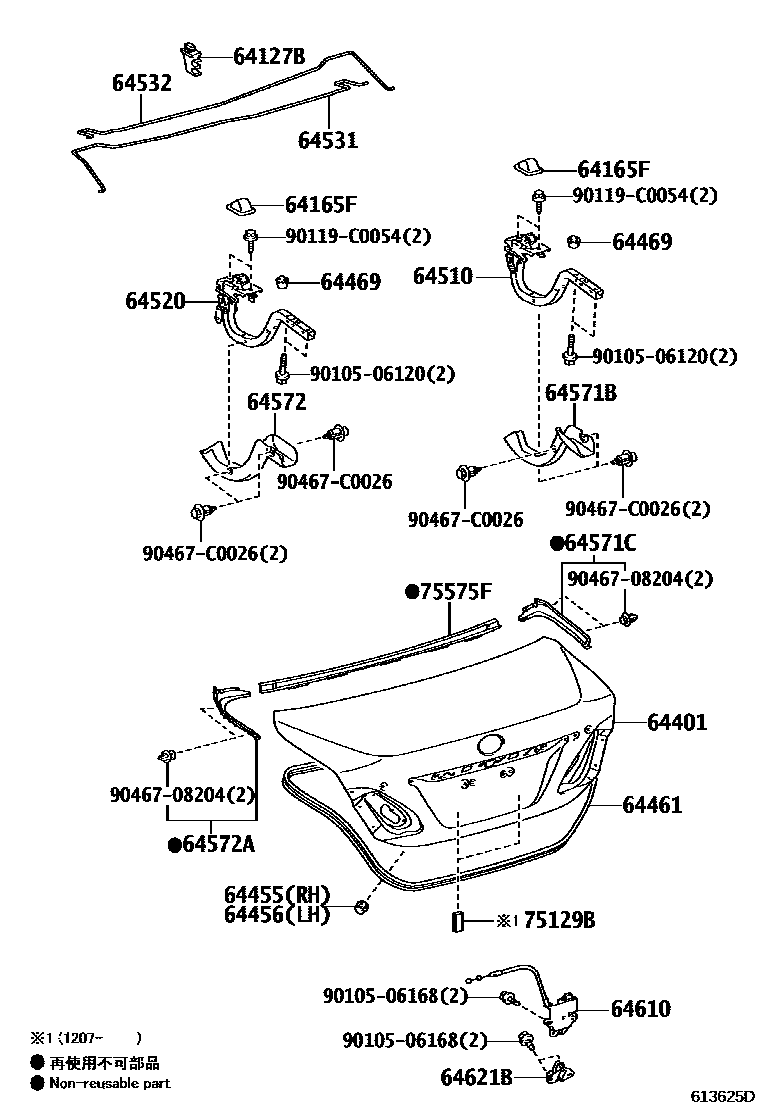

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64165FCOVER, UPPER BACK PANEL HOLE, NO.1
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
NAVIGATION PACKAGE
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64469CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
75129BCUSHION, REAR LICENCE PLATE
75575FMOULDING, BACK WINDOW, OUTSIDE LOWER
9010506120
main90105-06120
9010506168
main90105-06168
90119C0054
main90119-C0054
9046708204
main90467-08204
90467C0026
main90467-C0026
24 parts on this diagram · 1 diagram in section
