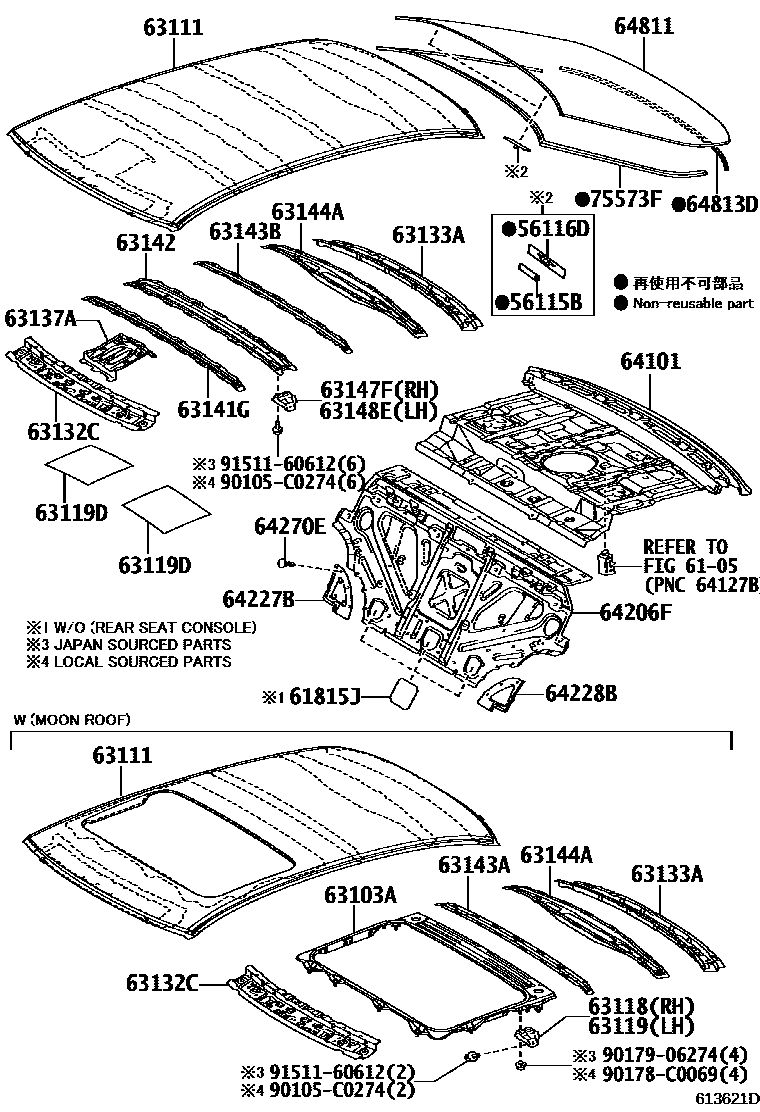

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-0N010iGRS20#201207

main56115-30110iGRS20#,UZS200200912-201109

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iGRS20#,UZS200200912-201207

6105

61815JCOVER, ROOF SIDE, INNER UPPER

main61815-30120×3iGRS20#,UZS200200912-201207

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63142-0N903iGRS208..ROYAL201207

NAVIGATION PACKAGE

63111PANEL, ROOF

main63111-0N060supersedes 63111-0N050iGRS202..ROY,ROYEX200912-201207

main63111-0N080iUZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE

main63111-0N110iGRS202201207

main63111-0N070iUZS200200912-201207

VIP PACKAGE

63118SUPPORT, ROOF PANEL, RH

main63118-0N010iGRS202,UZS200200912-201207

63119SUPPORT, ROOF PANEL, LH

main63118-0N010iGRS202,UZS200200912-201207

63119DPAD, ROOF PANEL, NO.1

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-0N010iGRS20#,UZS200200912-201207

63133AFRAME, BACK WINDOW, UPPER

main63133-0N010iGRS20#,UZS200200912-201207

63137ABRACKET, DOME LAMP, NO.1

main63137-0N010iUZS200200912-201207

VIP PACKAGE

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-0N010iUZS200200912-201207

VIP PACKAGE

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-0N010iUZS200200912-201207

VIP PACKAGE

63143AREINFORCEMENT, ROOF PANEL

main63148-0N010iGRS202,UZS200200912-201207

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-0N010iUZS200200912-201207

VIP PACKAGE

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63128-0N010iGRS20#,UZS200200912-201207

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63146-0N010iUZS200200912-201207

VIP PACKAGE

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0N010iUZS200200912-201207

VIP PACKAGE

64101PANEL SUB-ASSY, UPPER BACK

main64101-0N900iGRS20#..ROYAL,ROYEX200912-201207

main64101-0N901iGRS208200912-201207

NAVIGATION PACKAGE

main64101-0N902supersedes 64101-0N901iUZS200;GRS202..ROYVP200912-201207

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-0N030iGRS20#..ROY,ROYAL,ROYEX200912-201207

main64206-0N040iUZS200;GRS202..ROYVP200912-201207

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-0N020iGRS20#,UZS200200912-201207

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-0N020iGRS20#,UZS200200912-201207

64270ECLIP

main90467-08186-C0×6iGRS20#,UZS200200912-201207

BLACK

64811GLASS, BACK WINDOW

main64801-0N901iGRS20#,UZS200200912-201207

*EHT,T=3.5,DK.GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0N010iGRS20#,UZS200200912-201207

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-0N030iGRS20#201207

90105C0274

main90105-C0274

90178C0069

main90178-C0069

9017906274

main90179-06274

9151160612

main91511-60612

31 parts on this diagram · 2 diagrams in section
