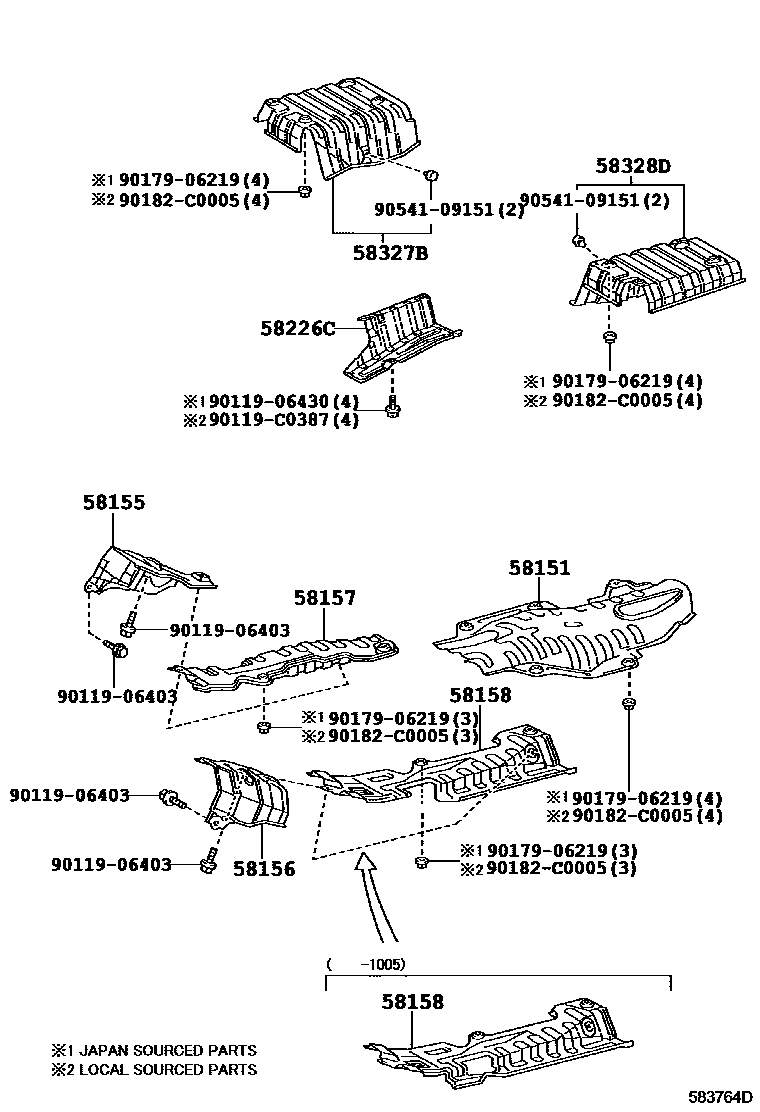

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0N020iGRS20#201307

main58151-30190iGRS20#,UZS200200912-201306

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0P010iGRS20#201302

main58155-22100iGRS20#200912-201301

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0P010iGRS20#201302

main58156-30080iGRS20#,UZS200200912-201301

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-0P010iGRS20#201302

main58157-30071iGRS20#,UZS200200912-201005

sub58157-30072

main58157-30072iGRS20#,UZS200201006-201110

sub58157-30073

main58157-30073iGRS20#,UZS200201111-201301

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-0P010iGRS20#201302

main58158-30061iGRS20#,UZS200200912-201005

sub58158-30062

main58158-30062iGRS20#,UZS200201006-201201

sub58158-30063

main58158-30063iGRS20#201202-201301

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-0P010iGRS20#201302

main58226-30030iGRS20#200912-201301

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30053iGRS20#,UZS200200912-201207

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30034iGRS20#,UZS200200912-201207

9011906403

main90119-06403

9011906430

main90119-06430

90119C0387

main90119-C0387

9017906219

main90179-06219

90182C0005

main90182-C0005

9054109151

main90541-09151

14 parts on this diagram · 1 diagram in section
