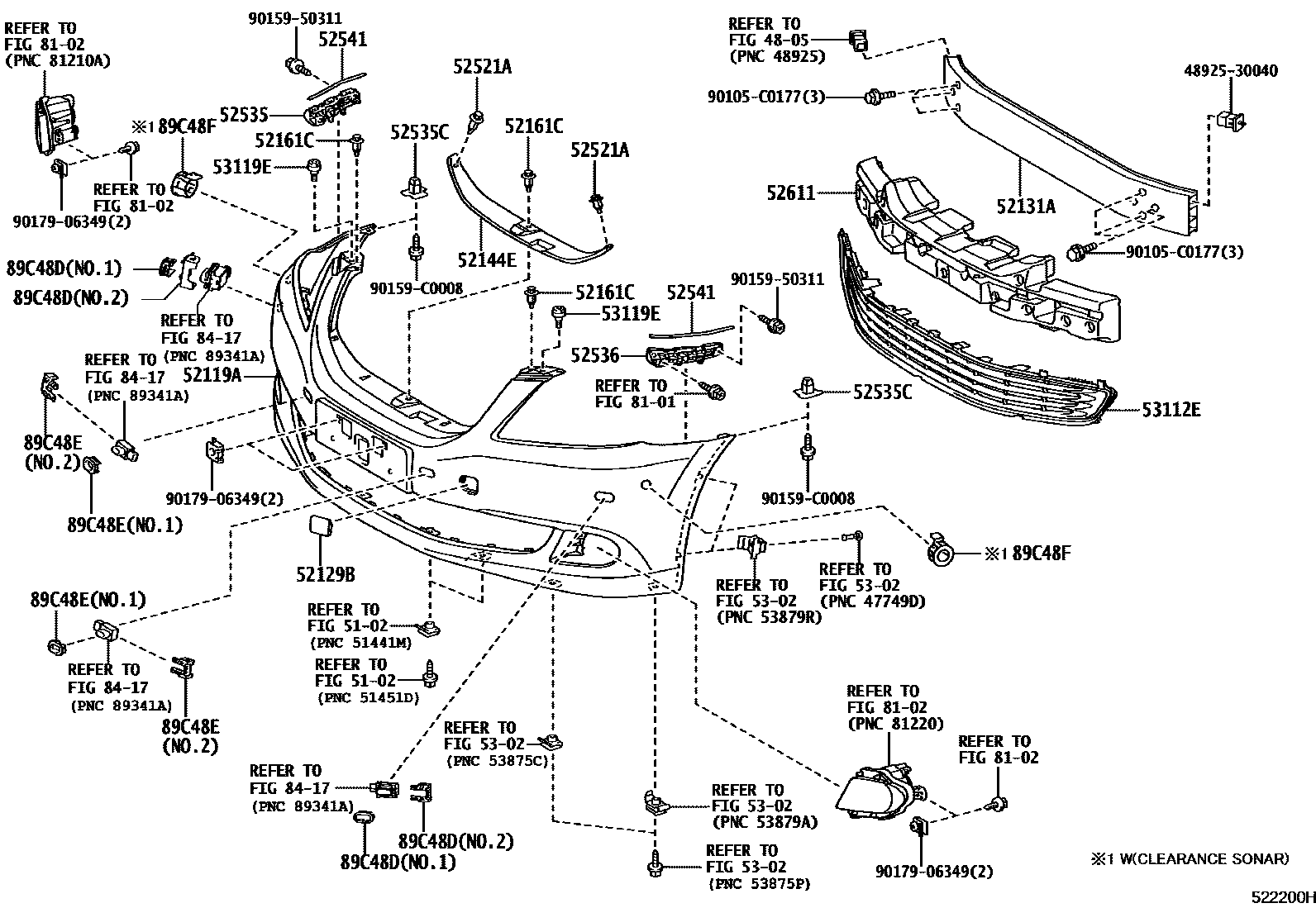

FRONT BUMPER & BUMPER STAY
4805
5102
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,PRE-COLLISION PACKAGE
PAINT REQ.
PAINT REQ.,NAVIGATION PACKAGE
PAINT REQ.
PAINT REQ.,LEATHER PACKAGE
PAINT REQ.
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
52144ESTAY, FRONT BUMPER, CENTER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
8101
8102
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
LEATHER PACKAGE,WHITE PEARL CS.,062
WHITE PEARL CS.,062
NAVIGATION PACKAGE,WHITE PEARL CS.,062
SILVER ME.,1G7
NAVIGATION PACKAGE,SILVER ME.,1G7
LEATHER PACKAGE,SILVER ME.,1G7
LEATHER PACKAGE,ICE TITANIUM M.M.,1H4
NAVIGATION PACKAGE,ICE TITANIUM M.M.,1H4
ICE TITANIUM M.M.,1H4
NAVIGATION PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
LEATHER PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
BLACK,202
NAVIGATION PACKAGE,BLACK,202
LEATHER PACKAGE,BLACK,202
NAVIGATION PACKAGE,BLACKISH RED MC.,3R0
BLACKISH RED MC.,3R0
LEATHER PACKAGE,BLACKISH RED MC.,3R0
NAVIGATION PACKAGE,DK.BLUE MC.,8S6
LEATHER PACKAGE,DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
PRE-COLLISION PACKAGE,WHITE PEARL CS.,062,NO.1:REFER ILLUST.
WHITE PEARL CS.,062,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,SILVER ME.,1G7,NO.1:REFER ILLUST.
SILVER ME.,1G7,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.
ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,BLACK,202,NO.1:REFER ILLUST.
BLACK,202,NO.1:REFER ILLUST.
BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,DK.BLUE MC.,8S6,NO.1:REFER ILLUST.
DK.BLUE MC.,8S6,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
WHITE PEARL CS.,062
NAVIGATION PACKAGE,WHITE PEARL CS.,062
LEATHER PACKAGE,WHITE PEARL CS.,062
SILVER ME.,1G7
NAVIGATION PACKAGE,SILVER ME.,1G7
LEATHER PACKAGE,SILVER ME.,1G7
ICE TITANIUM M.M.,1H4
LEATHER PACKAGE,ICE TITANIUM M.M.,1H4
NAVIGATION PACKAGE,ICE TITANIUM M.M.,1H4
BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
NAVIGATION PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
LEATHER PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
BLACK,202
NAVIGATION PACKAGE,BLACK,202
LEATHER PACKAGE,BLACK,202
BLACKISH RED MC.,3R0
NAVIGATION PACKAGE,BLACKISH RED MC.,3R0
LEATHER PACKAGE,BLACKISH RED MC.,3R0
LEATHER PACKAGE,DK.BLUE MC.,8S6
NAVIGATION PACKAGE,DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
WHITE PEARL CS.,062,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,WHITE PEARL CS.,062,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,SILVER ME.,1G7,NO.1:REFER ILLUST.
SILVER ME.,1G7,NO.1:REFER ILLUST.
ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.
BLACK,202,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,BLACK,202,NO.1:REFER ILLUST.
BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,DK.BLUE MC.,8S6,NO.1:REFER ILLUST.
DK.BLUE MC.,8S6,NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
PRE-COLLISION PACKAGE,NO.2:REFER ILLUST.
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
4892530040FILTER, HEIGHT CONTROL
main48925-30040
90105C0177
main90105-C0177
9015950311
main90159-50311
90159C0008
main90159-C0008
9017906349
main90179-06349
27 parts on this diagram · 2 diagrams in section
