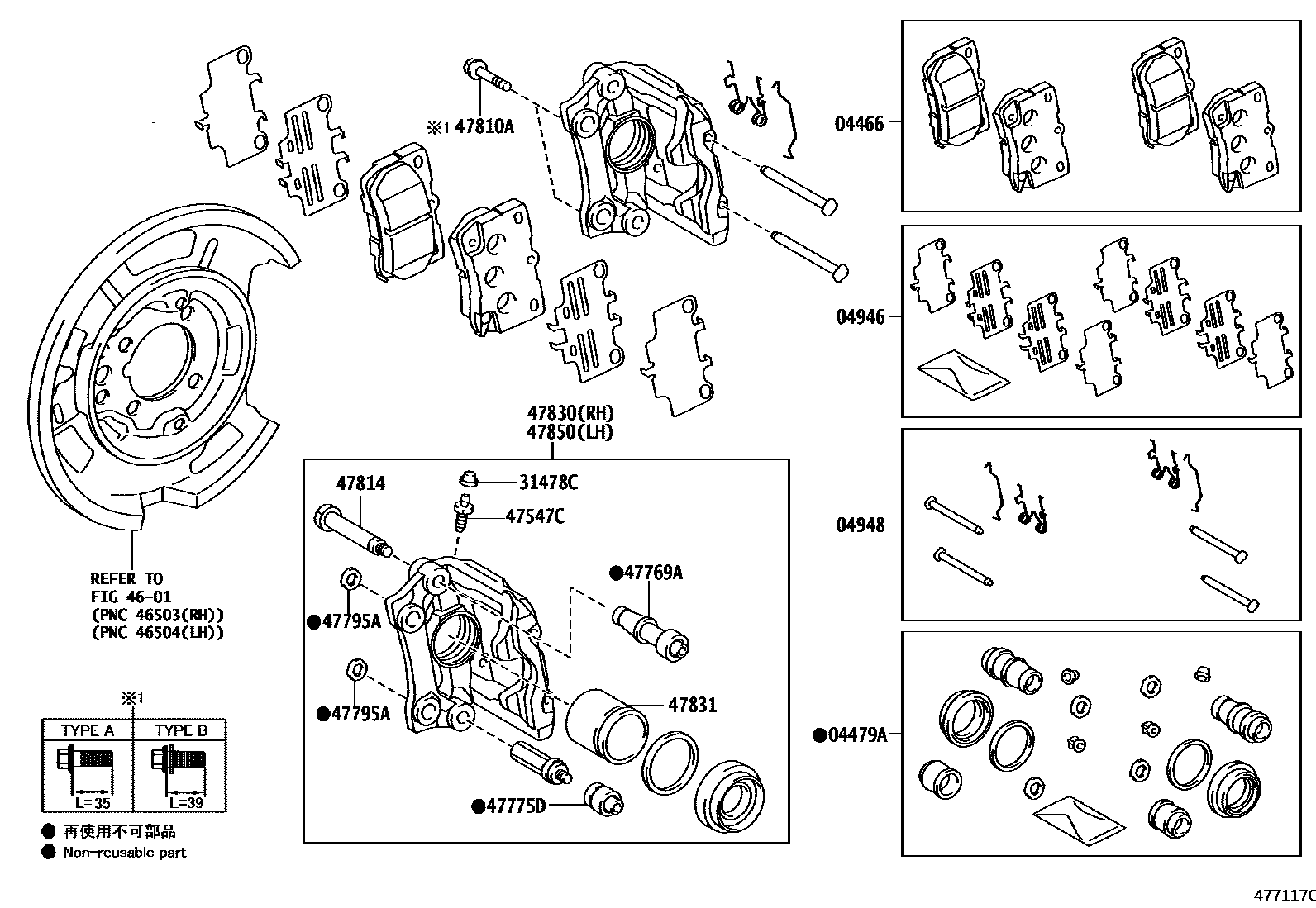

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30230iGRS20#200912-201501

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0N030iUZS200201008-201207

main04479-0P020iGRS20#200912-201009

sub04479-0N030

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0P010iGRS20#,UZS200200912-201207

04948FITTING KIT, DISC BRAKE, REAR

main04948-0N020iUZS200200912-201207

main04948-0P020iGRS20#200912-201207

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010iGRS20#,UZS200200912-201207

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS20#,UZS200200912-201207

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-0P010iGRS20#,UZS200200912-201207

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-0P011iGRS20#200912-201009

main47875-30341iUZS200201008-201207

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRS20#,UZS200200912-201207

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS20#,UZS200200912-201207

main90105-10525iGRS20#201207-201308

TYPE A:REFER ILLUST.

main90119-12416iGRS20#201308-201501

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS20#,UZS200200912-201207

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0N021iUZS200200912-201207

main47830-0N040iGRS20#200912-201008

main47830-0N041iGRS20#201008-201207

main47830-0N041iGRS20#201207-201308

PNC 47810A=TYPE A

main47830-0N042iGRS20#201308

PNC 47810A=TYPE B

47831PISTON, REAR DISC BRAKE

main47831-30300iGRS20#,UZS200200912-201207

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0N021iUZS200200912-201207

main47850-0N040iGRS20#200912-201008

main47850-0N041iGRS20#201008-201207

main47850-0N041iGRS20#201207-201308

PNC 47810A=TYPE A

main47850-0N042iGRS20#201308

PNC 47810A=TYPE B

15 parts on this diagram · 1 diagram in section
