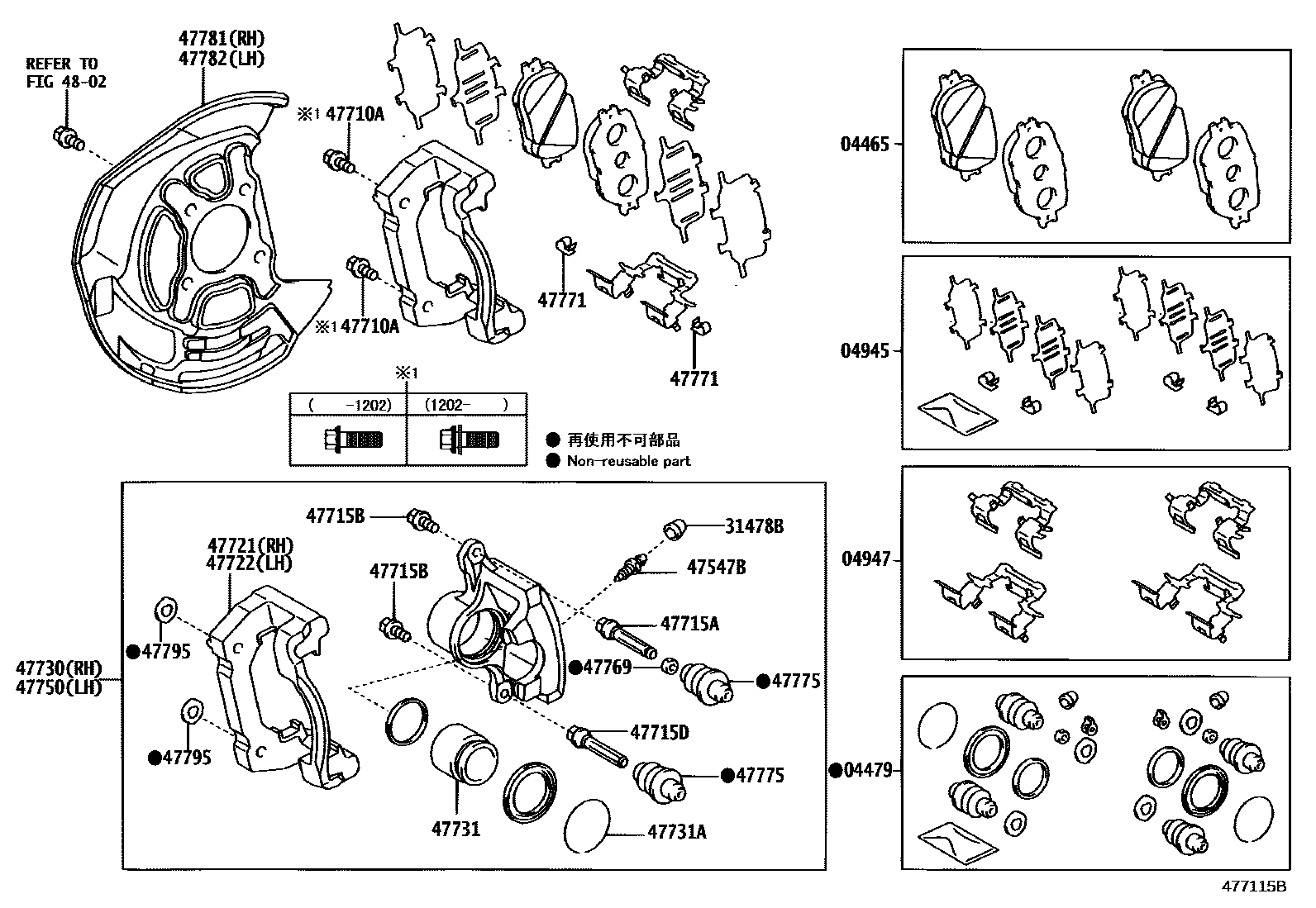

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30330iGRS20#200912-201207

MARK NBK D6893H

sub04465-30480

main04465-30430iUZS200200912-201112

MARK ADVICS PV565H

sub04465-30470

main04465-30470iUZS200201112-201207

MARK ADVICS PV565H

sub04465-30510

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0N031iGRS20#200912-201207

main04479-50130iUZS200200912-201207

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0P010iGRS20#200912-201207

main04945-30321iUZS200200912-201111

sub04945-30350

main04945-30330iUZS200201112-201207

sub04945-30350

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iUZS200200912-201207

main04947-30140iGRS20#200912-201207

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iGRS20#200912-201207

main31478-14010iUZS200200912-201207

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGRS20#200912-201207

main47547-50010iUZS200200912-201207

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iGRS20#,UZS200201202-201501

*12-1.25PX45-30

main91552-K1240iGRS20#,UZS200200912-201202

*12-1.25PX40-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0P010iGRS20#200912-201207

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGRS20#200912-201501

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0P010iGRS20#200912-201207

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0P010iGRS20#200912-201007

main47721-0P011iGRS20#201007-201207

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-0P010iGRS20#200912-201007

main47721-0P011iGRS20#201007-201207

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0P010iGRS20#200912-201007

main47730-0P011iGRS20#201007-201207

main47730-22460iUZS200200912-201207

47731PISTON, FRONT DISC BRAKE

main47731-33070iGRS20#200912-201207

sub47731-30570

main47731-50070iUZS200200912-201207

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iGRS20#200912-201207

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0P010iGRS20#200912-201007

main47750-0P011iGRS20#201007-201207

main47750-22460iUZS200200912-201207

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iGRS20#200912-201207

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iGRS20#200912-201207

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iGRS20#200912-201207

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0N010iGRS20#200912-201501

main47781-22200iUZS200200912-201207

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0N010iGRS20#200912-201501

main47782-22200iUZS200200912-201207

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iGRS20#200912-201207

4802

23 parts on this diagram · 2 diagrams in section
