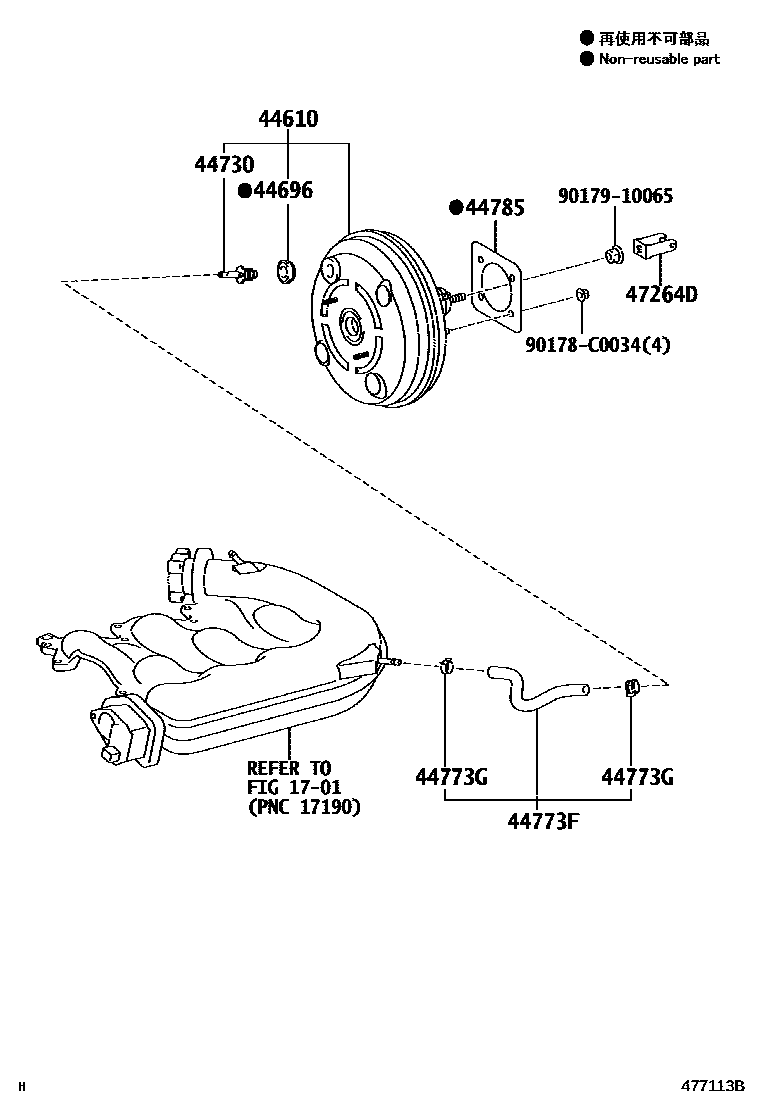

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0N040iGRS20#200912-201208

main44610-0N041iGRS20#201208-201501

main44610-0N050iUZS200200912-201207

44696GROMMET, CHECK VALVE

main90080-48071iGRS20#200912-201207

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGRS20#200912-201501

main44730-20170iUZS200200912-201207

44773FHOSE, UNION TO CHECK VALVE

main44750-0P010iGRS20#200912-201207

main44773-30611iUZS200200912-201207

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGRS20#200912-201207

main96133-41500iUZS200200912-201207

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS20#,UZS200200912-201207

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0N010iGRS20#,UZS200200912-201207

90178C0034

main90178-C0034

9017910065

main90179-10065

10 parts on this diagram · 2 diagrams in section
