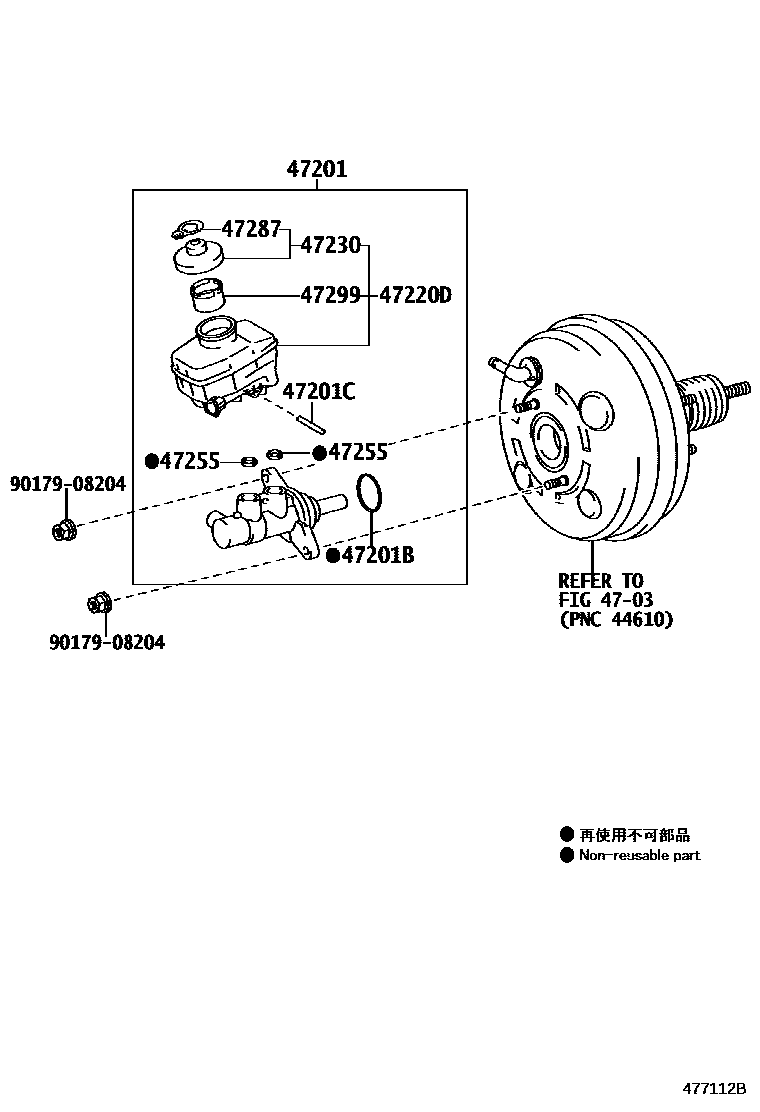

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0N020iGRS20#,UZS200200912-201202

sub47201-0N021

main47201-0N021iGRS20#,UZS200201203-201207

sub47201-0N022

main47201-0N022iGRS20#201207

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRS20#,UZS200200912-201207

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRS20#,UZS200200912-201207

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0N020iGRS20#,UZS200200912-201207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iGRS20#,UZS200200912-201207

sub47230-0R030

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGRS20#,UZS200200912-201207

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRS20#,UZS200200912-201207

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRS20#,UZS200200912-201207

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
