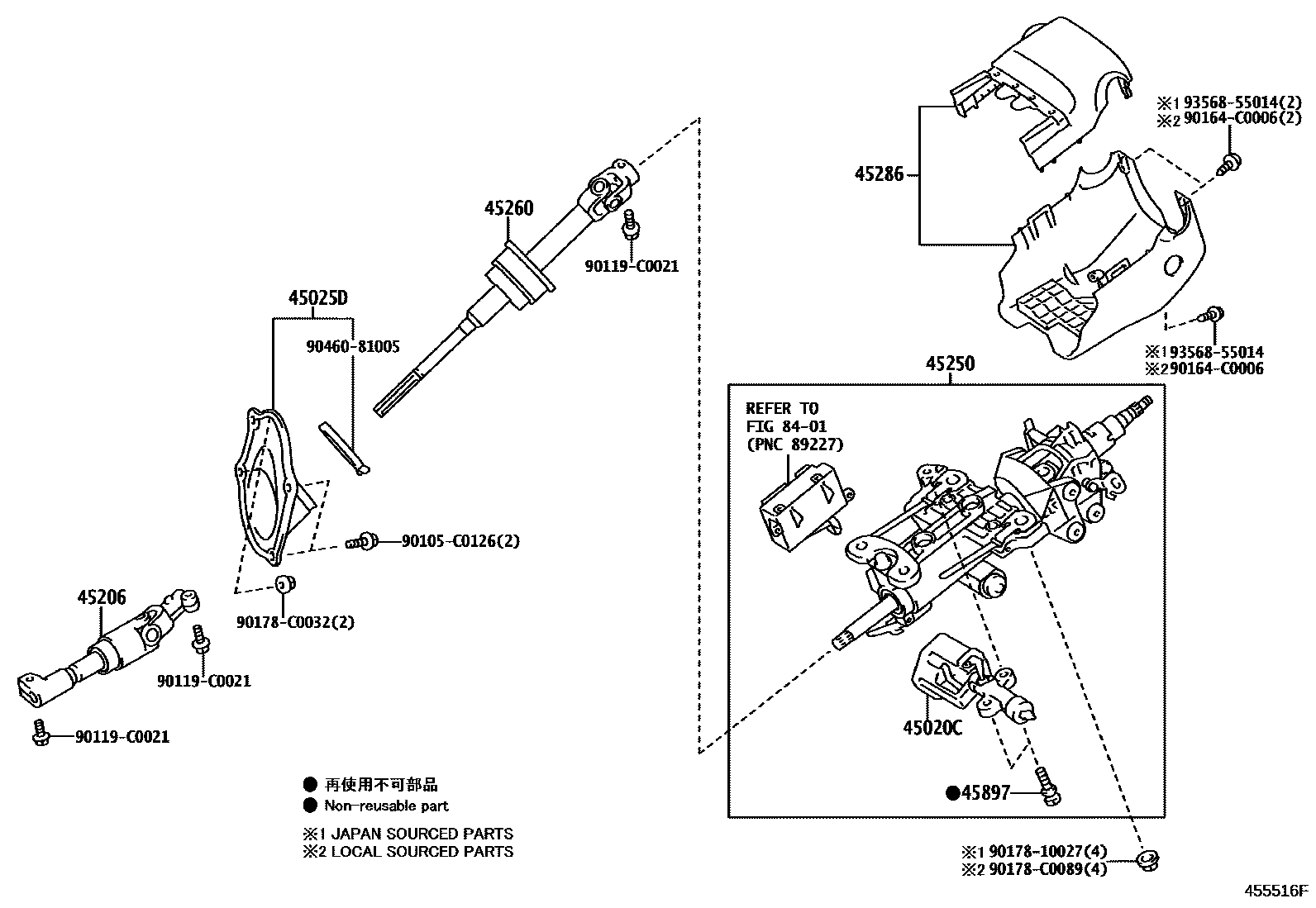

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0N030iGRS202,UZS200200912-201501

main45020-0N040iGRS208200912-201501

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0N010iGRS20#200912-201207

main45025-30380iUZS200200912-201207

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-0N030iGRS20#,UZS200200912-201207

main45206-0N031iGRS20#201207

45250COLUMN ASSY, STEERING

main45250-0N030iGRS202,UZS200200912-201501

main45250-0N040iGRS208..ROYAL200912-201211

sub45250-0N041

main45250-0N041iGRS208..ROYAL201212-201501

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0N020iGRS20#200912-201207

45286COVER, STEERING COLUMN

main45286-0N901-C0iGRS202,UZS200200912-201207

BLACK,TRIM4#

main45286-0N901-E1iGRS20#..ROY,ROYEX,ROYVP200912-201207

DK. BROWN,TRIM0#

main45286-0N902-C0iGRS208200912-201207

BLACK,TRIM4#

main45286-0N902-E1iGRS208200912-201207

DK. BROWN,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020iGRS208200912-201207

8401

90105C0126

main90105-C0126

90119C0021

main90119-C0021

90164C0006

main90164-C0006

9017810027

main90178-10027

90178C0032

main90178-C0032

90178C0089

main90178-C0089

9046081005

main90460-81005

9356855014

main93568-55014

16 parts on this diagram · 3 diagrams in section
