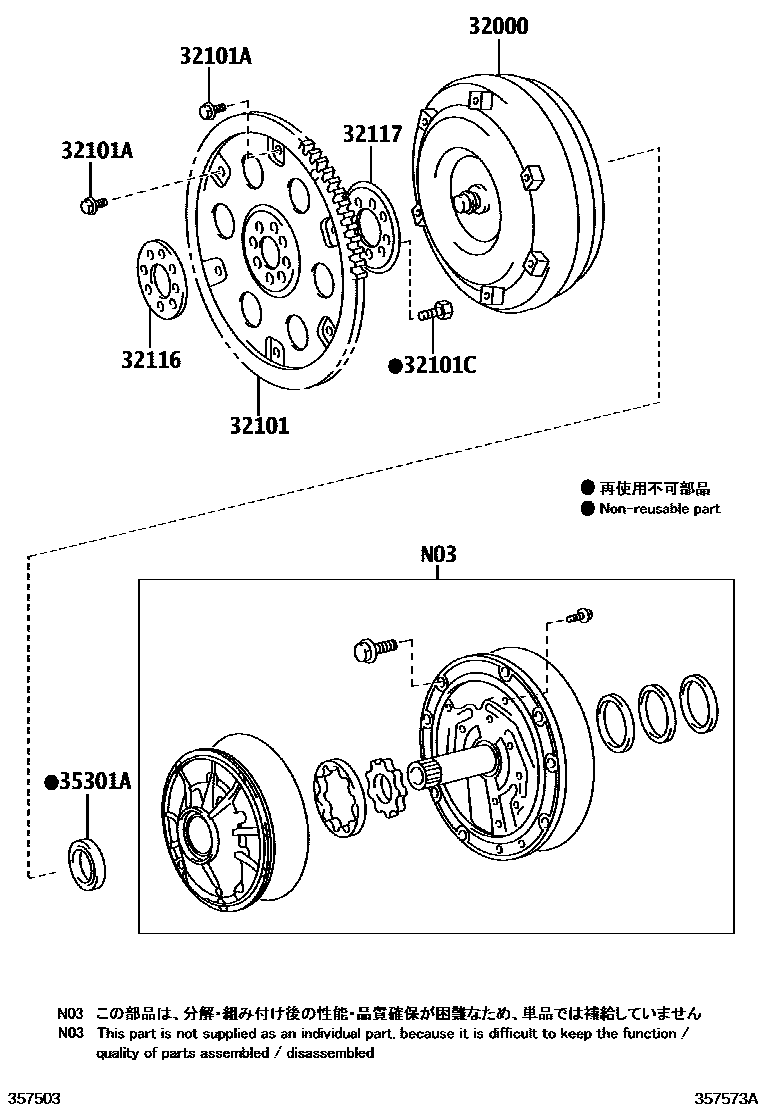

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A761E 0002 1A960E

32000CONVERTER ASSY, TORQUE

main32000-0N010iGRS202200912-201501

sub32000-30390

main32000-0P010iGRS208200912-201501

sub32000-30400

main32000-50040iUZS200200912-201207

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0P010iGRS20#200912-201207

main32101-50010iUZS200200912-201207

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iGRS20#,UZS200200912-201207

*9-1.25PX11-8,BLACK

main90105-09006iGRS20#,UZS200200912-201207

*9-1.25PX11-8.5,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGRS20#201003-201207

*10-1.25PX18-13

main90105-10048iGRS20#200912-201003

*10-1.25PX18-13,(J)

main90105-A0022iGRS20#200912-201003

*10-1.25PX18-13,(L)

sub90105-10048

main90910-02129iUZS200200912-201207

*10-1.25PX23-16,(J)

main90910-A2002iUZS200200912-201207

*10-1.25PX23-16,(L)

32116SPACER, DRIVE PLATE, FRONT

main32116-0P010iGRS20#201011-201207

(L)

main32116-0P010iGRS20#201207

main32116-32020iGRS20#200912-201011

main32116-32020iGRS20#201011-201207

(J)

main32116-50010iUZS200200912-201207

32117SPACER, DRIVE PLATE, REAR

main32117-0P010iGRS20#201011-201207

(L)

main32117-0P010iGRS20#201207

main32117-30030iGRS20#200912-201011

main32117-30030iGRS20#201011-201207

(J)

main32117-50010iUZS200200912-201207

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iGRS20#,UZS200200912-201209

main90311-38083iGRS20#201209

(J)

main90311-C0018iGRS20#201209

(L)

sub90311-38083

7 parts on this diagram · 2 diagrams in section
