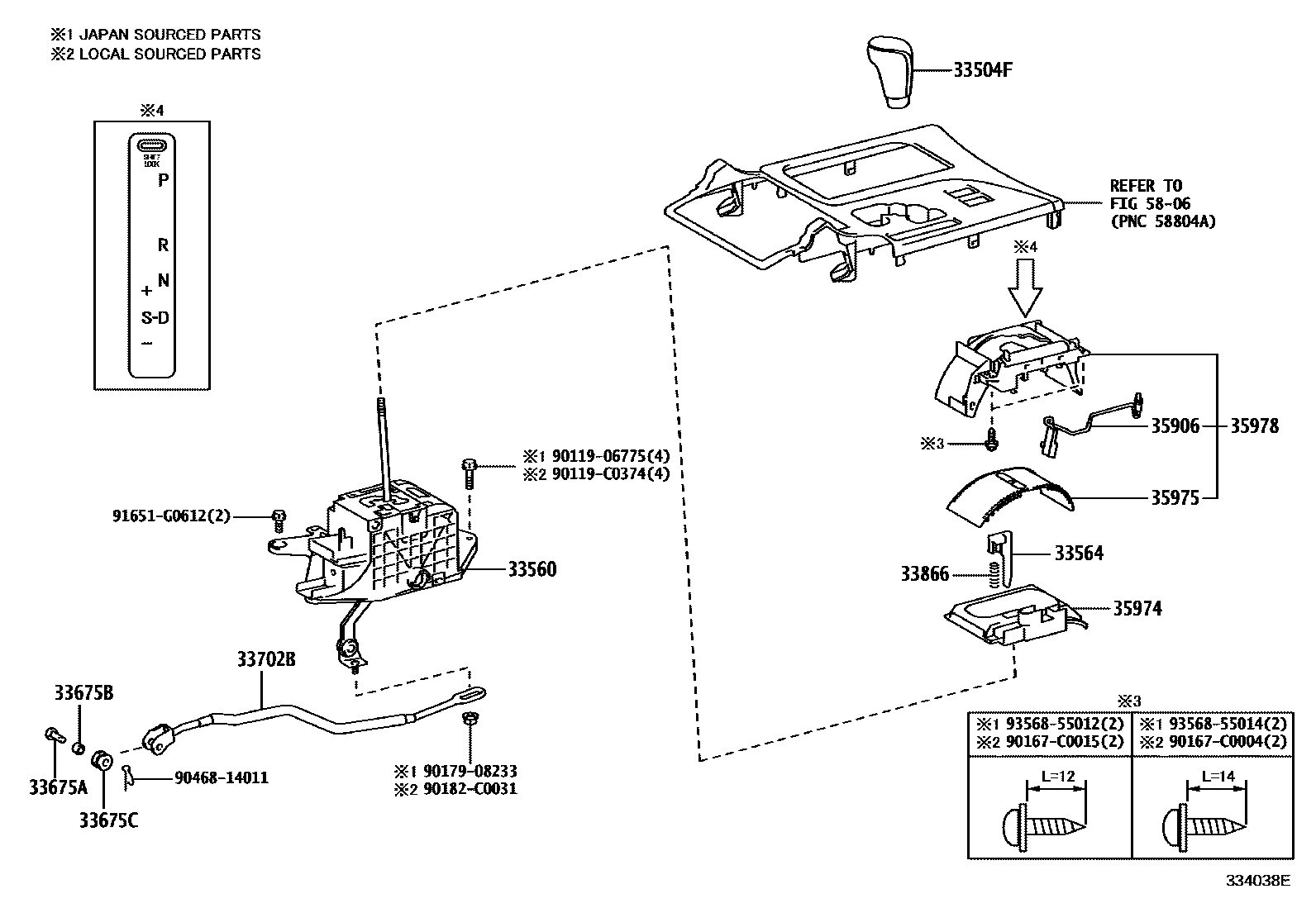

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM4#
DK. BROWN,TRIM0#
BLACK,TRIM4#
DK. BROWN,TRIM0#
33560UNIT ASSY, SHIFT LOCK CONTROL
33564LINK, SHIFT LOCK RELEASE, NO.1
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33866SPRING, SHIFT LOCK RELEASE
35906WIRE SUB-ASSY, INDICATOR LAMP
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
5806
9011906775
main90119-06775
90119C0374
main90119-C0374
90167C0004
main90167-C0004
90167C0015
main90167-C0015
9017908233
main90179-08233
90182C0031
main90182-C0031
9046814011
main90468-14011
91651G0612
main91651-G0612
9356855012
main93568-55012
9356855014
main93568-55014
23 parts on this diagram · 1 diagram in section
