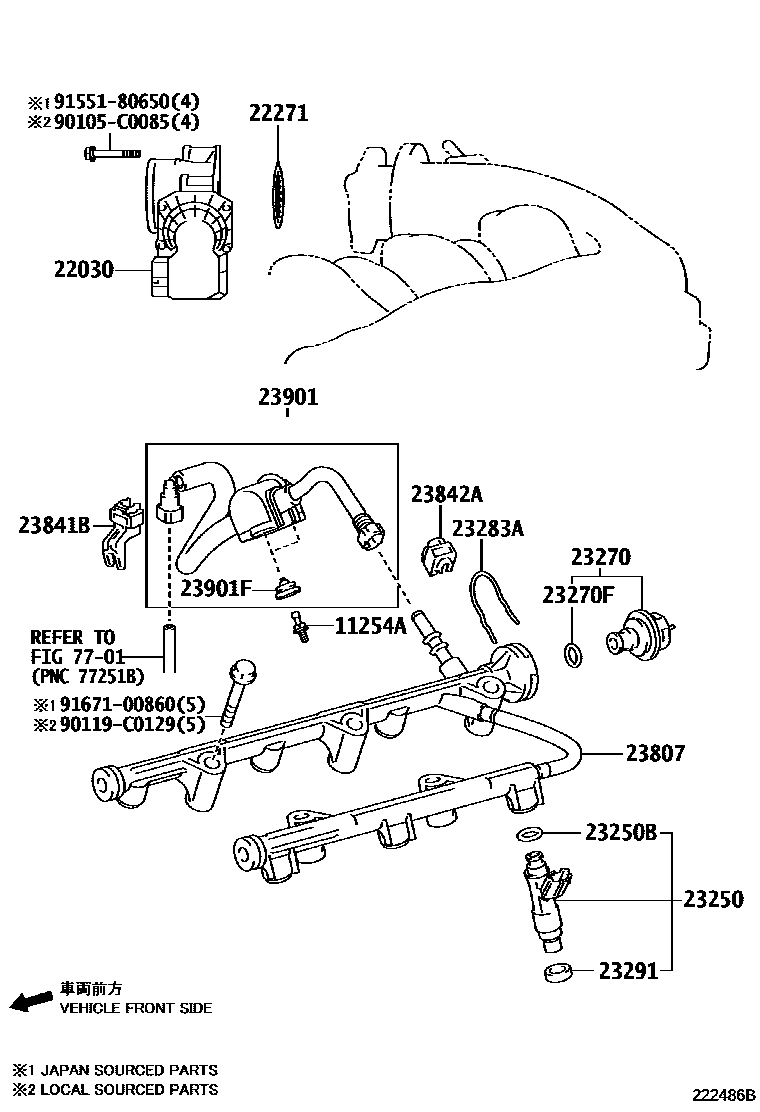

FUEL INJECTION SYSTEM
11254ABRACKET, V-BANK COVER
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
NO.1
NO.2
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23270FRING, O(FOR PULSATION DAMPER)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901FGROMMET(FOR FUEL TUBE)
7701
90105C0085
main90105-C0085
90119C0129
main90119-C0129
9155180650
main91551-80650
9167100860
main91671-00860
19 parts on this diagram · 2 diagrams in section
