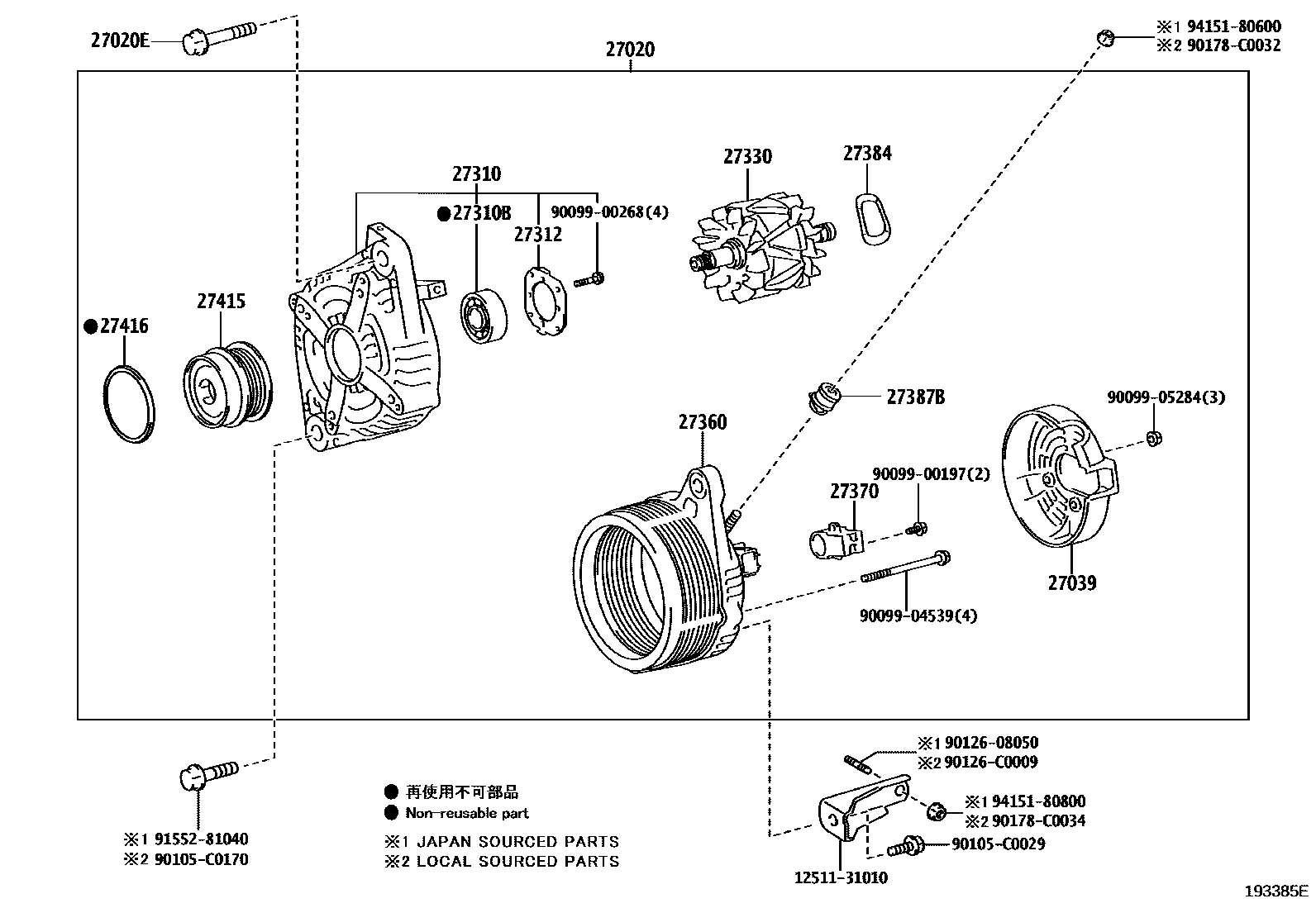

ALTERNATOR

0001 112V 150A 0002 112V 150A

27020ALTERNATOR ASSY

main27060-0P183i3GRFE,5GRFE..GRS20#200912-201207

12V 150A

main27060-50400i3UZFE..UZS200200912-201207

12V 150A

27020EBOLT(FOR ALTERNATOR)

main90105-C0098i3GRFE,5GRFE..GRS20#200912-201207

main90119-10791i3UZFE..UZS200200912-201207

27039COVER, ALTERNATOR REAR END

main27039-0P070i3GRFE,5GRFE..GRS20#201009-201207

main27039-27060i3GRFE,5GRFE..GRS20#200912-201009

main27039-50430i3UZFE..UZS200200912-201207

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P180i3GRFE,5GRFE..GRS20#200912-201207

main27310-50310i3UZFE..UZS200200912-201207

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i3GRFE,5GRFE..GRS20#201207-201212

main90068-10042i3GRFE,5GRFE..GRS20#200912-201207

main90099-10223i3UZFE..UZS200200912-201207

27312PLATE, RETAINER

main27312-0M070i3GRFE,5GRFE..GRS20#201308

main27312-72100i3GRFE,5GRFE,3UZFE..GRS20#,UZS200200912-201308

27330ROTOR ASSY, ALTERNATOR

main27330-0P180i3GRFE,5GRFE..GRS20#200912-201207

main27330-58460i3UZFE..UZS200200912-201207

27360COIL ASSY, ALTERNATOR

main27360-0P180i3GRFE,5GRFE..GRS20#200912-201207

main27360-50450i3UZFE..UZS200200912-201207

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030i3GRFE,5GRFE..GRS20#200912-201207

main27370-58460i3UZFE..UZS200200912-201207

27384WASHER

main27384-50030i3GRFE,5GRFE..GRS20#200912-201207

27387INSULATOR, TERMINAL

main27387-50310i3UZFE..UZS200200912-201207

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110i3GRFE,5GRFE..GRS20#200912-201207

main27387-0T030i3GRFE,5GRFE..GRS20#201207-201212

sub27387-0H110

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i3GRFE,5GRFE..GRS20#200912-201306

sub27415-0W131

main27415-0W131i3GRFE,5GRFE..GRS20#201307-201501

27416CAP, ALTERNATOR PULLEY

main27416-0W050i3GRFE,5GRFE..GRS20#200912-201501

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90105C0029

main90105-C0029

90105C0170

main90105-C0170

9012608050

main90126-08050

90126C0009

main90126-C0009

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9155281040

main91552-81040

9415180600

main94151-80600

9415180800

main94151-80800

28 parts on this diagram · 2 diagrams in section
