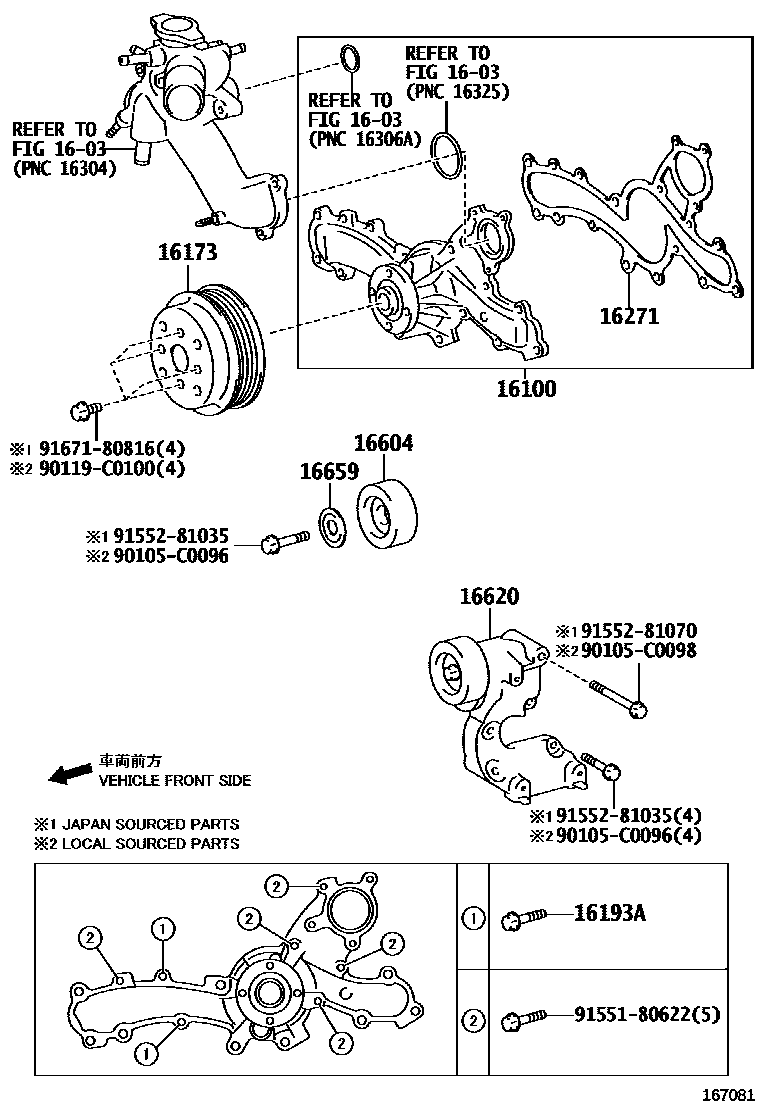

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09361i3GRFE,5GRFE..GRS20#200912-201207

sub16100-09362

main16100-59276i3UZFE..UZS200200912

16173PULLEY, WATER PUMP

main16173-0P020i3GRFE,5GRFE..GRS20#201207

main16173-0P020i3GRFE,5GRFE..GRS20#200912-201207

(L)

main16173-31010i3GRFE,5GRFE..GRS20#200912-201207

(J)

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i3GRFE,5GRFE..GRS20#200912-201207

16271GASKET, WATER PUMP

main16271-0P020i3GRFE,5GRFE..GRS20#200912-201207

main16271-50010i3UZFE..UZS200200912

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-0P030i3GRFE,5GRFE..GRS20#200912-201207

(L)

main16604-0P030i3GRFE,5GRFE..GRS20#201207

main16604-31010i3GRFE,5GRFE..GRS20#200912-201207

(J)

main16604-50030i3UZFE..UZS200200912

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P020i3GRFE,5GRFE..GRS20#200912-201206

(L)

sub16620-0P021

main16620-0P021i3GRFE,5GRFE..GRS20#201206-201207

main16620-0W101i3UZFE..UZS200200912

main16620-31021i3GRFE,5GRFE..GRS20#200912-201206

(J)

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i3GRFE,5GRFE..GRS20#200912-201207

main16659-50022i3UZFE..UZS200200912

90105C0096

main90105-C0096

90105C0098

main90105-C0098

90119C0100

main90119-C0100

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

15 parts on this diagram · 2 diagrams in section
