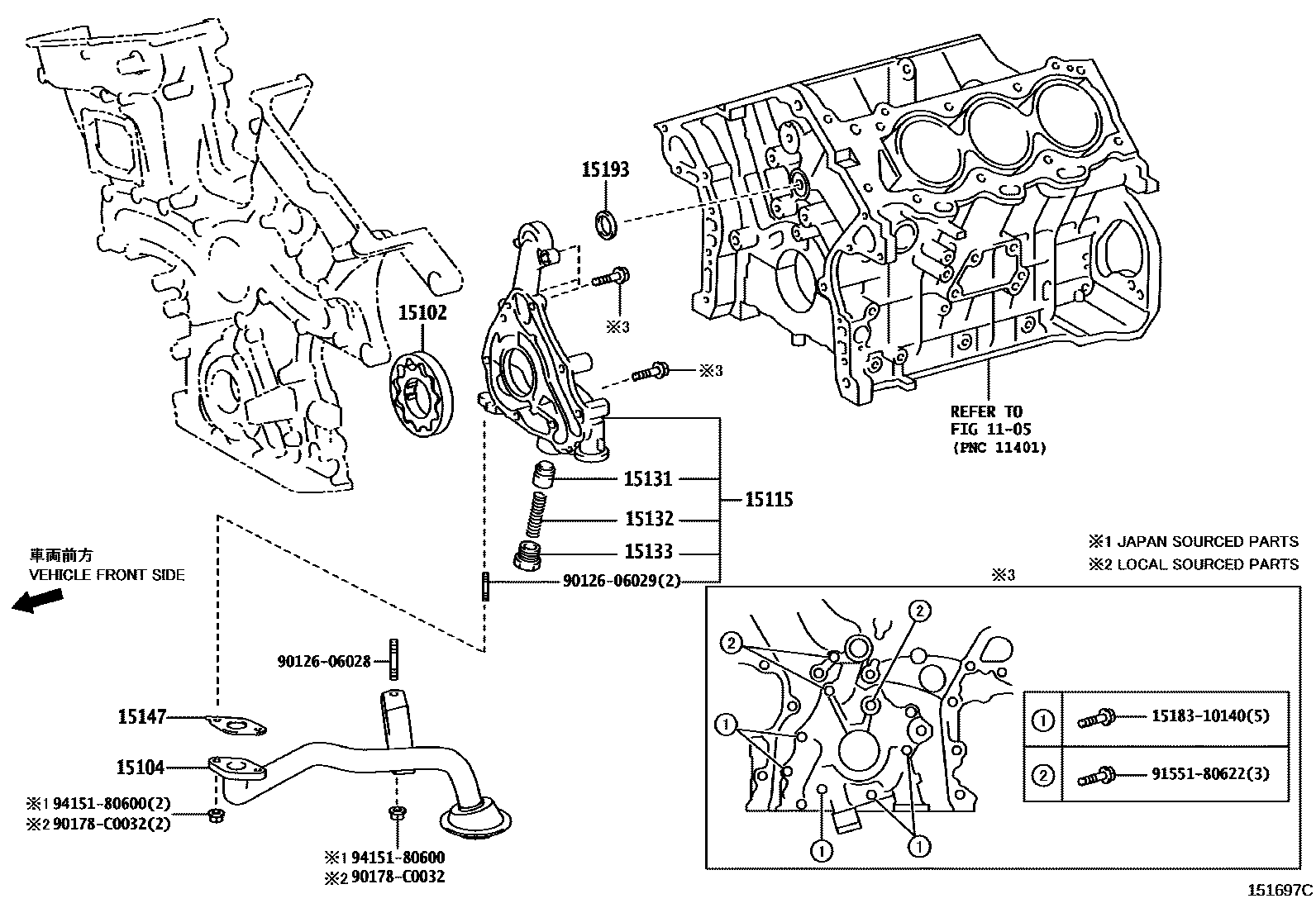

ENGINE OIL PUMP

0001 1 0002 1

1105

15102ROTOR SET, OIL PUMP

main15103-0P020i3GRFE,5GRFE..GRS20#201207

15104STRAINER SUB-ASSY, OIL

main15104-31080i3GRFE,5GRFE..GRS20#200912-201207

main15104-50210i3UZFE..UZS200200912

15115COVER, OIL PUMP

main15115-0P020i3GRFE,5GRFE..GRS20#200912-201207

main15115-50040i3UZFE..UZS200200912

15131VALVE, OIL PUMP RELIEF

main15131-17010i3GRFE,5GRFE..GRS20#200912-201207

main15131-46040i3UZFE..UZS200200912

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i3GRFE,5GRFE..GRS20#200912-201207

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i3UZFE..UZS200200912

main15133-28020i3GRFE,5GRFE..GRS20#200912-201207

15147GASKET, OIL STRAINER

main15147-0P010i3GRFE,5GRFE..GRS20#200912-201207

(L)

main15147-31060i3GRFE,5GRFE..GRS20#200912-201207

(J)

main15147-50011i3UZFE..UZS200200912

15193GASKET, OIL PUMP

main15193-0P020i3GRFE,5GRFE..GRS20#201207

(L)

main15193-31020i3GRFE,5GRFE..GRS20#200912-201207

(J)

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9012606028

main90126-06028

9012606029

main90126-06029

90178C0032

main90178-C0032

9155180622

main91551-80622

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
