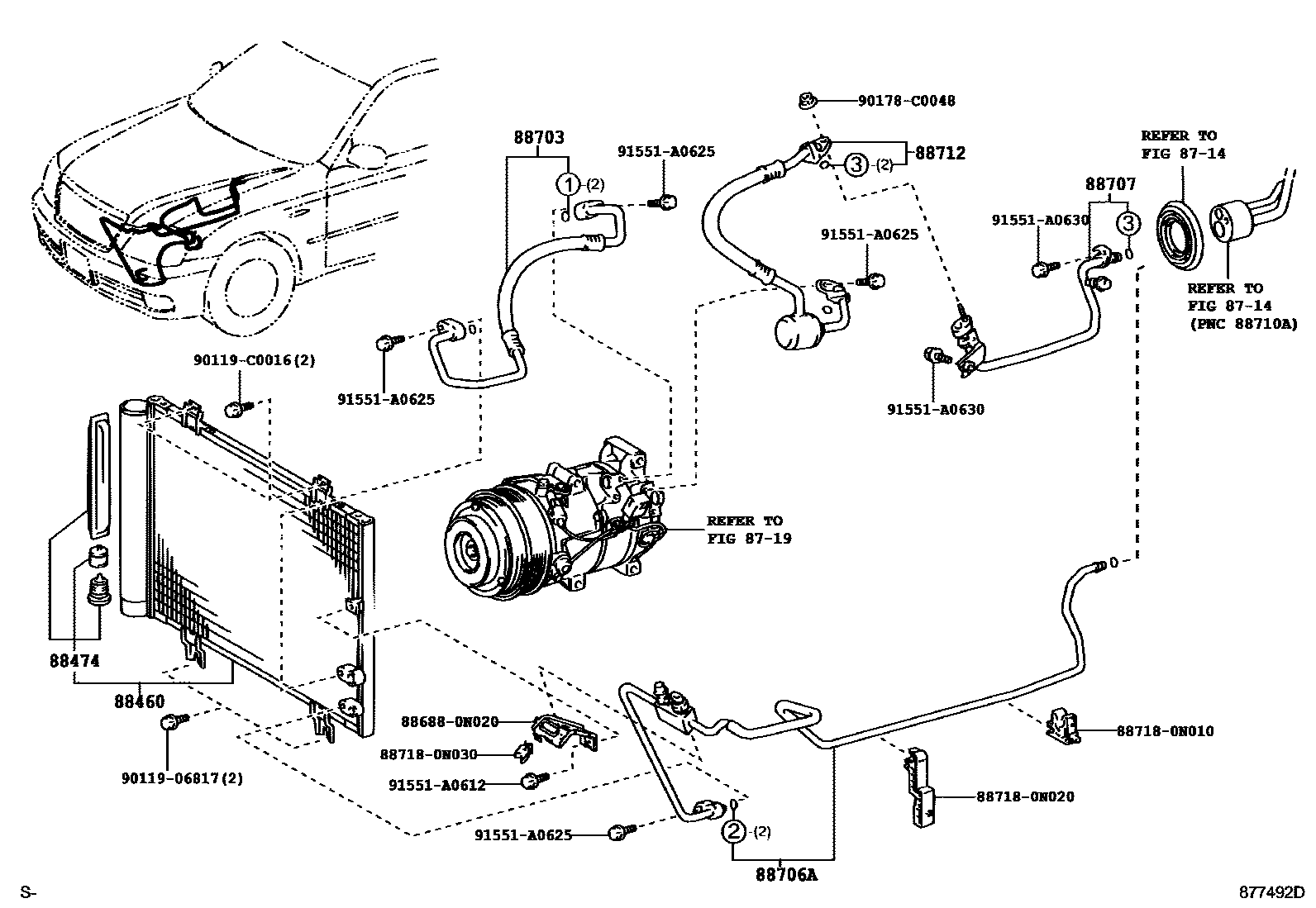

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1SINGLE AIR CONDITIONER 0002 1DUAL AIR CONDITIONER 0003 1REAR 0004 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-0N010iGRS18#200502

88474DRYER, COOLER

main88474-17010iGRS18#200502

88703HOSE SUB-ASSY, DISCHARGE

main88711-0N010iGRS18#200502

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0N010iGRS182..ROYG200502

main88706-0N020iGRS18#..25,25ROY,ROY,ROYEX200502

88707PIPE SUB-ASSY, SUCTION

main88707-0N010iGRS182..ROYG200502

main88707-0N020iGRS18#..25,25ROY,ROY,ROYEX200502-200511

sub88707-0P010

main88707-0P010iGRS18#..25,25ROY,ROY,ROYEX200512

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0N010iGRS18#200502

886880N020BRACKET, COOLER DIAPHRAGM

main88688-0N020

887180N010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0N010

887180N020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0N020

887180N030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0N030

9011906817

main90119-06817

90119C0016

main90119-C0016

90178C0048

main90178-C0048

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

18 parts on this diagram · 4 diagrams in section
