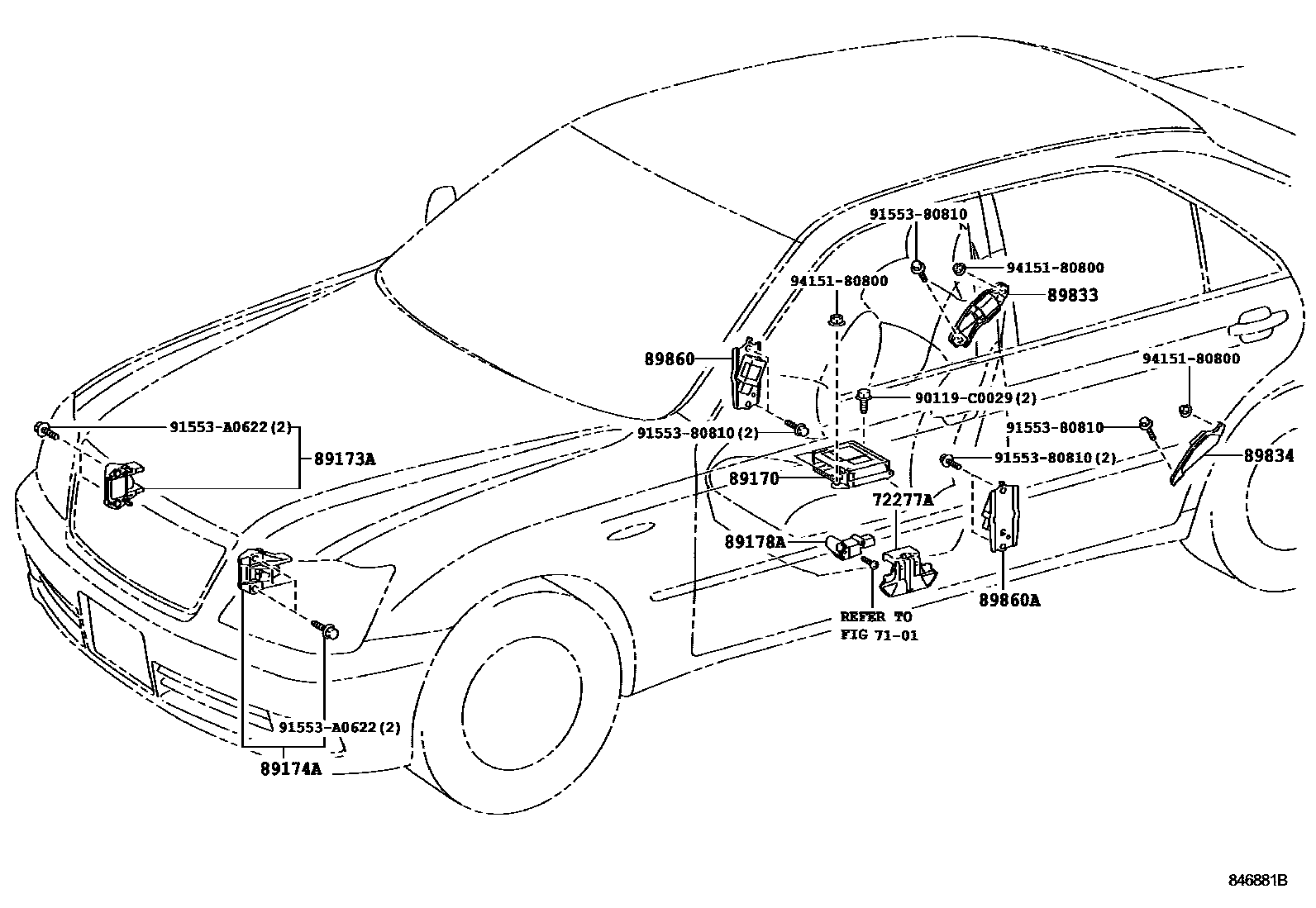

AIR BAG

7101

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGRS18#200502-200911

89170SENSOR ASSY, AIRBAG

main89170-0N010iGRS182..ROY,ROYG200502

main89170-0N020iGRS188..25200502

89173ASENSOR, AIRBAG, FRONT RH

main89173-49325iGRS18#200502

89174ASENSOR, AIRBAG, FRONT LH

main89173-49325iGRS18#200502

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33031iGRS182200502-200509

main89178-33050iGRS18#200510-200911

89833SENSOR, AIRBAG, REAR RH

main89833-30010iGRS182..ROY,ROYG200502

89834SENSOR, AIRBAG, REAR LH

main89834-30010iGRS182..ROY,ROYG200502

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-30120iGRS182..ROY,ROYG200502

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-30120iGRS182..ROY,ROYG200502

90119C0029

main90119-C0029

9155380810

main91553-80810

91553A0622

main91553-A0622

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
