WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CABLE BOND 0009 1CONNECTOR

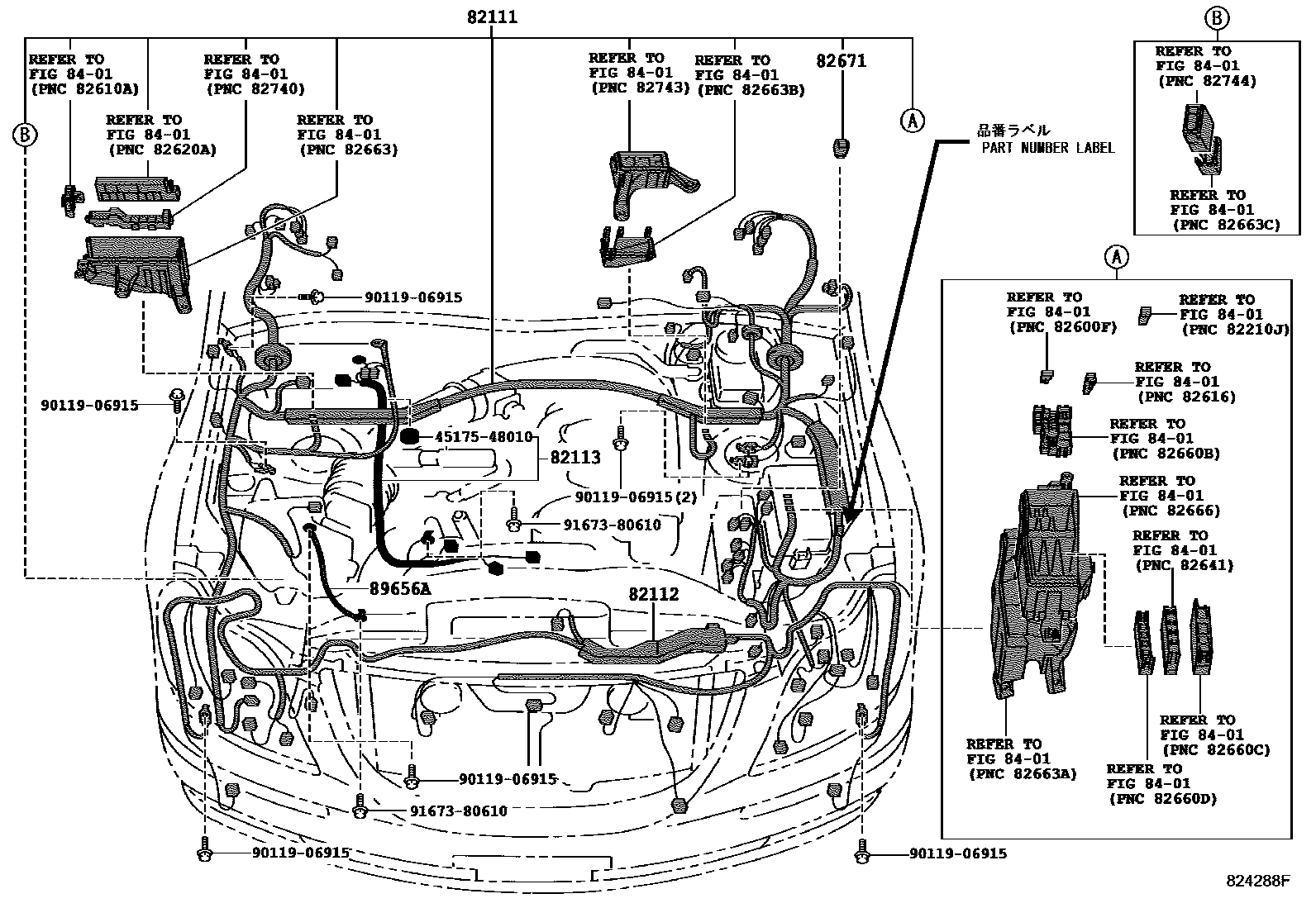

82111WIRE, ENGINE ROOM MAIN

main82111-0N010iGRS182¥128,000200502-200608

sub82111-0N011

main82111-0N011iGRS182200609-200611

main82111-0N050iGRS188..25ROY200510-200608

sub82111-0N051

main82111-0N051iGRS188..25ROY200609

main82111-0N060iGRS188..25200510-200608

sub82111-0N061

main82111-0N061iGRS188..25200609

main82111-0N070iGRS182200611

82112WIRE, ENGINE ROOM, NO.2

main82112-0N010iGRS18#¥23,400200502

82113WIRE, ENGINE ROOM, NO.3

main82113-0N010iGRS18#¥10,100200502

82671BLOCK, JUNCTION

main82671-30350iGRS18#¥570200502

8401

89656AWIRE, POWER STEERING EARTH

main89656-30010iGRS18#¥1,420200502

4517548010RING, CONTACT, NO.2

main45175-48010

9011906915

main90119-06915¥60

9167380610

main91673-80610¥70

9 parts on this diagram · 9 diagrams in section
