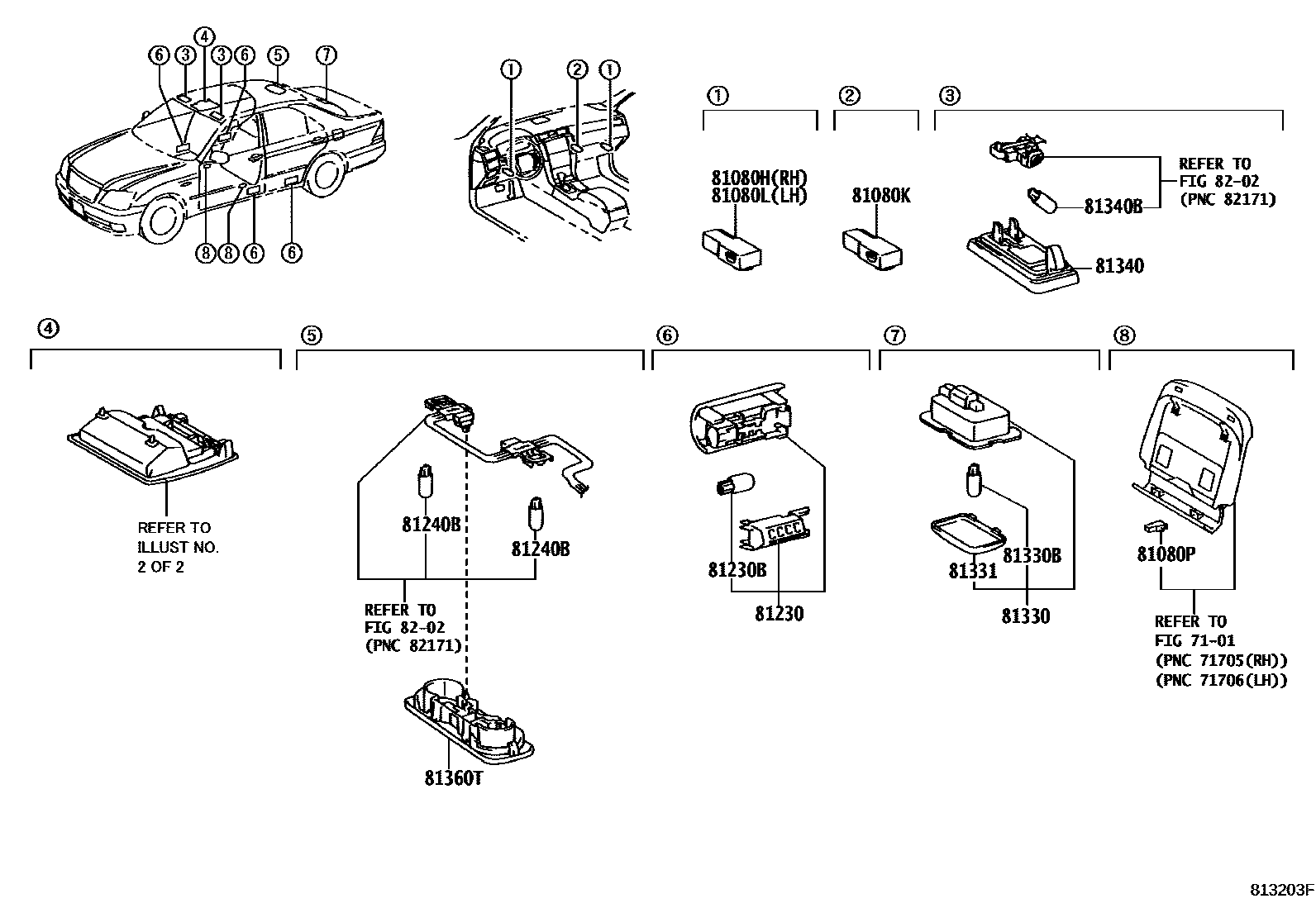

INTERIOR LAMP
7101
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81230LAMP ASSY, COURTESY
sub81230-30200
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240BBULB, ROOM LAMP, NO.1
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#
LT.GRAY,TRIM2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
8202
15 parts on this diagram · 2 diagrams in section
