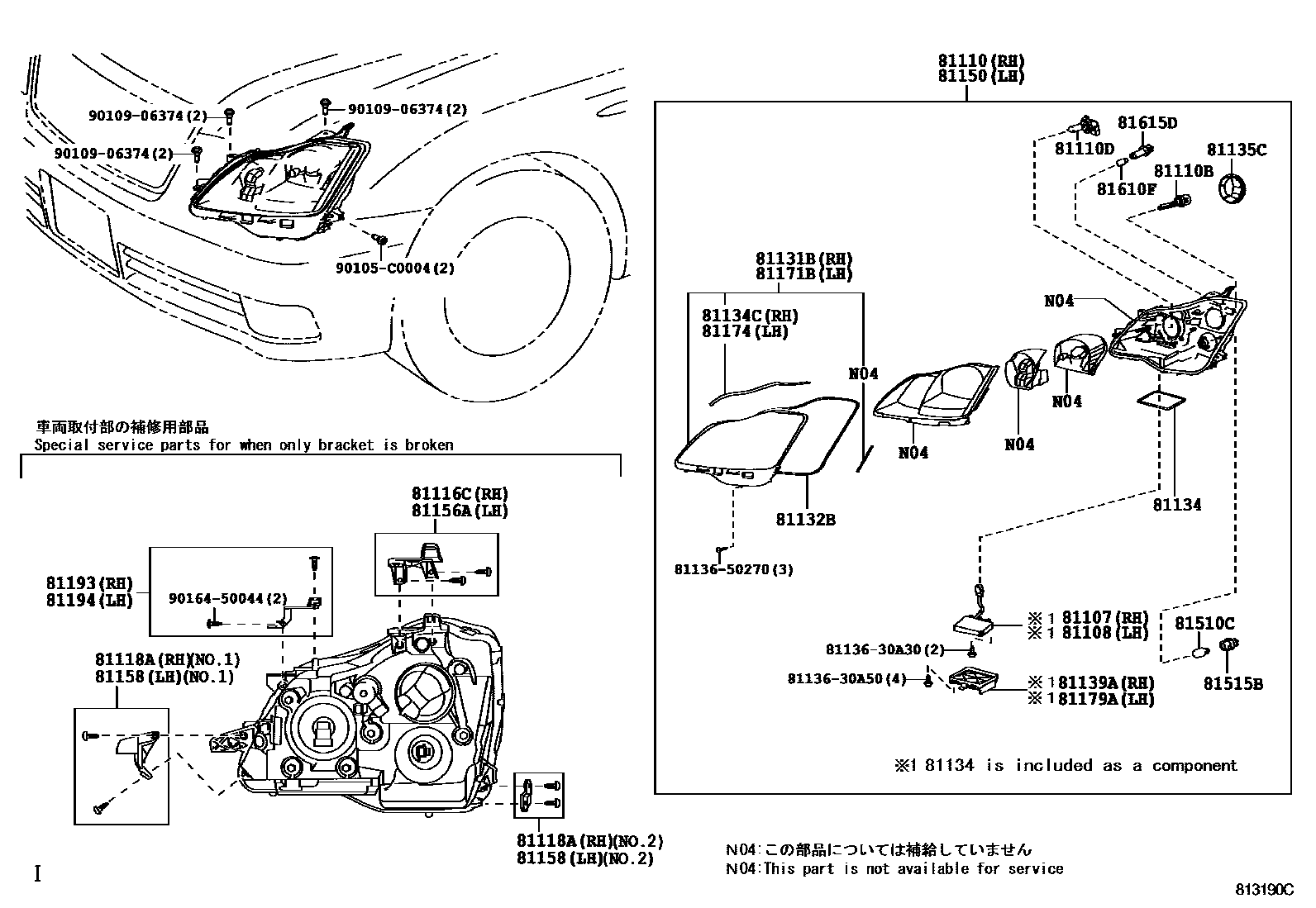

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
85V 35W
81110DBULB(FOR HEADLAMP, NO.2)
12V65W(SAE),60W(ECE)
81116CBRACKET, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81134CGASKET, HEADLAMP BODY, RH
81135CCOVER, HEADLAMP BACK, NO.1
81139ACOVER, LIGHT CONTROL COMPUTER, RH
81156ABRACKET, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81174GASKET, HEADLAMP BODY, LH
81179ACOVER, LIGHT CONTROL COMPUTER, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
8113630A30PROTECTOR, HEADLAMP, NO.1 RH
main81136-30A30
8113630A50PROTECTOR, HEADLAMP, NO.1 RH
main81136-30A50
8113650270PROTECTOR, HEADLAMP, NO.1 RH
main81136-50270
90105C0004
main90105-C0004
9010906374
main90109-06374
9016450044
main90164-50044
31 parts on this diagram · 1 diagram in section
