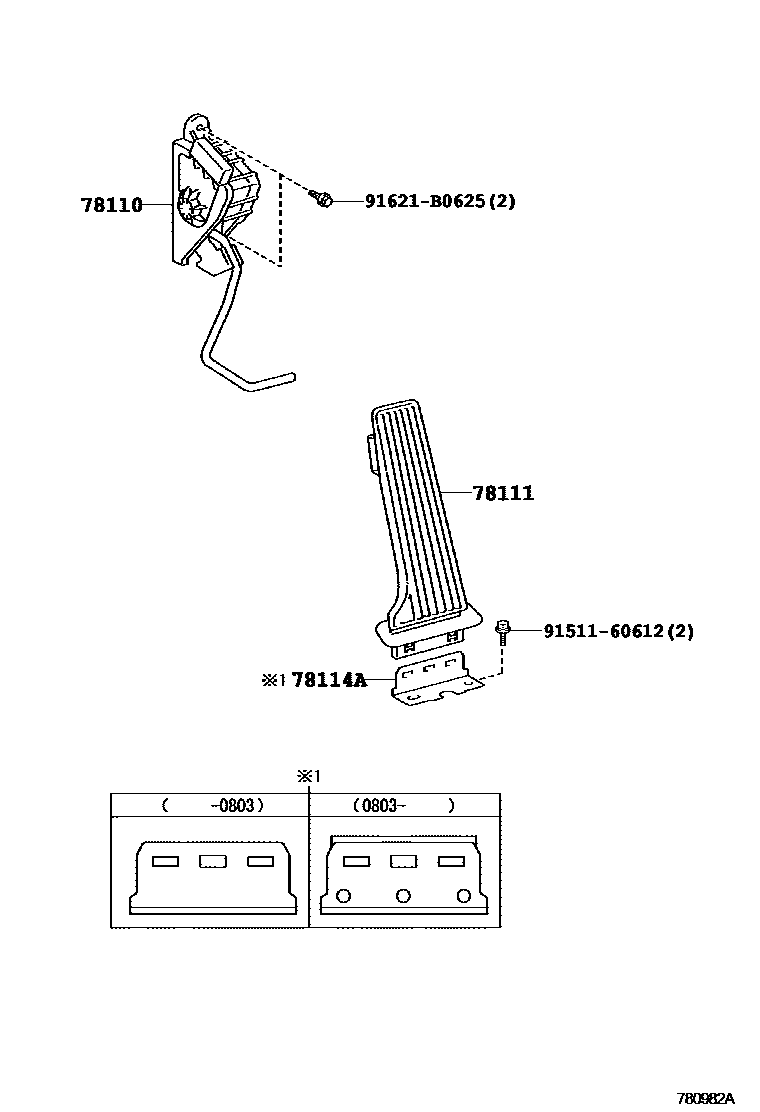

ACCELERATOR LINK

78110ROD ASSY, ACCELERATOR PEDAL

main78120-30A10iGRS18#200502

sub78120-30A11

78111PEDAL, ACCELERATOR

main78111-30130iGRS18#200502

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-30130iGRS18#200803

main78114-30100iGRS18#200502-200803

9151160612

main91511-60612

91621B0625

main91621-B0625

5 parts on this diagram · 1 diagram in section
