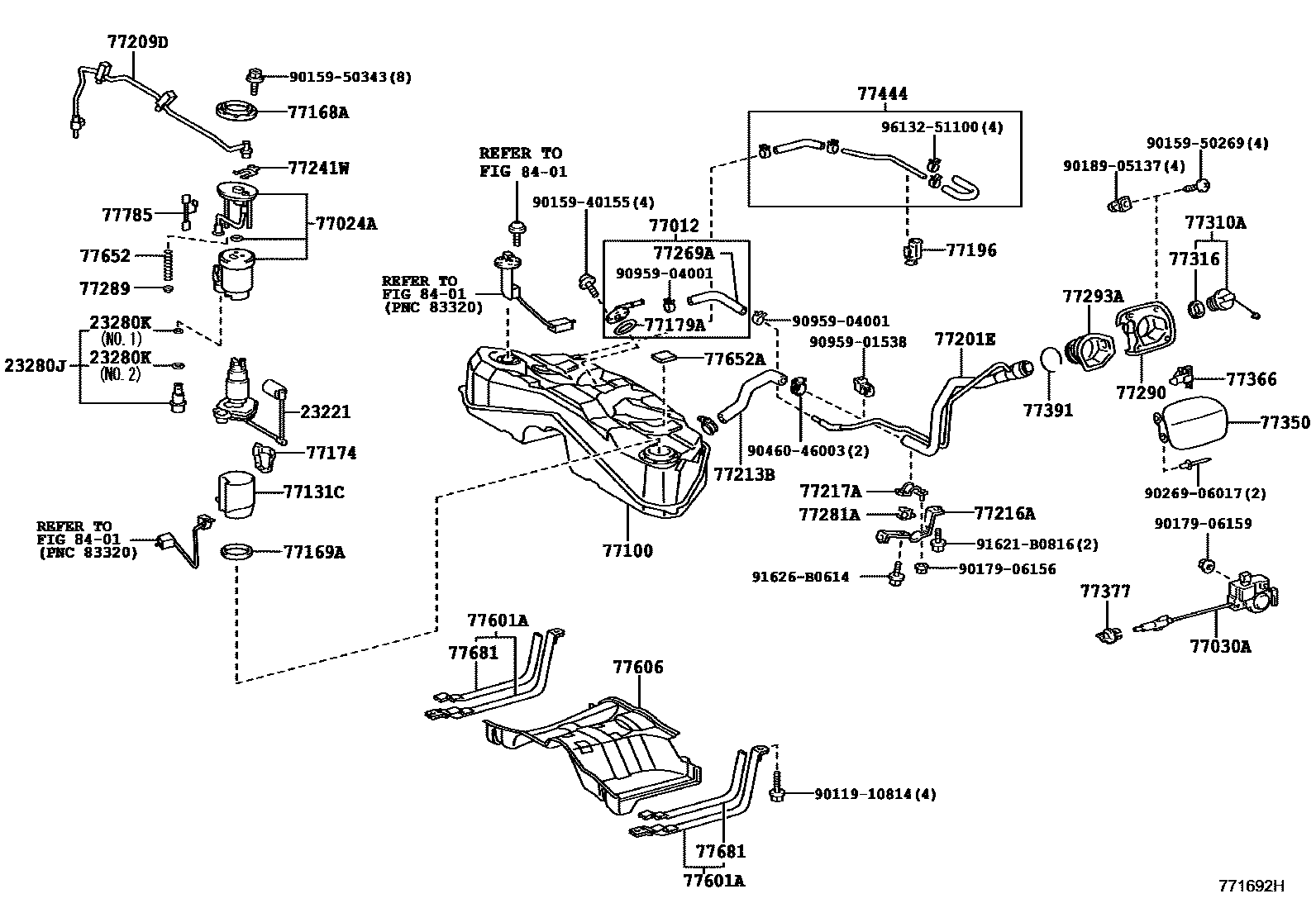

FUEL TANK & TUBE
23221PUMP, FUEL
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77030ALOCK ASSY, FUEL LID W/MOTOR
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
sub77216-30051
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
sub77217-30131
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77281ACLAMP, FUEL FILLER PIPE
77289HOLDER, FUEL TANK PIPE SETTING
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77785HARNESS, FUEL PUMP
sub77785-0N011
8401
9011910814
main90119-10814
9015940155
main90159-40155
9015950269
main90159-50269
9015950343
main90159-50343
9017906156
main90179-06156
9017906159
main90179-06159
9018905137
main90189-05137
9026906017
main90269-06017
9046046003
main90460-46003
9095901538
main90959-01538
9095904001
main90959-04001
91621B0816
main91621-B0816
91626B0614
main91626-B0614
9613251100
main96132-51100
52 parts on this diagram · 2 diagrams in section
