E
EPC Data

SIDE MOULDING

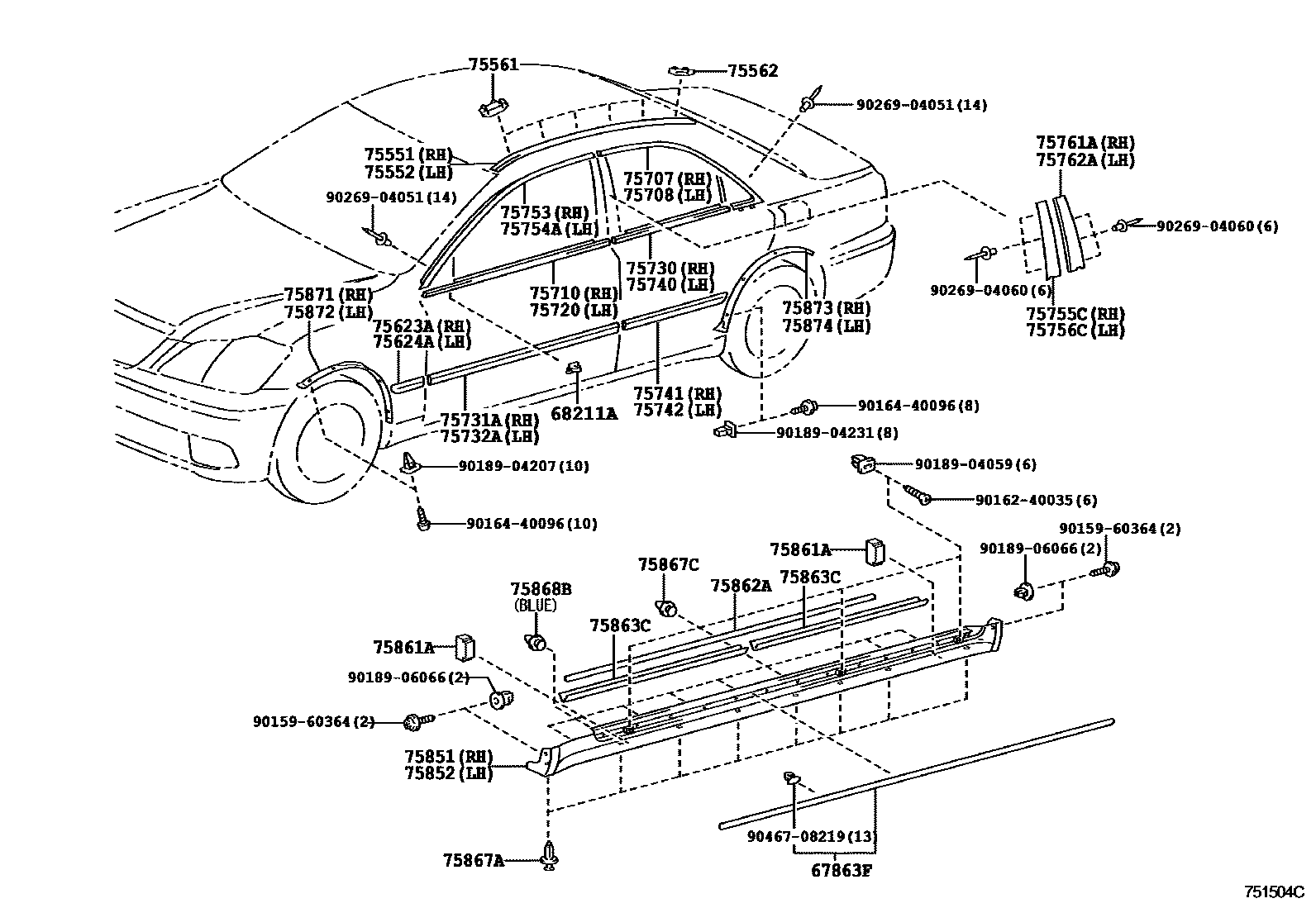

Parts diagram
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-0N010i200502
68211ACLIP, DOOR BELT MOULDING
main68211-30180i200502
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-0N010-A0i200502-200911
WHITE PEARL CS.,062
main75551-0N010-B0i200502-200911
SILVER ME.,1C0
main75551-0N010-C0i200502-200911
BLACK,202
main75551-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
main75551-0N010-J0i200502-200911
DARK BLUE MC.,8P8
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-0N010-A0i200502-200911
WHITE PEARL CS.,062
main75552-0N010-B0i200502-200911
SILVER ME.,1C0
main75552-0N010-C0i200502-200911
BLACK,202
main75552-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
main75552-0N010-J0i200502-200911
DARK BLUE MC.,8P8
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-0N020i200502
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75562-0N020i200502
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-0N010-A0i200502-200911
WHITE PEARL CS.,062
sub75623-0N903
sub75615-0N010
main75623-0N010-B0i200502-200911
SILVER ME.,1C0
sub75623-0N903
sub75615-0N010
main75623-0N010-C0i200502-200911
BLACK,202
sub75623-0N903
sub75615-0N010
main75623-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
sub75623-0N903
sub75615-0N010
main75623-0N010-J0i200502-200911
DARK BLUE MC.,8P8
sub75623-0N903
sub75615-0N010
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-0N010-A0i200502-200911
WHITE PEARL CS.,062
sub75624-0N903
sub75616-0N010
main75624-0N010-B0i200502-200911
SILVER ME.,1C0
sub75624-0N903
sub75616-0N010
main75624-0N010-C0i200502-200911
BLACK,202
sub75624-0N903
sub75616-0N010
main75624-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
sub75624-0N903
sub75616-0N010
main75624-0N010-J0i200502-200911
DARK BLUE MC.,8P8
sub75624-0N903
sub75616-0N010
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
main75707-0N010i200502
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
main75708-0N010i200502
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-0N010i200502
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-0N010i200502
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-0N010i200502
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-0N010-A0i200502-200911
WHITE PEARL CS.,062
sub75731-0N903
sub75737-0N010
main75731-0N010-B0i200502-200911
SILVER ME.,1C0
sub75731-0N903
sub75737-0N010
main75731-0N010-C0i200502-200911
BLACK,202
sub75731-0N903
sub75737-0N010
main75731-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
sub75731-0N903
sub75737-0N010
main75731-0N010-J0i200502-200911
DARK BLUE MC.,8P8
sub75731-0N903
sub75737-0N010
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-0N010-A0i200502-200911
WHITE PEARL CS.,062
sub75732-0N903
sub75738-0N010
main75732-0N010-B0i200502-200911
SILVER ME.,1C0
sub75732-0N903
sub75738-0N010
main75732-0N010-C0i200502-200911
BLACK,202
sub75732-0N903
sub75738-0N010
main75732-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
sub75732-0N903
sub75738-0N010
main75732-0N010-J0i200502-200911
DARK BLUE MC.,8P8
sub75732-0N903
sub75738-0N010
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-0N010i200502
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-0N010-A0i200502-200911
WHITE PEARL CS.,062
sub75741-0N903
sub75747-0N010
main75741-0N010-B0i200502-200911
SILVER ME.,1C0
sub75741-0N903
sub75747-0N010
main75741-0N010-C0i200502-200911
BLACK,202
sub75741-0N903
sub75747-0N010
main75741-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
sub75741-0N903
sub75747-0N010
main75741-0N010-J0i200502-200911
DARK BLUE MC.,8P8
sub75741-0N903
sub75747-0N010
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-0N010-A0i200502-200911
WHITE PEARL CS.,062
sub75742-0N903
sub75748-0N010
main75742-0N010-B0i200502-200911
SILVER ME.,1C0
sub75742-0N903
sub75748-0N010
main75742-0N010-C0i200502-200911
BLACK,202
sub75742-0N903
sub75748-0N010
main75742-0N010-D0i200502-200911
BLACKISH RED MC.,3R0
sub75742-0N903
sub75748-0N010
main75742-0N010-J0i200502-200911
DARK BLUE MC.,8P8
sub75742-0N903
sub75748-0N010
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-0N010i200502
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-0N010i200502
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-0N010i200502-200512
main75755-0N011i200512
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-0N010i200502-200512
main75756-0N011i200512
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-0N010i200502-200512
NO PAINT REQ.
main75761-0N011i200512
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-0N010i200502-200512
NO PAINT REQ.
main75762-0N011i200512
NO PAINT REQ.
75851MOULDING, ROCKER PANEL, RH
main75851-0N901i200502
75852MOULDING, ROCKER PANEL, LH
main75852-0N901i200502
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
main75861-0N010i200502
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
main75862-0N010i200502
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
main75863-0N010i200502
75867ACLIP, ROCKER PANEL MOULDING
main75867-30120i200502-200911
75867CCLIP, ROCKER PANEL MOULDING
main75867-30130i200502-200604
75868BCLIP, ROCKER PANEL MOULDING, NO.2
main75868-0N010i200604
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75871-0N010i200502
(L)
main75871-30340i200502
(J)
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75872-0N010i200502
(L)
main75872-30340i200502
(J)
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-0N010i200502
(L)
main75873-30340i200502
(J)
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-0N010i200502
(L)
main75874-30340i200502
(J)
9015960364
main90159-60364
9016240035
main90162-40035
9016440096
main90164-40096
9018904059
main90189-04059
9018904207
main90189-04207
9018904231
main90189-04231
9018906066
main90189-06066
9026904051
main90269-04051
9026904060
main90269-04060
9046708219
main90467-08219

46 parts on this diagram · 1 diagram in section
