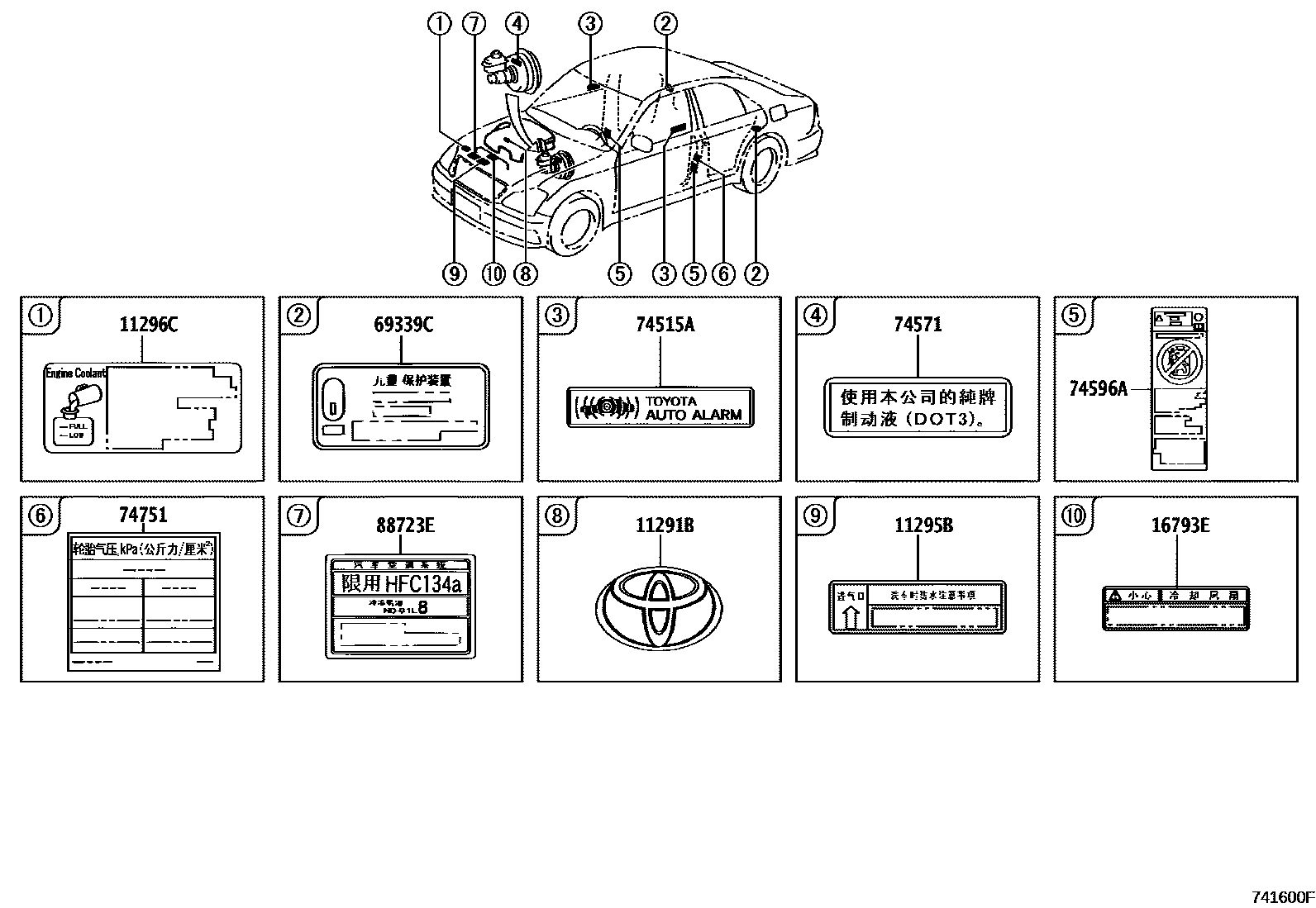

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11291BPLATE, ENGINE NAME

main11291-31050i3GRFE,5GRFE..GRS18#200502-200911

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-0P010i3GRFE,5GRFE..GRS18#200808-200911

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i3GRFE,5GRFE..GRS18#200502-200612

16793ELABEL, COOLING FAN CAUTION

main16793-15020i3GRFE,5GRFE..GRS18#200502-200911

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-06030iGRS18#200807

sub69339-06080

main69339-52020iGRS18#200502-200806

74515APLATE, THEFT WARNING

main74515-0N010iGRS18#200808

main74515-30020iGRS18#200502-200808

74571PLATE, BRAKE FLUID CAUTION

main47288-60010iGRS18#200502-200911

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12030iGRS182..ROY,ROYG200502

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0N010iGRS18#200807

main42661-30710iGRS18#200502-200806

88723ELABEL, COOLER SERVICE CAUTION

main88723-0D020iGRS18#200502

10 parts on this diagram · 2 diagrams in section
