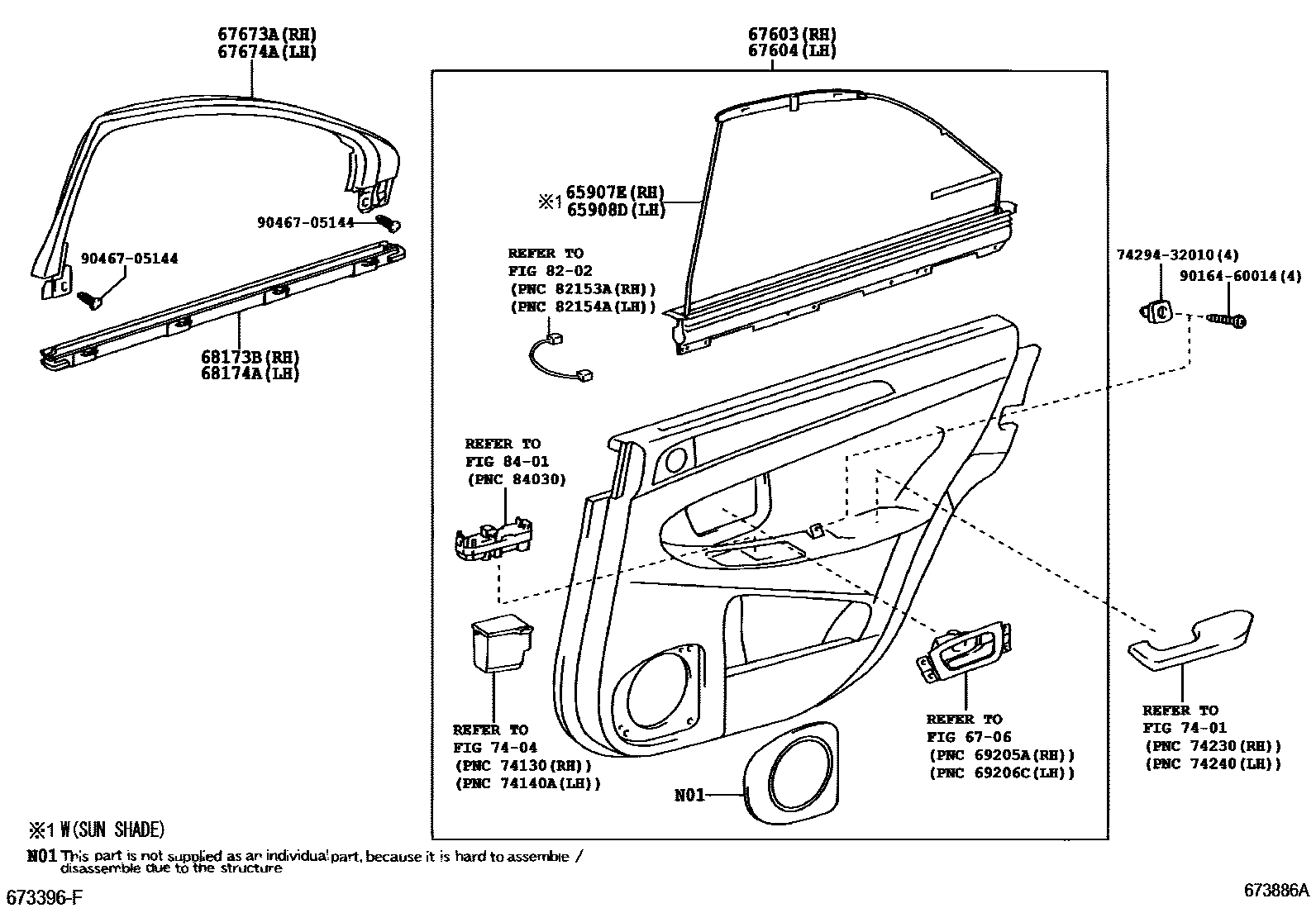

REAR DOOR PANEL & GLASS

0001 1 0002 1

65907ECURTAIN SUB-ASSY, REAR RH

main65907-30010iGRS182..ROYG200502-200802

65908DCURTAIN SUB-ASSY, REAR LH

main65908-30010iGRS182..ROYG200502-200802

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-0N010-A2iGRS18#..25,25ROY,ROYEX200502-200610

NEW IVORY,TRIM0#

sub67630-0N011

main67630-0N010-C2iGRS18#..25,25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67630-0N011

main67630-0N011-A0iGRS188..25200611-200802

NEW IVORY,TRIM0#

sub67630-0N012

main67630-0N011-C0iGRS188..25200611-200802

BLACK,TRIM2#

sub67630-0N012

main67630-0N012-A0iGRS188..25200803-200911

NEW IVORY,TRIM0#

main67630-0N012-C0iGRS188..25200803-200911

BLACK,TRIM2#

main67630-0N020-A2iGRS18#..25ROY,ROYEX200502-200610

SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#

sub67630-0N021

main67630-0N020-A2iGRS18#..25ROY,ROYEX200502-200610

NEW IVORY,TRIM0#

sub67630-0N021

main67630-0N020-C2iGRS182..ROY200502-200610

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub67630-0N021

main67630-0N020-C2iGRS18#..25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67630-0N021

main67630-0N021-A0iGRS182..ROY200611-200802

NEW IVORY,TRIM0#

sub67630-0N022

main67630-0N021-C0iGRS18#..25ROY,ROYEX200611-200802

BLACK,TRIM2#

sub67630-0N022

main67630-0N022-A0iGRS18#..25ROY,ROY,ROYEX200803-200911

NEW IVORY,TRIM0#

main67630-0N022-C0iGRS18#..25ROY,ROYEX200803-200911

BLACK,TRIM20

main67630-0N022-C0iGRS182..ROY200803-200911

BLACK,TRIM2#

main67630-0N030-A2iGRS182..ROYG200502-200610

NEW IVORY,TRIM0#

sub67630-0N031

main67630-0N030-C2iGRS182..ROYG200502-200610

BLACK,TRIM2#

sub67630-0N031

main67630-0N031-A0iGRS182..ROYG200611-200802

NEW IVORY,TRIM0#

sub67630-0N032

main67630-0N031-C0iGRS182..ROYG200611-200802

BLACK,TRIM2#

sub67630-0N032

main67630-0N032-A0iGRS182..ROYG200803-200911

NEW IVORY,TRIM0#

main67630-0N032-C0iGRS182..ROYG200803-200911

BLACK,TRIM2#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-0N010-A2iGRS18#..25,25ROY,ROYEX200502-200610

NEW IVORY,TRIM0#

sub67640-0N011

main67640-0N010-C2iGRS18#..25,25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67640-0N011

main67640-0N011-A0iGRS188..25200611-200802

NEW IVORY,TRIM0#

sub67640-0N012

main67640-0N011-C0iGRS188..25200611-200802

BLACK,TRIM2#

sub67640-0N012

main67640-0N012-A0iGRS188..25200803-200911

NEW IVORY,TRIM0#

main67640-0N012-C0iGRS188..25200803-200911

BLACK,TRIM2#

main67640-0N020-A2iGRS182..ROY200502-200610

NEW IVORY,TRIM0#

sub67640-0N021

main67640-0N020-A2iGRS182..ROY200502-200610

SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#

sub67640-0N021

main67640-0N020-C2iGRS18#..25ROY,ROYEX200502-200610

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub67640-0N021

main67640-0N020-C2iGRS18#..25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67640-0N021

main67640-0N021-A0iGRS182..ROY200611-200802

NEW IVORY,TRIM0#

sub67640-0N022

main67640-0N021-C0iGRS18#..25ROY,ROYEX200611-200802

BLACK,TRIM2#

sub67640-0N022

main67640-0N022-A0iGRS18#..25ROY,ROY,ROYEX200803-200911

NEW IVORY,TRIM0#

main67640-0N022-C0iGRS18#..25ROY,ROYEX200803-200911

BLACK,TRIM2#

main67640-0N022-C0iGRS182..ROY200803-200911

BLACK,TRIM20

main67640-0N030-A2iGRS182..ROYG200502-200610

NEW IVORY,TRIM0#

sub67640-0N031

main67640-0N030-C2iGRS182..ROYG200502-200610

BLACK,TRIM2#

sub67640-0N031

main67640-0N031-A0iGRS182..ROYG200611-200802

NEW IVORY,TRIM0#

sub67640-0N032

main67640-0N031-C0iGRS182..ROYG200611-200802

BLACK,TRIM2#

sub67640-0N032

main67640-0N032-A0iGRS182..ROYG200803-200911

NEW IVORY,TRIM0#

main67640-0N032-C0iGRS182..ROYG200803-200911

BLACK,TRIM2#

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0N010iGRS18#..25,25ROY,ROY,ROYEX200502

main67673-0N020iGRS182..ROYG200502

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0N010iGRS18#..25,25ROY,ROY,ROYEX200502

main67674-0N020iGRS182..ROYG200502

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-0N010iGRS18#200502

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-0N010iGRS18#200502

7401

7404

8202

8401

7429432010PLATE, REAR DOOR ARMREST, NO.2

main74294-32010

9016460014

main90164-60014

9046705144

main90467-05144

16 parts on this diagram · 2 diagrams in section
