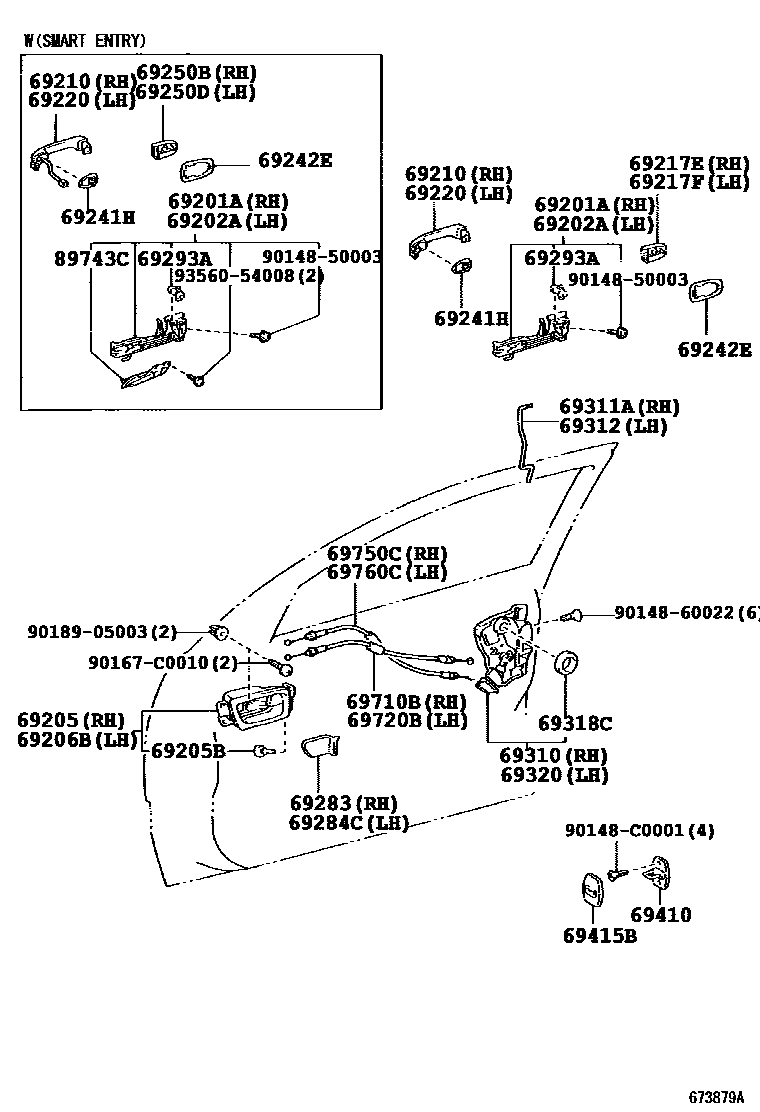

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
BLACKISH RED MC.,3R0
DARK BLUE MC.,8P8
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
BLACKISH RED MC.,3R0
DARK BLUE MC.,8P8
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69250BCOVER ASSY, DOOR OUTSIDE HANDLE
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
BLACKISH RED MC.,3R0
DARK BLUE MC.,8P8
69250DCOVER ASSY, DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
BLACKISH RED MC.,3R0
DARK BLUE MC.,8P8
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
BLACK,TRIM2#
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014850003
main90148-50003
9014860022
main90148-60022
90148C0001
main90148-C0001
90167C0010
main90167-C0010
9018905003
main90189-05003
9356054008
main93560-54008
34 parts on this diagram · 1 diagram in section
