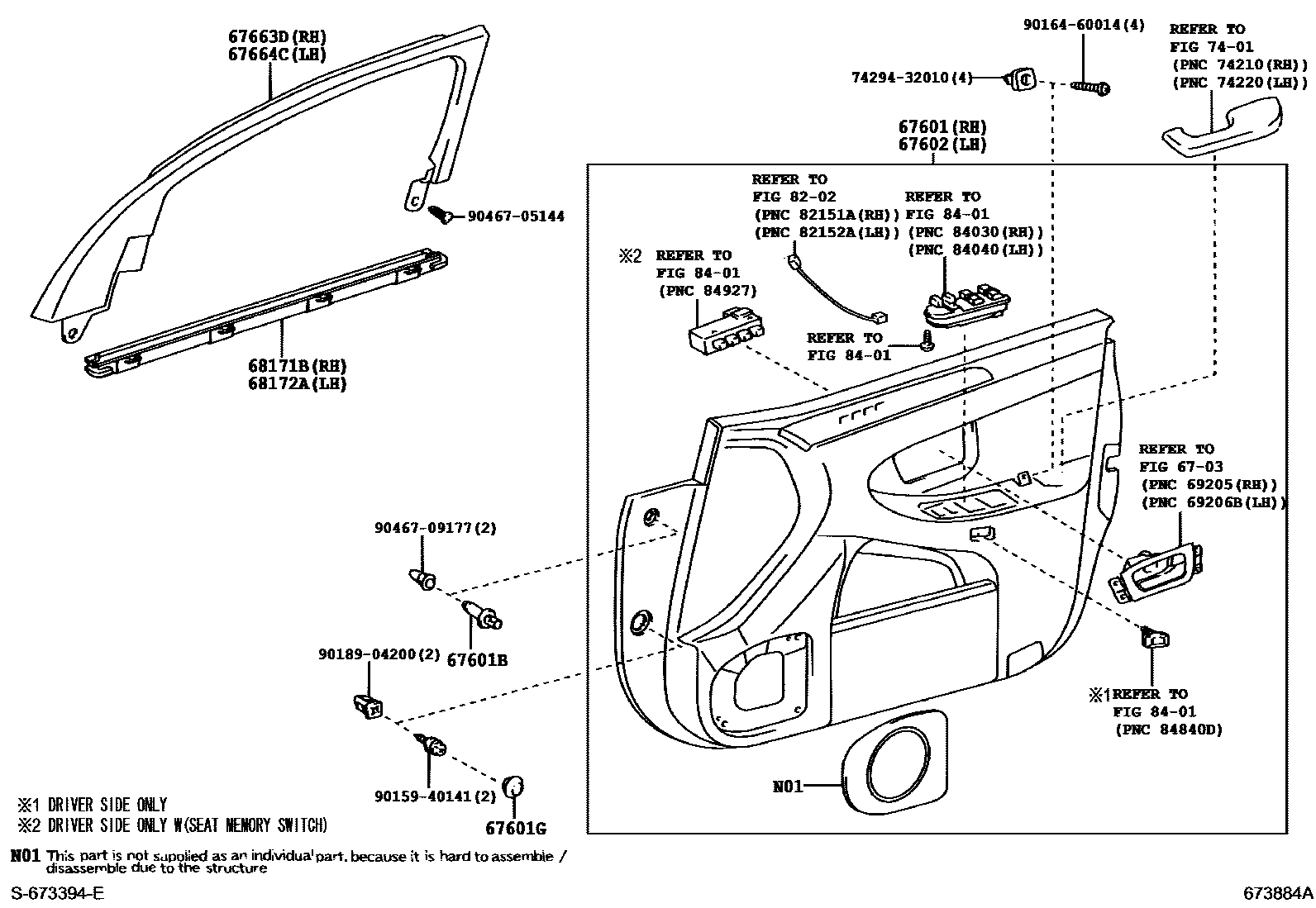

FRONT DOOR PANEL & GLASS

0001 1 0002 1

6703

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-0N010-A1iGRS18#..25,25ROY,ROYEX200502-200610

NEW IVORY,TRIM0#

sub67610-0N011

main67610-0N010-C1iGRS18#..25,25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67610-0N011

main67610-0N011-A0iGRS188..25200611-200802

NEW IVORY,TRIM0#

sub67610-0N012

main67610-0N011-C0iGRS188..25200611-200802

BLACK,TRIM2#

sub67610-0N012

main67610-0N012-A0iGRS188..25200803-200911

NEW IVORY,TRIM0#

main67610-0N012-C0iGRS188..25200803-200911

BLACK,TRIM2#

main67610-0N020-A1iGRS18#..25ROY,ROYEX200502-200610

SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#

sub67610-0N021

main67610-0N020-A1iGRS182..ROY200502-200610

NEW IVORY,TRIM0#

sub67610-0N021

main67610-0N020-C1iGRS18#..25ROY,ROYEX200502-200610

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub67610-0N021

main67610-0N020-C1iGRS18#..25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67610-0N021

main67610-0N021-A0iGRS182..ROY200611-200802

NEW IVORY,TRIM0#

sub67610-0N022

main67610-0N021-C0iGRS182..ROY200611-200802

BLACK,TRIM2#

sub67610-0N022

main67610-0N022-A0iGRS18#..25ROY,ROY,ROYEX200803-200911

NEW IVORY,TRIM0#

main67610-0N022-C0iGRS18#..25ROY,ROYEX200803-200911

BLACK,TRIM2#

main67610-0N022-C0iGRS182..ROY200803-200911

BLACK,TRIM20

main67610-0N030-A1iGRS182..ROYG200502-200610

NEW IVORY,TRIM0#

sub67610-0N031

main67610-0N030-C1iGRS182..ROYG200502-200610

BLACK,TRIM2#

sub67610-0N031

main67610-0N031-A0iGRS182..ROYG200611-200802

NEW IVORY,TRIM0#

sub67610-0N032

main67610-0N031-C0iGRS182..ROYG200611-200802

BLACK,TRIM2#

sub67610-0N032

main67610-0N032-A0iGRS182..ROYG200803-200911

NEW IVORY,TRIM0#

main67610-0N032-C0iGRS182..ROYG200803-200911

BLACK,TRIM2#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-C0001-A0iGRS18#200502-200911

IVORY,TRIM0#

main90467-C0001-C0iGRS18#200502-200911

BLACK,TRIM2#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-C1002-A0iGRS18#200502-200911

IVORY,TRIM0#

main90950-C1002-C0iGRS18#200502-200911

BLACK,TRIM2#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-0N010-A1iGRS18#..25,25ROY,ROYEX200502-200610

NEW IVORY,TRIM0#

sub67620-0N011

main67620-0N010-C1iGRS18#..25,25ROY,ROYEX200502-200610

BLACK,TRIM2#

sub67620-0N011

main67620-0N011-A0iGRS18#..25ROY,ROYEX200611-200802

NEW IVORY,TRIM0#

sub67620-0N012

main67620-0N011-C0iGRS18#..25ROY,ROYEX200611-200802

BLACK,TRIM2#

sub67620-0N012

main67620-0N012-A0iGRS188..25200803-200911

NEW IVORY,TRIM0#

main67620-0N012-C0iGRS188..25200803-200911

BLACK,TRIM2#

main67620-0N020-A1iGRS182..ROY200502-200610

NEW IVORY,TRIM0#

sub67620-0N021

main67620-0N020-C1iGRS182..ROY200502-200610

BLACK,TRIM2#

sub67620-0N021

main67620-0N021-A0iGRS182..ROY200611-200802

NEW IVORY,TRIM0#

sub67620-0N022

main67620-0N021-C0iGRS182..ROY200611-200710

BLACK,TRIM2#

sub67620-0N022

main67620-0N021-C0iGRS182..ROY200710-200802

BLACK,TRIM20

sub67620-0N022

main67620-0N022-A0iGRS182..ROY200803-200911

NEW IVORY,TRIM0#

main67620-0N022-C0iGRS182..ROY200803-200911

BLACK,TRIM20

main67620-0N030-A1iGRS182..ROYG200502-200610

NEW IVORY,TRIM0#

sub67620-0N031

main67620-0N030-C1iGRS182..ROYG200502-200610

BLACK,TRIM2#

sub67620-0N031

main67620-0N031-A0iGRS182..ROYG200611-200802

NEW IVORY,TRIM0#

sub67620-0N032

main67620-0N031-C0iGRS182..ROYG200611-200802

BLACK,TRIM2#

sub67620-0N032

main67620-0N032-A0iGRS182..ROYG200803-200911

NEW IVORY,TRIM0#

main67620-0N032-C0iGRS182..ROYG200803-200911

BLACK,TRIM2#

main67620-0N061-A0iGRS18#..25ROY,ROYEX200710-200802

IVORY,TRIM0#

sub67620-0N062

main67620-0N061-C0iGRS18#..25ROY,ROYEX200710-200802

BLACK,TRIM2#

sub67620-0N062

main67620-0N062-A0iGRS18#..25ROY,ROYEX200803-200911

IVORY,TRIM0#

main67620-0N062-C0iGRS18#..25ROY,ROYEX200803-200911

BLACK,TRIM2#

67663DGARNISH, DOOR FRAME, RH

main67663-0N010iGRS18#200502

67664CGARNISH, DOOR FRAME, LH

main67664-0N010iGRS18#200502

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-0N010iGRS18#200502

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-0N010iGRS18#200502

7401

8202

8401

7429432010PLATE, REAR DOOR ARMREST, NO.2

main74294-32010

9015940141

main90159-40141

9016460014

main90164-60014

9018904200

main90189-04200

9046705144

main90467-05144

9046709177

main90467-09177

18 parts on this diagram · 2 diagrams in section
