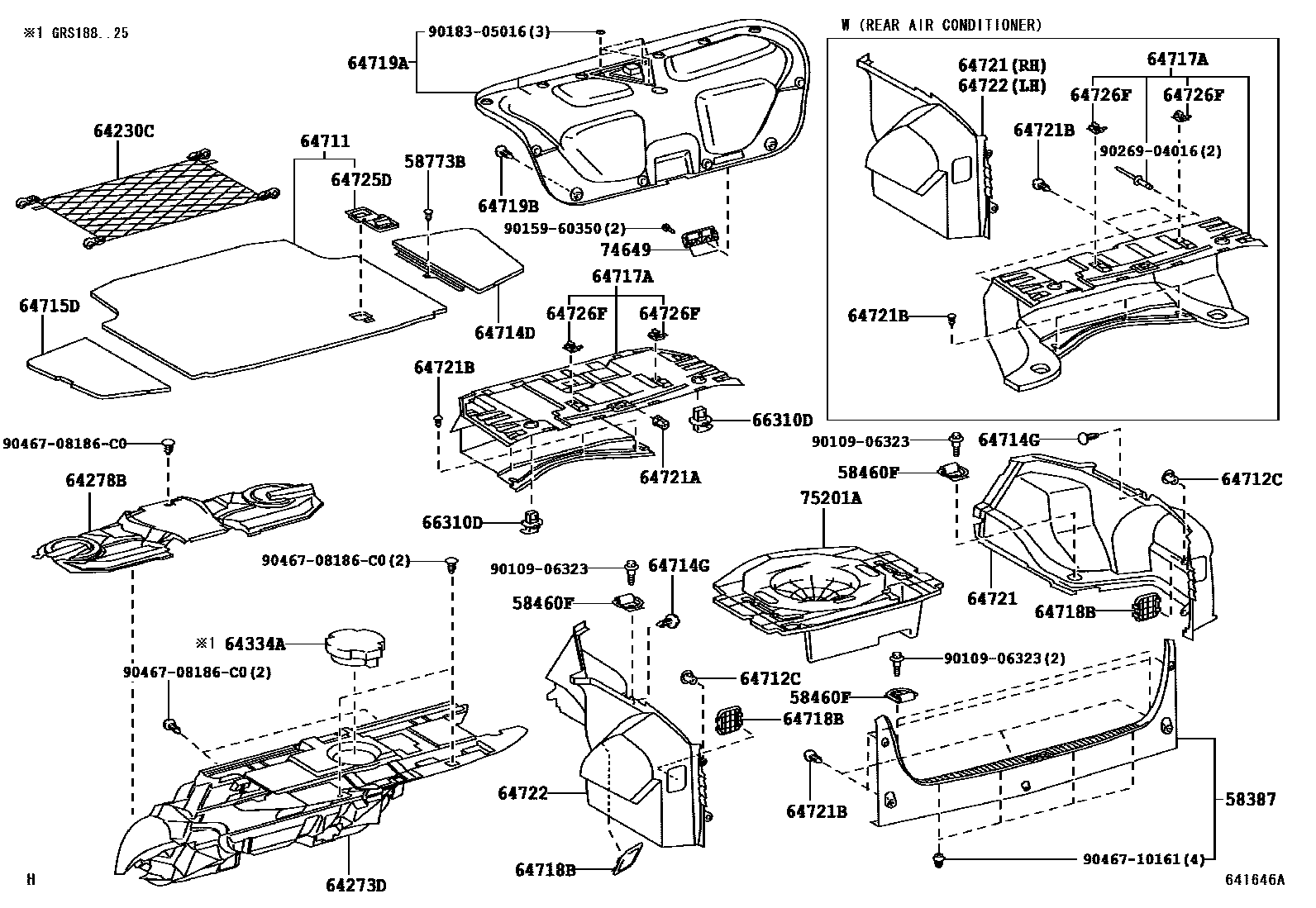

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-0N010-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

sub58387-0N011

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010iGRS18#200502

58773BCLIP(FOR LUGGAGE COMPARTMENT SIDE COVER)

main90467-08186-C0iGRS18#200502-200911

BLACK

sub90467-08186

64230CNET ASSY, ROOM PARTITION

main64230-0N010iGRS18#200502

64273DPAD, ROOM PARTITION, NO.1

main64273-0N010iGRS18#..25,25ROY,ROY,ROYEX200502-200911

main64273-0N020iGRS182..ROYG200502-200911

64278BPAD, ROOM PARTITION, NO.3

main64278-0N010iGRS18#200502

64334APAD, PACKAGE TRAY TRIM

main64334-0N010iGRS188..25200510

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64701-0N010-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

sub64701-0N011

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-12069iGRS18#200502

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-0N010-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

sub64714-0N011

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90467-08186-C0iGRS18#200502-200911

BLACK

sub90467-08186

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-0N010-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

sub64715-0N011

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-0N010-C0iGRS18#..25,25ROY,ROY,ROYEX200502-200911

BLACK,TRIM0#,2#

sub64075-0N011

main64075-0N020-C0iGRS182..ROYG200502-200911

BLACK,TRIM0#,2#

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33010iGRS18#200502

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0N010-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

sub64719-0N011

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iGRS18#200502-200911

BLACK

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-0N010-C0iGRS18#..25,25ROY,ROY,ROYEX200502-200911

BLACK,TRIM0#,2#

sub64721-0N011

main64721-0N020-C0iGRS182..ROYG200502-200911

BLACK,TRIM0#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05145iGRS18#..25,25ROY,ROY,ROYEX200502

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-08186-C0iGRS18#..25,25ROY,ROY,ROYEX200502-200911

BLACK

sub90467-08186

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-0N010-C0iGRS18#..25,25ROY,ROY,ROYEX200502-200911

BLACK,TRIM0#,2#

sub64722-0N011

main64722-0N020-C0iGRS182..ROYG200502-200911

BLACK,TRIM0#,2#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-50071iGRS18#200502

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64726-30060-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

66310DHOOK ASSY, ROPE

main66311-0N010iGRS18#200502

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C0iGRS18#200502-200911

BLACK

sub74649-51010

75201ABOX, TOOL

main75201-0N010-C0iGRS18#200502-200911

BLACK,TRIM0#,2#

sub75201-0N011

9010906323

main90109-06323

9015960350

main90159-60350

9018305016

main90183-05016

9026904016

main90269-04016

9046708186C0

main90467-08186C0

9046710161

main90467-10161

31 parts on this diagram · 2 diagrams in section
