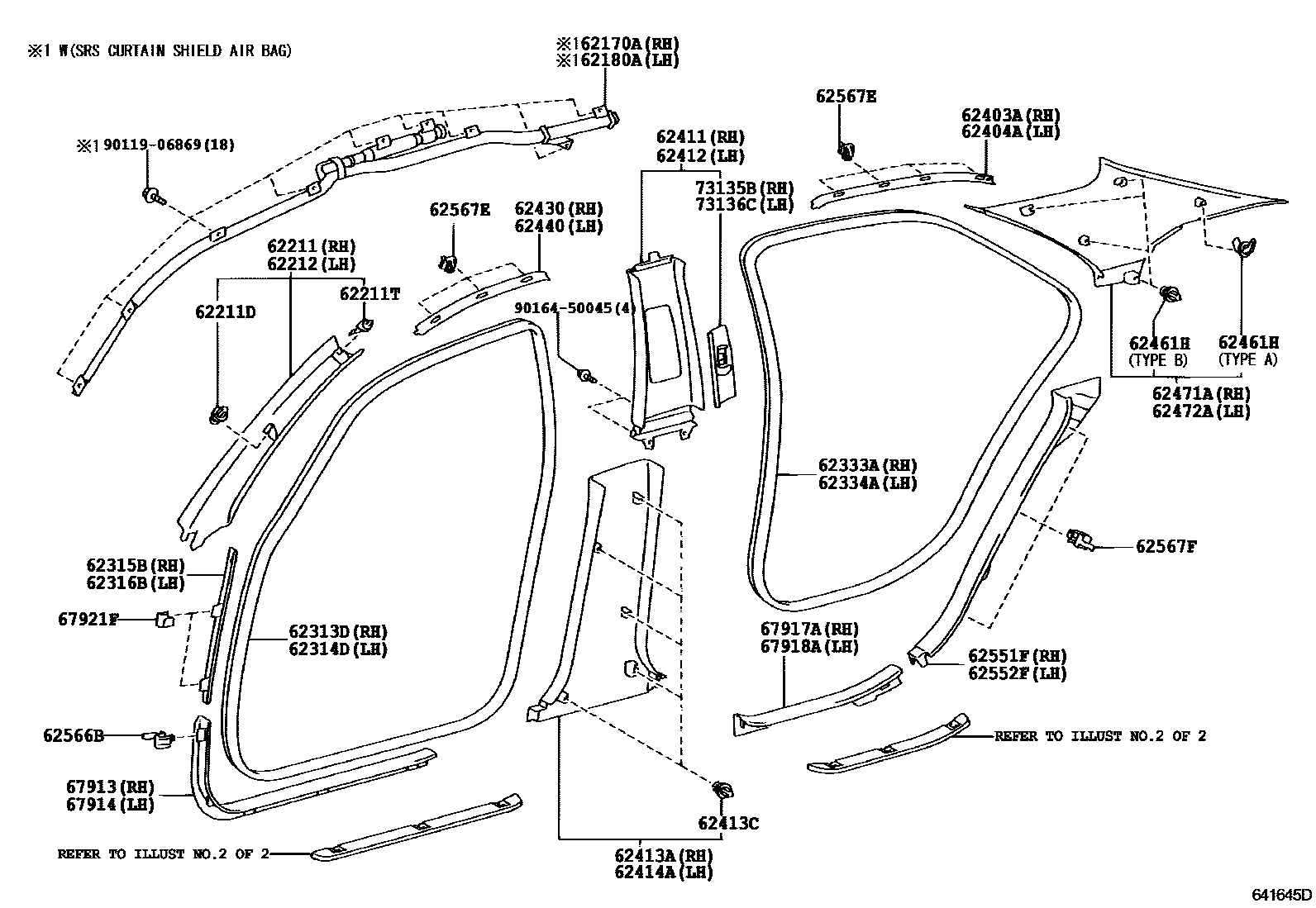

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1SCUFF PLATE

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30080iGRS18#..25ROY,ROYEX200502-200911

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30080iGRS182..ROY,ROYG200502-200911

62211GARNISH, FRONT PILLAR, RH

main62211-0N010-A0iGRS18#..25,25ROY,ROYEX200502-200610

IVORY,TRIM0#

sub62211-0N011

main62211-0N010-B0iGRS18#..25,25ROY,ROYEX200502-200610

LT.GRAY,TRIM2#

sub62211-0N011

main62211-0N011-A0iGRS188..25200611-200911

IVORY,TRIM0#

main62211-0N011-B0iGRS18#..25ROY,ROYEX200611-200911

LT.GRAY,TRIM2#

main62211-0N020-A1iGRS182..ROY,ROYG200502-200610

IVORY,TRIM0#

sub62211-0N021

main62211-0N020-B2iGRS182..ROY,ROYG200502-200610

LT.GRAY,TRIM2#

sub62211-0N021

main62211-0N021-A1iGRS18#..25ROY,ROYEX200611-200911

IVORY,TRIM0#

main62211-0N021-B2iGRS182..ROY,ROYG200611-200911

LT.GRAY,TRIM2#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main62217-20010iGRS182..ROY,ROYG¥250200502-200610

main90467-10161iGRS18#..25ROY,ROYEX¥90200502-200710

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08004iGRS18#¥110200502-200610

62212GARNISH, FRONT PILLAR, LH

main62212-0N010-A0iGRS18#..25,25ROY,ROYEX200502-200610

IVORY,TRIM0#

sub62212-0N011

main62212-0N010-B0iGRS18#..25,25ROY,ROYEX200502-200610

LT.GRAY,TRIM2#

sub62212-0N011

main62212-0N011-A0iGRS18#..25ROY,ROYEX200611-200911

IVORY,TRIM0#

main62212-0N011-B0iGRS18#..25ROY,ROYEX200611-200911

LT.GRAY,TRIM2#

main62212-0N020-A1iGRS182..ROY,ROYG200502-200610

IVORY,TRIM0#

sub62212-0N021

main62212-0N020-B2iGRS182..ROY,ROYG200502-200610

LT.GRAY,TRIM2#

sub62212-0N021

main62212-0N021-A1iGRS18#..25ROY,ROYEX200611-200911

IVORY,TRIM0#

main62212-0N021-B2iGRS182..ROY,ROYG200611-200911

LT.GRAY,TRIM2#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-0N010iGRS18#200502

62314DTRIM, FRONT DOOR OPENING, LH

main62314-0N010iGRS18#200502

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main62315-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main62316-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

62333ATRIM, REAR DOOR OPENING, RH

main62333-0N010iGRS18#200502

62334ATRIM, REAR DOOR OPENING, LH

main62334-0N010iGRS18#200502

62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH

main62450-0N010-A1iGRS18#200502-200911

IVORY,TRIM0#

main62450-0N010-B1iGRS18#200502-200911

LT.GRAY,TRIM2#

62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH

main62460-0N010-A1iGRS18#200502-200911

IVORY,TRIM0#

main62460-0N010-B1iGRS18#200502-200911

LT.GRAY,TRIM2#

62411GARNISH, CENTER PILLAR, RH

main62411-0N010-A1iGRS18#200502-200610

IVORY,TRIM0#

sub62411-0N011

main62411-0N010-B2iGRS18#200502-200610

LT.GRAY,TRIM2#

sub62411-0N011

main62411-0N011-A1iGRS18#200611-200911

IVORY,TRIM0#

main62411-0N011-B2iGRS18#200611-200911

LT.GRAY,TRIM2#

62412GARNISH, CENTER PILLAR, LH

main62412-0N010-A1iGRS18#200502-200610

IVORY,TRIM0#

sub62412-0N011

main62412-0N010-B2iGRS18#200502-200610

LT.GRAY,TRIM2#

sub62412-0N011

main62412-0N011-A1iGRS18#200611-200911

IVORY,TRIM0#

main62412-0N011-B2iGRS18#200611-200911

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub62413-0N011

main62413-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub62413-0N011

main62413-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main62413-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iGRS18#¥90200502-200610

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub62414-0N011

main62414-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub62414-0N011

main62414-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main62414-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-0N010-A1iGRS18#200502-200911

IVORY,TRIM0#

main62430-0N010-B1iGRS18#200502-200911

LT.GRAY,TRIM2#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-0N010-A1iGRS18#200502-200911

IVORY,TRIM0#

main62440-0N010-B1iGRS18#200502-200911

LT.GRAY,TRIM2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09212iGRS18#¥100200502-200610

TYPE A

main90467-10188iGRS18#¥80200502-200610

TYPE B

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0N010-A0iGRS18#..25,25ROY,ROYEX200502-200610

IVORY,TRIM0#

sub62471-0N011

main62471-0N010-B0iGRS18#..25,25ROY,ROYEX200502-200610

LT.GRAY,TRIM2#

sub62471-0N011

main62471-0N011-A0iGRS18#..25ROY,ROYEX200611-200911

IVORY,TRIM0#

main62471-0N011-B0iGRS18#..25ROY,ROYEX200611-200911

LT.GRAY,TRIM2#

main62471-0N020-A1iGRS182..ROY,ROYG200502-200610

IVORY,TRIM0#

sub62471-0N021

main62471-0N020-B1iGRS182..ROY,ROYG200502-200610

LT.GRAY,TRIM2#

sub62471-0N021

main62471-0N021-A1iGRS182..ROY,ROYG200611-200911

IVORY,TRIM0#

main62471-0N021-B1iGRS18#..25ROY,ROYEX200611-200911

LT.GRAY,TRIM2#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0N010-A0iGRS18#..25,25ROY,ROYEX200502-200610

IVORY,TRIM0#

sub62472-0N011

main62472-0N010-B0iGRS18#..25,25ROY,ROYEX200502-200610

LT.GRAY,TRIM2#

sub62472-0N011

main62472-0N011-A0iGRS188..25200611-200911

IVORY,TRIM0#

main62472-0N011-B0iGRS18#..25ROY,ROYEX200611-200911

LT.GRAY,TRIM2#

main62472-0N020-A1iGRS182..ROY,ROYG200502-200610

IVORY,TRIM0#

sub62472-0N021

main62472-0N020-B1iGRS182..ROY,ROYG200502-200610

LT.GRAY,TRIM2#

sub62472-0N021

main62472-0N021-A1iGRS182..ROY,ROYG200611-200911

IVORY,TRIM0#

main62472-0N021-B1iGRS18#..25ROY,ROYEX200611-200911

LT.GRAY,TRIM2#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub62551-0N011

main62551-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub62551-0N011

main62551-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main62551-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub62552-0N011

main62552-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub62552-0N011

main62552-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main62552-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010iGRS18#¥190200502

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iGRS18#¥190200502

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iGRS18#¥190200502

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub67913-0N011

main67913-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub67913-0N011

main67913-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main67913-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub67914-0N011

main67914-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub67914-0N011

main67914-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main67914-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub67917-0N011

main67917-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub67917-0N011

main67917-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main67917-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0N010-A0iGRS18#200502-200610

IVORY,TRIM0#

sub67918-0N011

main67918-0N010-C0iGRS18#200502-200610

BLACK,TRIM2#

sub67918-0N011

main67918-0N011-A0iGRS18#200611-200911

IVORY,TRIM0#

main67918-0N011-C0iGRS18#200611-200911

BLACK,TRIM2#

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-30010iGRS18#¥230200502

73135BCOVER, SHOULDER BELT ANCHOR, RH

main73023-30010-A2iGRS18#200502-200911

IVORY,TRIM0#

sub73023-30010¥2,140

main73023-30010-B2iGRS18#200502-200911

LT.GRAY,TRIM2#

sub73023-30010¥2,140

73136CCOVER, SHOULDER BELT ANCHOR, LH

main73024-30010-A2iGRS18#200502-200911

IVORY,TRIM0#

sub73024-30010¥2,140

main73024-30010-B2iGRS18#200502-200911

LT.GRAY,TRIM2#

sub73024-30010¥2,140

9011906869

main90119-06869¥60

9016450045

main90164-50045¥110

38 parts on this diagram · 2 diagrams in section
