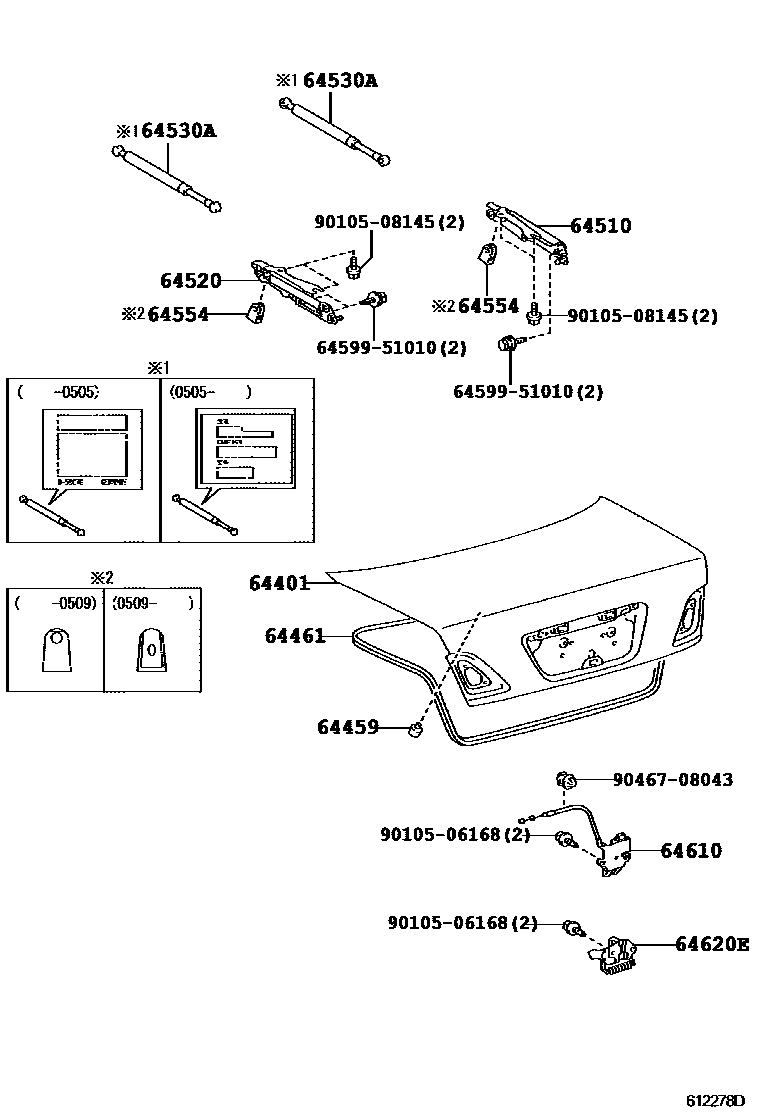

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0N010iGRS18#..25,25ROY,ROYEX200502-200911

main64401-0N020iGRS182..ROY,ROYG200502-200911

main64401-0N030iGRS188..25ROY200902-200911

08 MEMORIAL PACKAGE

main64401-0N060iGRS182..ROY200710-200911

L PACKAGE

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iGRS18#200502

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0N010iGRS18#200502

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30410iGRS18#200502-200911

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30220iGRS18#200502-200911

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W060×2iGRS182200502-200505

sub64530-0W061

main64530-0W110×2iGRS18#200505-200704

main64530-0W111×2iGRS18#200705-200708

main64530-0W112×2iGRS18#200709

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-30030×2iGRS18#200509-200902

main64554-30031×2iGRS18#200903

main64554-51010×2iGRS182200502-200509

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0N010iGRS18#200502

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-51010iGRS18#200502

6459951010BOLT, LUGGAGE DOOR HINGE

main64599-51010

9010506168

main90105-06168

9010508145

main90105-08145

9046708043

main90467-08043

13 parts on this diagram · 1 diagram in section
