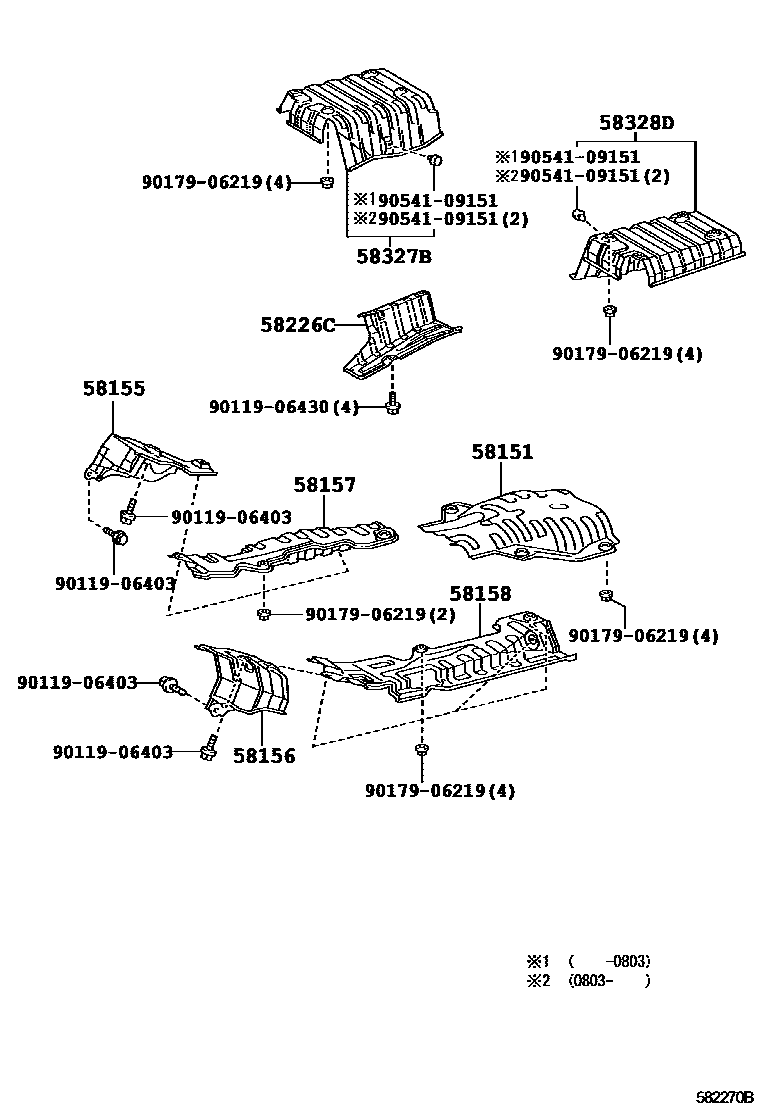

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iGRS18#200502

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22100iGRS18#200510

main58155-30040iGRS182200502-200509

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRS18#200502

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iGRS18#200502

sub58157-30072

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGRS18#200502

sub58158-30062

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-30030iGRS18#200502

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30052iGRS18#200502-200802

main58327-30053iGRS18#200803

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30032iGRS182200502-200508

sub58328-30033

main58328-30033iGRS18#200509-200802

main58328-30034iGRS18#200803

9011906403

main90119-06403

9011906430

main90119-06430

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 1 diagram in section
