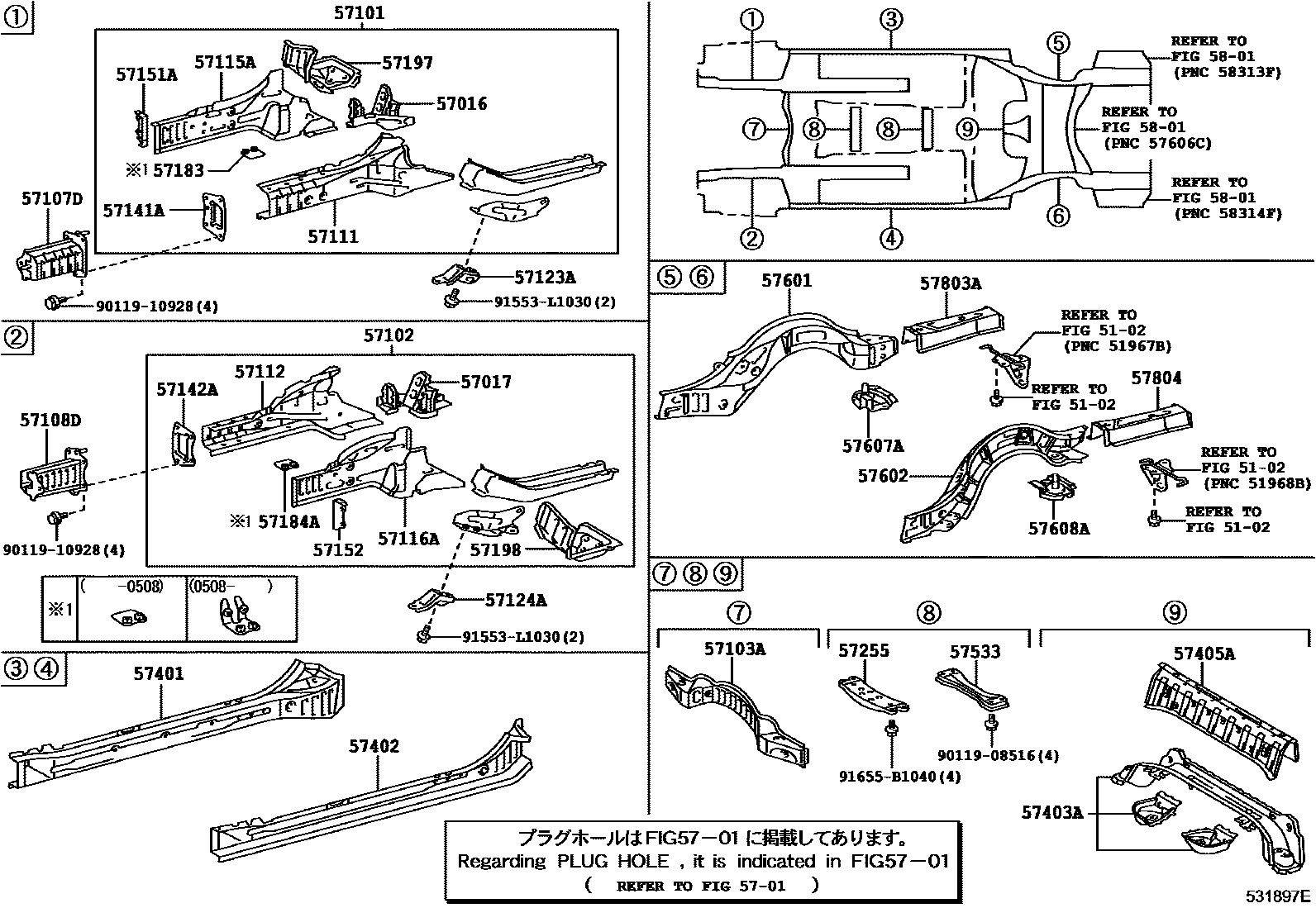

FLOOR SIDE MEMBER

5102

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0N010iGRS182200502-200507

sub57016-0N020

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0N010iGRS182200502-200507

sub57017-0N020

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0N010iGRS182200502-200507

sub57101-0N011

main57101-0N011iGRS18#200508

sub57101-0N020

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0N010iGRS182200502-200507

sub57102-0N011

main57102-0N011iGRS18#200508

sub57102-0N020

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-0N010iGRS18#200502-200911

sub57103-0N011

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30061iGRS18#200502-200911

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30080iGRS18#200502

sub57108-30081

57111MEMBER, FRONT SIDE, RH

main57111-0N010iGRS182200502-200507

sub57111-0N011

main57111-0N011iGRS18#200508

57112MEMBER, FRONT SIDE, LH

main57112-0N010iGRS182200502-200507

sub57112-0N011

main57112-0N011iGRS18#200508

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-0N010iGRS182200502-200507

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-0N010iGRS182200502-200507

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-0N010iGRS18#200502-200711

sub57305-0N011

main57305-0N011iGRS18#200712

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-0N010iGRS18#200502-200711

sub57306-0N011

main57306-0N011iGRS18#200712

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGRS182200502-200507

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRS182200502-200507

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRS182200502-200507

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRS182200502-200507

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30020iGRS182200502-200507

main57183-30030iGRS18#200508

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57183-30020iGRS182200502-200508

main57184-30020iGRS18#200508

57197BOX, TORQUE, FRONT RH

main57197-0N010iGRS182200502-200507

57198BOX, TORQUE, FRONT LH

main57198-0N010iGRS182200502-200507

57255MEMBER, ENGINE REAR MOUNTING

main57255-30080iGRS182200502

main57255-30130iGRS188200510

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-0N010iGRS18#200502-200911

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-0N010iGRS18#200502-200911

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57809-0N010iGRS18#200502-200911

sub57809-0N020

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-0N010iGRS18#200502

sub57405-0N011

57533BRACE, FRONT FLOOR, CENTER

main57533-0N010iGRS18#200502-200711

sub57533-0N011

main57533-0N011iGRS18#200712

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0N903iGRS18#200502

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0N902iGRS18#200502

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0N010iGRS182200502-200508

sub57607-0N011

main57607-0N011iGRS18#200509

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-0N010iGRS182200502-200508

sub57608-0N011

main57608-0N011iGRS18#200509-200705

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-0N010iGRS18#200502

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-0N010iGRS18#200502-200705

sub57804-0N011

main57804-0N011iGRS18#200706

5801

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040

40 parts on this diagram · 1 diagram in section
