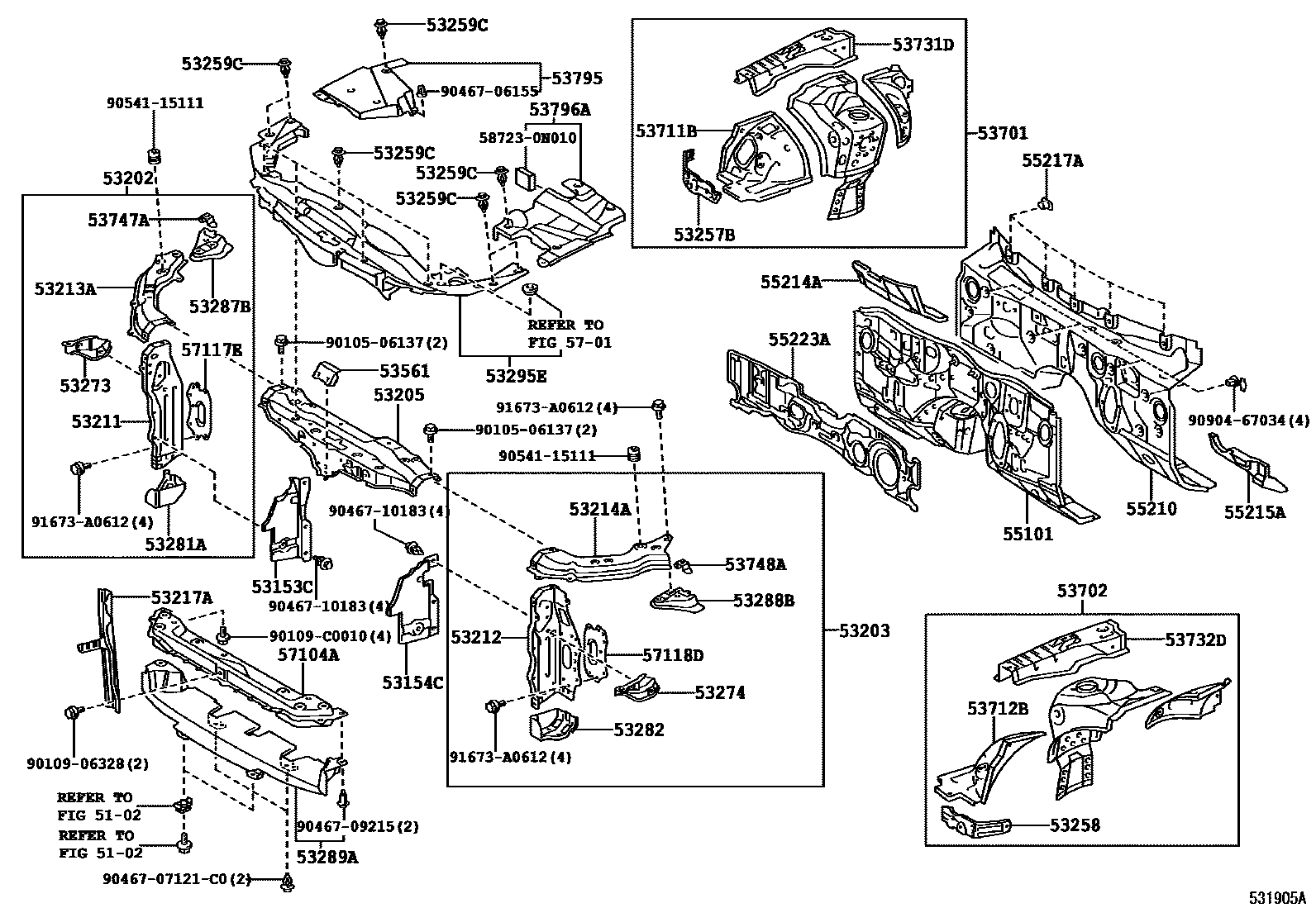

FRONT FENDER APRON & DASH PANEL
5102
53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53295ESEAL, COOL AIR INTAKE DUCT
53561GUIDE, HOOD AUXILIARY CATCH HOOK
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-0N011
53702APRON SUB-ASSY, FRONT FENDER, LH
sub53702-0N011
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-0N020
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53795COVER, HEADLAMP WIRE HARNESS HOLE, RH
53796ACOVER, ENGINE ROOM SIDE, LH
55210INSULATOR ASSY, DASH PANEL
sub55210-0N011
55214APAD, DASH PANEL INSULATOR, NO.2
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
sub55223-0N011
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
587230N010PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
main58723-0N010
9010506137
9010906328
90109C0010
main90109-C0010
9046706155
9046707121C0
main90467-07121C0
9046709215
9046710183
9054115111
9090467034
91673A0612
54 parts on this diagram · 1 diagram in section
